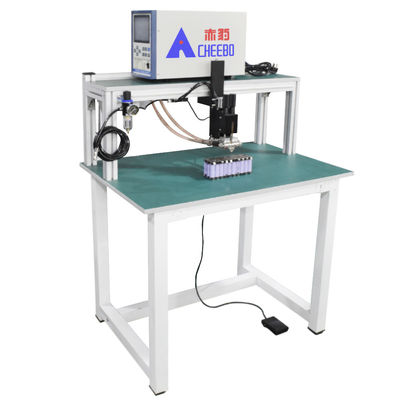

Transistor Battery Tab Spot Welding Machine 18650/21700 Battery Pack

Transistor Battery Tab Spot Welding Machine 18650/21700 Battery Pack


Equipment introduction



CHEEBO lithium battery spot welding machine adopts self-developed precision welding head and precise pressure adjustment and control.


CBLQ-5A battery nickel welding machine does not need welding transformer, small size, light weight, beautiful.


It can be used for bump spot welding and needle spot welding.


18650 Battery spot welder has three control modes: constant current, constant voltage, constant current and constant voltage combination mode.


Built-in pre-inspection function, which can be used to judge whether the workpiece is electrified before welding.


The welding current of lithium battery spot welder can be switched quickly and effectively by transistor without transformer.


The welding power supply is controlled by switch mode, which can realize small and efficient welding and high output.


The welding current of the power source rises quickly, and the high quality welding can be realized in a short time.


The spot welding machine of lithium ion battery group increases the function of connection point and effectively improves the production efficiency.


Independent research and development of precision welding head, precise pressure adjustment control.


Controlled by microcomputer technology, it can dynamically monitor the waveforms of welding current, voltage, power and resistance in real time.


5.7inch HD LED display screen, convenient and intuitive adjustment of equipment parameters, and can store multiple programs in advance.


There are three kinds of welding methods: constant voltage, constant current and constant voltage current combination.



Application scope of the product



Power lithium-ion battery module welding, 3C lithium-ion battery pack welding, Ni-MH battery pack welding, hardware welding, electronic and



electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry welding, copper products welding, aluminum products



welding. It is also suitable for product maintenance and proofing.



  1. Welding case



Transistor Battery Tab Spot Welding Machine 18650/21700 Battery Pack 0 Transistor Battery Tab Spot Welding Machine 18650/21700 Battery Pack 1 Transistor Battery Tab Spot Welding Machine 18650/21700 Battery Pack 2



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding





Function Introduction



 1. Transistor power supply

The welding current rises very fast, achieving high quality welding in a short time. The waveform of welding current, voltage and resistance is dynamically and real-time detected. Built-in pre-check function, welding work can be judged before welding power.



Transistor Battery Tab Spot Welding Machine 18650/21700 Battery Pack 3

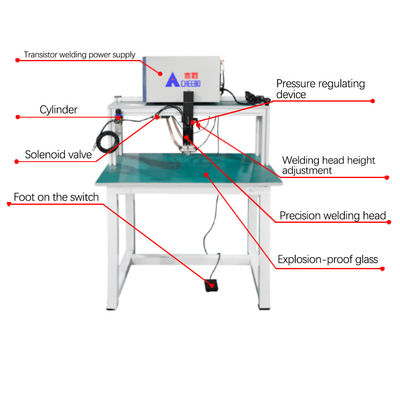

 2. Precision resistance welding head
Horizontal welding structure, double linear guide design left and right pressure can be adjusted according to the welding thickness.
Built-in pressure sensor, precise control to apply stable pressure.



Transistor Battery Tab Spot Welding Machine 18650/21700 Battery Pack 4



 3. Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent the damage caused to the desktop during welding. At the same time, it can increase the fluency of welding and increase the welding efficiency.



Transistor Battery Tab Spot Welding Machine 18650/21700 Battery Pack 5



Equipment workflow



Power on -- check whether the WELED switch is turned on -- place the product to be welded on the desktop -- Step on the foot pedal -- push down



the welding head -- spot welding completed -- return the welding head



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
