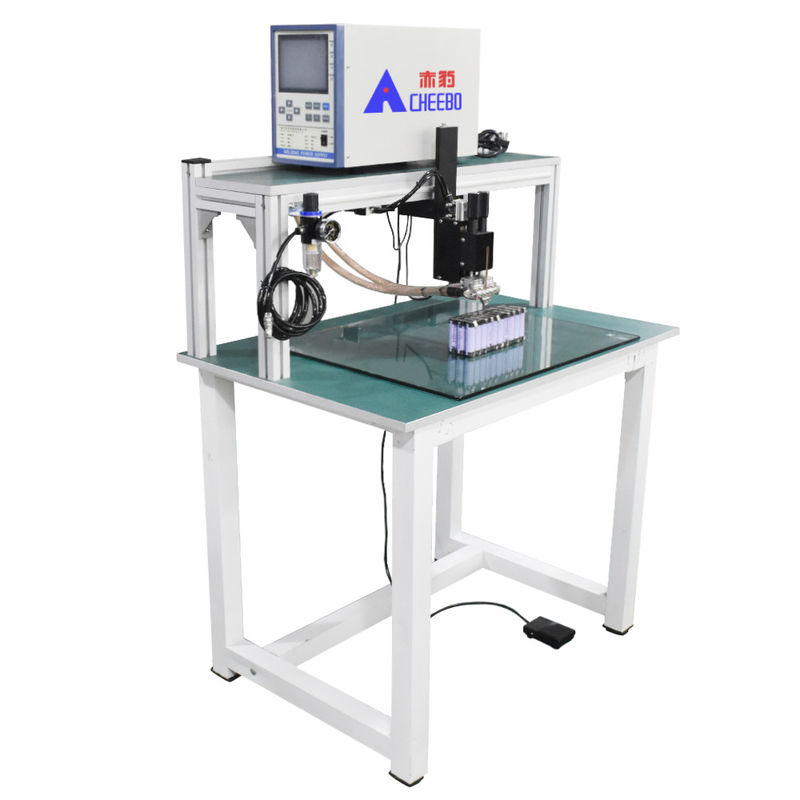

Battery Tab Spot Welding Machine High Precision Transistor Spot Welder

Battery Tab Spot Welding Machine High Precision Transistor Spot Welder

  • Frame Material
    Stainless Steel
  • Welding Power
    High Frequency
  • Product Name
    Transistor Pneumatic Lithium Battery Spot Welder
  • Welding Time
    0.00-9.99ms
  • Dimension
    60CM*90CM*130CM
  • Welding Weight
    60KG
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Battery Tab Spot Welding Machine High Precision Transistor Spot Welder

Battery Tab Spot Welding Machine High Precision Transistor Spot Welder


Application scope of the product



Power lithium-ion battery module welding, 3C lithium-ion battery pack welding, Ni-MH battery pack welding, hardware welding, electronic and



electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry welding, copper products welding, aluminum products



welding. It is also suitable for product maintenance and proofing.



Equipment introduction



● CHEEBO lithium battery spot welder adopts self-developed precision welding head with precise pressure adjustment and control.


● CBLQ-5A battery nickel welder does not need welding transformer, small size, light weight and beautiful.


● Both bump spot welding and tip spot welding can be applied.


● The 18650 battery spot welder has three control modes: constant current, constant voltage, constant current and constant voltage combination mode.


● Built-in pre-test function can be used to determine whether the workpiece is energized before welding.


● The welding current of lithium battery spot welder can be switched quickly and efficiently by transistor without transformer.


● The welding power supply is controlled by a switching method for small and efficient welds with high output.


● The power supply welding current rises quickly for high quality welding in a short time.


● The lithium-ion battery pack spot welder has added a connection point function, effectively increasing production efficiency.


● Independently developed precision welding head with precise pressure adjustment control.


● Microcomputer technology control, dynamic real-time monitoring of waveform of welding current, voltage, power and resistance.


● 5.7" HD LED display, easy and intuitive adjustment of equipment parameters, multiple programs can be stored in advance.


● There are three welding modes: constant voltage, constant current and constant voltage current combination.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Application case



1.Energy storage battery pack     2.Electric bicycle battery pack      3.Power tool battery pack



Battery Tab Spot Welding Machine High Precision Transistor Spot Welder 0 Battery Tab Spot Welding Machine High Precision Transistor Spot Welder 1 Battery Tab Spot Welding Machine High Precision Transistor Spot Welder 2



Function Introduction



 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Battery Tab Spot Welding Machine High Precision Transistor Spot Welder 3

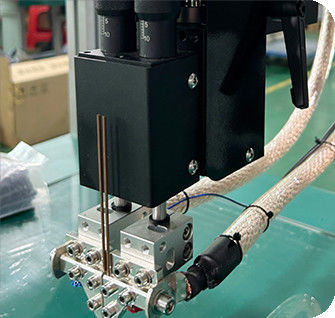

 2. Precision resistance welding head
Horizontal welding structure, double linear guide design left and right pressure can be adjusted according to the welding thickness.
Built-in pressure sensor, precise control to apply stable pressure.

Battery Tab Spot Welding Machine High Precision Transistor Spot Welder 4



 3. Thick cable
Thick pure copper cable, low resistance wire, large carrying capacity, thick enough, welding no heat current no loss transmitted to the welding head, to ensure welding current.



Battery Tab Spot Welding Machine High Precision Transistor Spot Welder 5





FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
