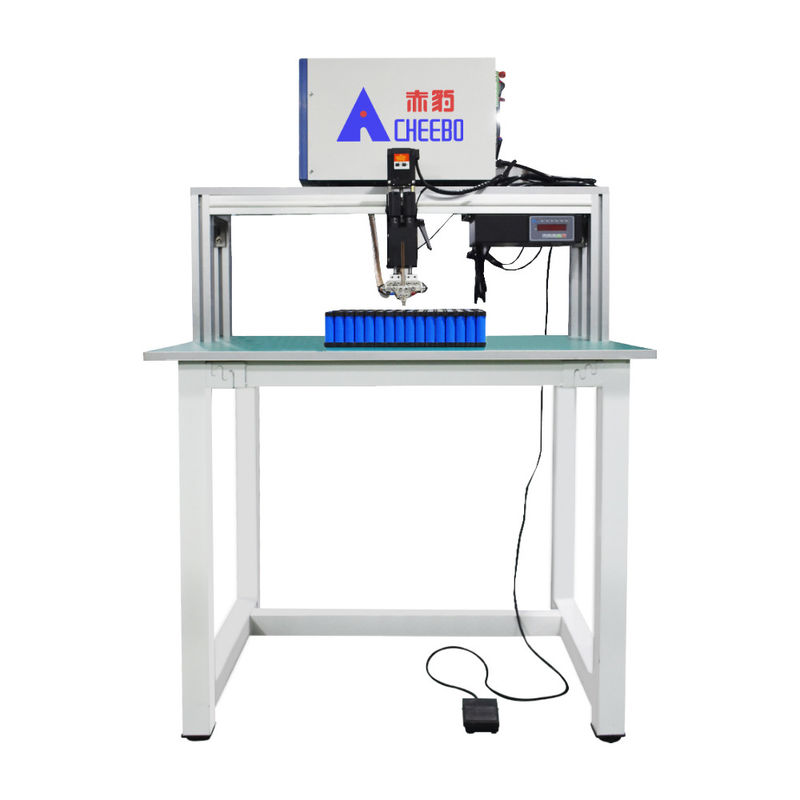

Bench Type Semi Automatic DC Battery Tab Spot Welding Machine Cell Use

Bench Type Semi Automatic DC Battery Tab Spot Welding Machine Cell Use

  • High Light

    DC Battery Tab Spot Welding Machine

    ,

    Bench Type Tab Spot Welding Machine

    ,

    Bench Type Battery Cell Welding Machine

  • Drive Mode
    Motor Electric
  • Current Output Mode
    DC
  • Output Current
    10000A(Max.)
  • Product Name
    Transistor Electric Lithium Battery Spot Welder
  • Cable Length
    600MM
  • Main Components
    Stepper Motor/control Box
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Bench Type Semi Automatic DC Battery Tab Spot Welding Machine Cell Use

Bench Type Semi Automatic DC Battery Tab Spot Welding Machine Cell Use


Equipment introduction



● CHEEBO lithium battery spot welder adopts self-developed pure electric cylinder-less system, low noise and stable pressure.


● Motor driven, control box precision control, three adjustable modes of single spot/semi-automatic/automatic. The welding method of the battery pack can be adjusted according to the needs.


● The battery welding machine adopts CHEEBO's self-developed precision welding head, with precise pressure adjustment control.


● The welding power control adopts the switch switching method, which can achieve small, high efficiency and high outputs welding.


● CBLD-5A battery welder power supply adopts transistor welding power supply, with fast current rise, which can achieve high quality welding in a short time.


● Independently developed precision welder head with precise pressure adjustment and control.


● Microcomputer technology control, real-time monitoring of welding voltage, current and resistance waveform.


● 5.7" HD LED display, easy and intuitive adjustment of equipment parameters, multiple programs can be pre-stored.


● There are three welding modes: constant voltage, constant current and combination of constant voltage and constant current.



Debug project
  1.  Welding pressure.
  2.  Power data.
  3.  Adjustment of spot welding stroke.
  4.  Air pressure regulation.
  5.  Adjust the protruding length of the welding needle
Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.



Bench Type Semi Automatic DC Battery Tab Spot Welding Machine Cell Use 0

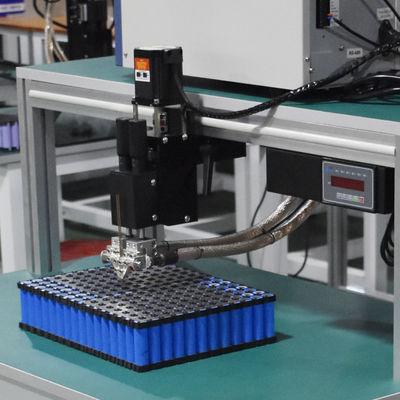

 2. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



Bench Type Semi Automatic DC Battery Tab Spot Welding Machine Cell Use 1



 3. Electric control

No additional air source, low noise, fast welding speed, stable pressure.



Bench Type Semi Automatic DC Battery Tab Spot Welding Machine Cell Use 2



  1. Welding case



Bench Type Semi Automatic DC Battery Tab Spot Welding Machine Cell Use 3 Bench Type Semi Automatic DC Battery Tab Spot Welding Machine Cell Use 4 Bench Type Semi Automatic DC Battery Tab Spot Welding Machine Cell Use 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
