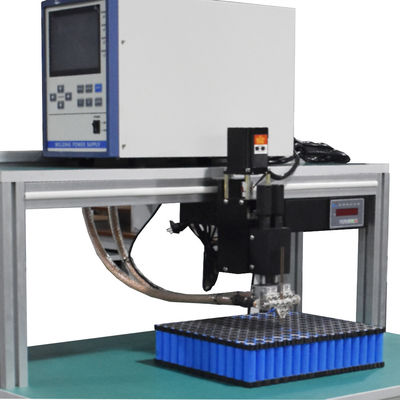

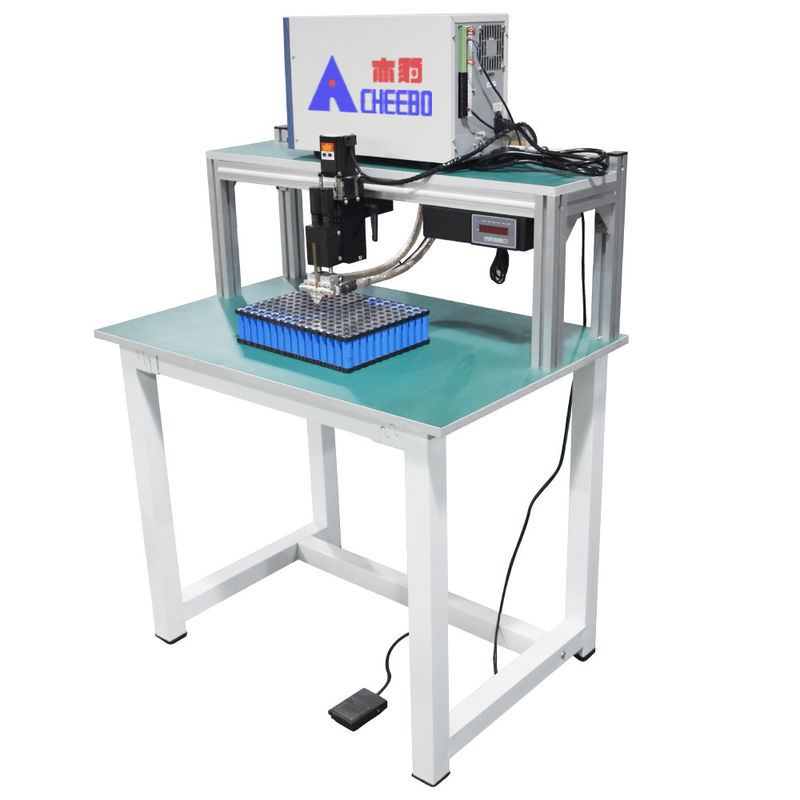

High Precision Lithium Battery Spot Welding Machine Electric Welding

High Precision Lithium Battery Spot Welding Machine Electric Welding

  • High Light

    Electric Lithium Battery Spot Welding Machine

    ,

    High Precision Battery Spot Welding Machine

    ,

    Electric Tab Spot Welder

  • Welding Material
    Nickel Sheet
  • Drive Mode
    Electric/pneumatic(choosable)
  • Current Output Mode
    DC
  • Welding Pressure
    Adjustable
  • Display Screen
    HD LCD Screen
  • Product Name
    Transistor Electric Lithium Battery Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

High Precision Lithium Battery Spot Welding Machine Electric Welding

High Precision Lithium Battery Spot Welding Machine Electric Welding


Equipment introduction



● Cheebo lithium battery spot welding machine adopts self-developed precision welding head with accurate pressure adjustment.



● CBLQ-5A battery nickel welding machine does not need to welding transformer, small size, light weight, beautiful.



● According to the welding requirements, convex point welding and pointed needle welding can be selected.



● 18650 battery spot welding machine has three control modes: constant current, constant pressure, constant current and constant

pressure combination mode.



● The built-in precheck function can be used to determine whether the workpiece is energized before welding.



● The welding current of the lithium battery spot welding machine can be quickly switched through the transistor, without a transformer.



● Welding power supply is controlled by switch, which can realize small and efficient welding with high yield.



● Power supply welding current rises quickly, and high-quality welding can be realized in a short time.



● Lithium-ion battery pack spot welding machine increases the function of continuous spot welding, and effectively improves the



production efficiency.



● Independent research and development of precision welding head, accurate pressure regulation and control.



● Microcomputer technology control, dynamic real-time monitoring of welding current, voltage, power and resistance waveform.



● 5.7-inch hd LED display, equipment parameters adjustment intuitive, can store multiple programs in advance.



● There are three combinations of constant voltage, constant current and constant voltage current.

Device action flow description

Power on - Check if the WELED switch is turned on - Turn on the motion control system power - Welding head action - Find the origin position -



Place the product that needs to be welded on the desktop - Step on the foot pedal - Welding head pressing down - Welding head completed -



Welding head returning to its original position



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Transistor welding power supply

Welding energy output is the most stable power source, displaying real-time welding voltage and current waveforms. The current rises quickly and can achieve high-quality welding in a short period of time.



High Precision Lithium Battery Spot Welding Machine Electric Welding 0



 2. Electric control

No additional air source, low noise, fast welding speed, stable pressure.



High Precision Lithium Battery Spot Welding Machine Electric Welding 1



 3. Thick cable
Thick pure copper cable, low resistance wire, large carrying capacity, thick enough, welding no heat current no loss transmitted to the welding head, to ensure welding current.



High Precision Lithium Battery Spot Welding Machine Electric Welding 2



  1. Welding case



High Precision Lithium Battery Spot Welding Machine Electric Welding 3 High Precision Lithium Battery Spot Welding Machine Electric Welding 4 High Precision Lithium Battery Spot Welding Machine Electric Welding 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
