Battery Tab Spot Welding Machine Electric Transistor Power Spot Welder

Battery Tab Spot Welding Machine Electric Transistor Power Spot Welder

  • High Light

    21700 Battery Tab Spot Welding Machine

    ,

    High Precision Lithium Spot Welding Machine

    ,

    21700 Lithium Spot Welding Machine

  • Product Name
    Transistor Electric Lithium Battery Spot Welding Machine
  • Size
    60CM*90CM*130CM
  • Welding Power Supply
    Transistor
  • Welding Method
    Double Point Horizontal Welding
  • Frame Material
    Stainless Steel
  • Screen Size
    5.7 Inches
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

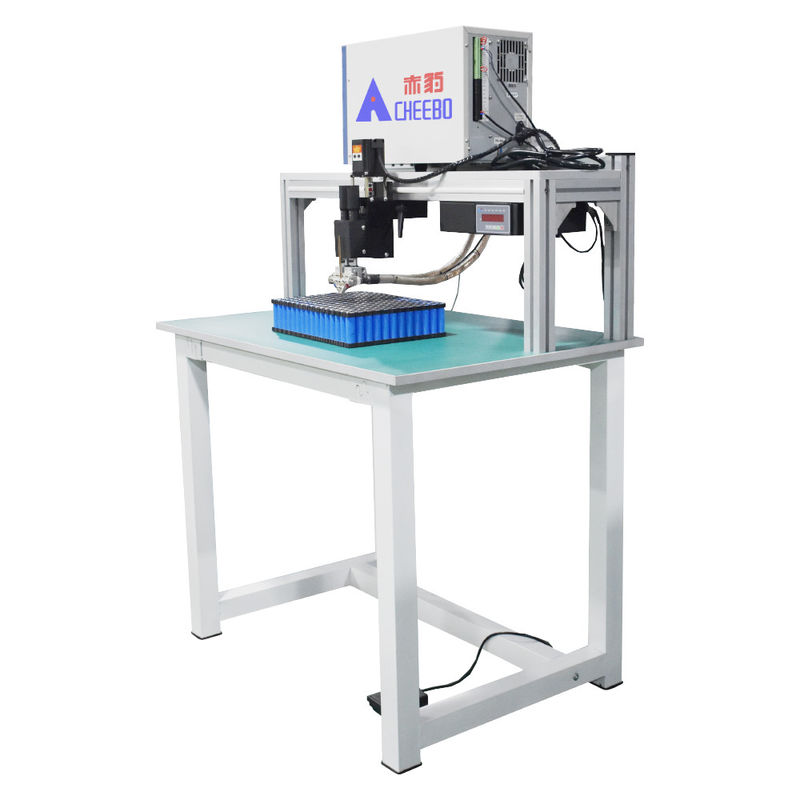

Battery Tab Spot Welding Machine Electric Transistor Power Spot Welder

Battery Tab Spot Welding Machine Electric Transistor Power Spot Welder



Equipment introduction



● CHEEBO lithium battery point welding machine adopts independently developed precision welding heads, and the pressure is accurately adjusted.


● CBLQ-5A battery nickel welding machine does not require welding transformers, with small size, light weight, and beautiful.


● According to the welding requirements, you can choose two types of welding methods: convex point welding and pointed needle welding.


● The 18650 battery point welding machine has three control methods: constant current, constant voltage, constant current constant pressure combination method.


● The built -in pre -inspection function can be used to determine whether the workpiece is powered on before welding.


● The welding current of the lithium battery point welding machine can be quickly switched through the transistor without a transformer.


● Welding power supply is controlled by switching, which can achieve small high -efficiency welding and high finished product rate.


● Power welding current rises quickly, and high -quality welding can be achieved in a short period of time.


● Lithium -ion battery pack point welding machine increases continuous welding function to effectively improve production efficiency.


● Independent development of precision welding heads, accurate pressure adjustment control.


● Micro -computer technology control, dynamically monitor welding current, voltage, power and resistance waveform.


● 5.7 -inch high -definition LED display, the equipment parameters are adjusted intuitive, and multiple programs can be stored in advance.


● The welding method has three types: constant voltage, constant current, and constant voltage current.



Applicable scope



Power lithium-ion battery module assembly and welding, 3C lithium-ion battery pack welding and assembly, nickel-metal hydride battery pack spot



welding, hardware welding, electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper



products welding, aluminum products welding.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



Battery Tab Spot Welding Machine Electric Transistor Power Spot Welder 0 Battery Tab Spot Welding Machine Electric Transistor Power Spot Welder 1 Battery Tab Spot Welding Machine Electric Transistor Power Spot Welder 2



Function Introduction



 1. Electric control

No additional air source, low noise, fast welding speed, stable pressure.



Battery Tab Spot Welding Machine Electric Transistor Power Spot Welder 3



 2. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. It can weld various types of cells with different heights.



Battery Tab Spot Welding Machine Electric Transistor Power Spot Welder 4

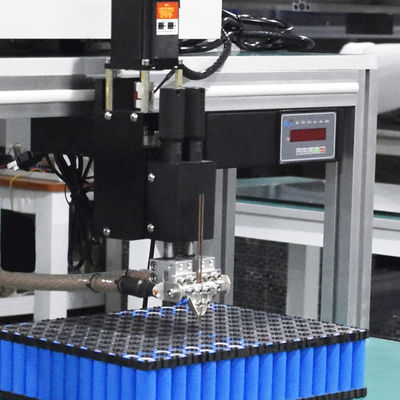

 3. Electric precision welding head

Motor driven welding, no need for external solenoid valves and cylinders, low noise. Vertical is a welded structure with dual linear guide rail design, and the left and right pressures can be adjusted separately. Built in pressure sensor for precise control and stable pressure applications.



Battery Tab Spot Welding Machine Electric Transistor Power Spot Welder 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
