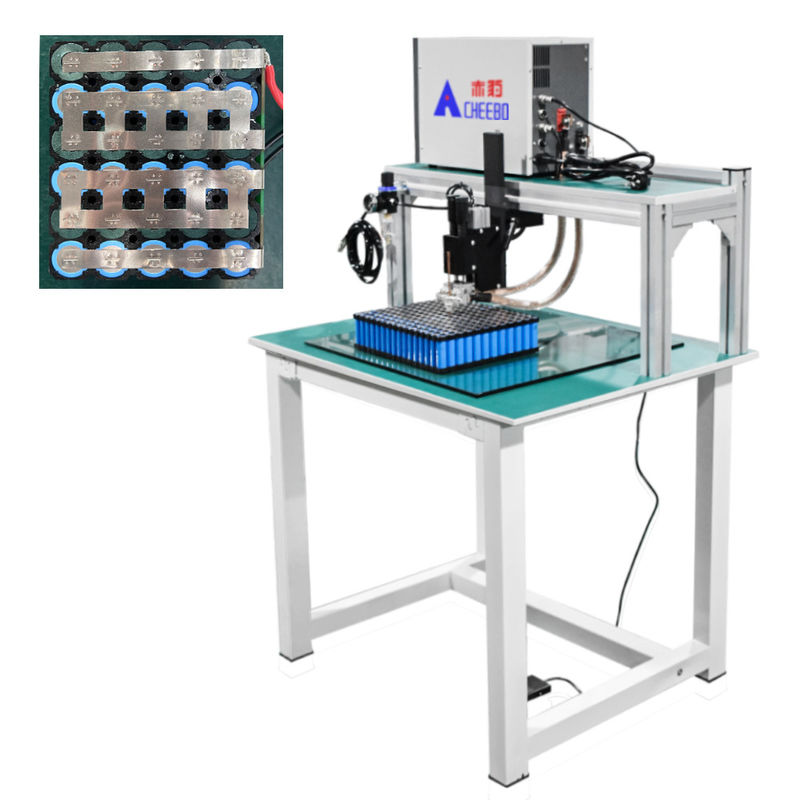

High Quality Pneumatic Foot Welding Battery Tab Spot Welding Machine

High Quality Pneumatic Foot Welding Battery Tab Spot Welding Machine

  • High Light

    Resistance Spot Welding Machine For Battery

    ,

    CCD Resistance Spot Welding Machine

    ,

    CCD Tab Spot Welder

  • Pulse
    0-3 (adjustable)
  • Energy
    0-999 (adjustable)
  • Spot Welding Pressure
    1-10KG/F
  • Equipment Weight
    60 KG
  • Product Name
    Multi-pulse Pneumatic Lithium Battery Spot Welding Machine
  • Welding Stroke
    50-130MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

High Quality Pneumatic Foot Welding Battery Tab Spot Welding Machine

High Quality Pneumatic Foot Welding Battery Tab Spot Welding Machine


Equipment introduction



● Application fields: power lithium-ion battery welding, 3C lithium-ion battery welding, Ni-MH battery welding, small hardware welding, electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry welding, copper products welding, aluminum products welding, etc. It is also suitable for welding work such as product maintenance and proofing.


● Digital LED display, more intuitive adjustment of equipment parameters, easy to learn and operate.


● Self-developed precision welding head with precise pressure adjustment and control.


● Proprietary output energy optimization algorithm, reasonable conversion of output voltage and output current, strong welding ability, firm and clear welding joint, and no false welding and stir welding. When welding, the cremation is small and the surface quality is good.


● Microcomputer technology control, power grid voltage control, automatic tracking compensation.


● Applicable battery size: minimum not less than 50MM and maximum not more than 130 mm..


● Use high-quality tempered glass to protect the table top from abrasion during welding.


● Vertical spot welding is adopted for spot welding, and the pressing depth is controlled manually.


● The welder can pre-store multiple programs, which can be changed and called at will.


● Compact structure, small volume, high power, large industrial circuit design, safe and reliable welding process.



Device action flow description



Power on - display 600 OE self-test screen - press the up arrow to enter the system - place the product to be soldered on the desktop -



press the foot pedal - press the soldering head down - spot soldering is complete - the soldering head is back in place



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Explosion-proof tempered glass

High quality tempered glass protects the table top from abrasion during welding. Ensure smooth and smooth welding process.



High Quality Pneumatic Foot Welding Battery Tab Spot Welding Machine 0

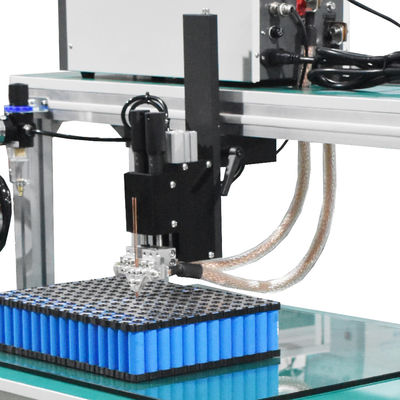

 2. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



High Quality Pneumatic Foot Welding Battery Tab Spot Welding Machine 1



 3. Multi-pulse welding power supply

Proprietary output energy optimization algorithm, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.



High Quality Pneumatic Foot Welding Battery Tab Spot Welding Machine 2



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
