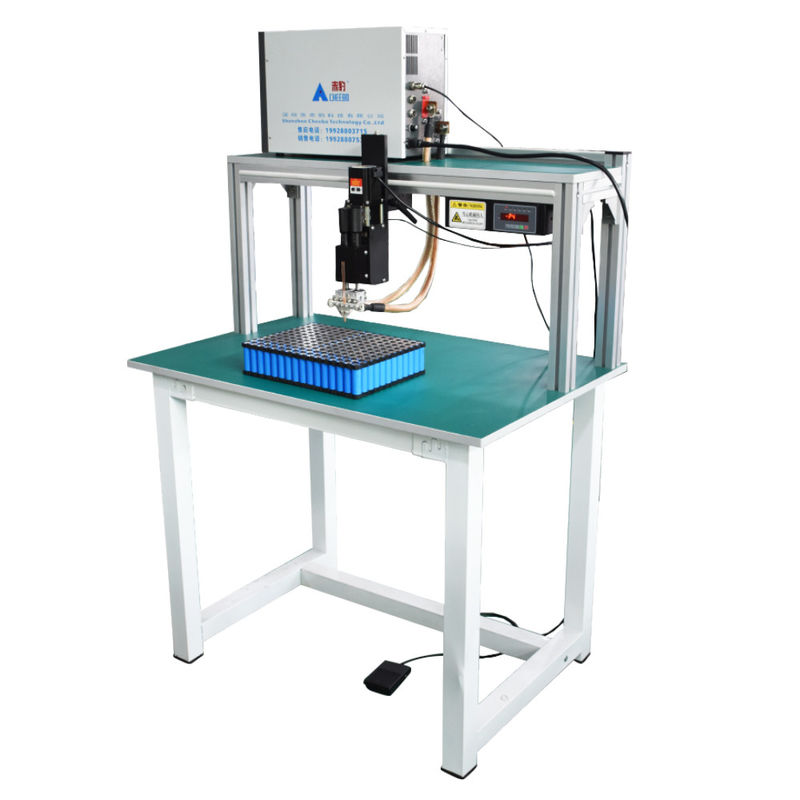

Pneumatic Table Top Spot Welding Machine 18650 Battery Pack Spot Welder

Pneumatic Table Top Spot Welding Machine 18650 Battery Pack Spot Welder

  • High Light

    High Precision Table Spot Welding Machine

    ,

    Pneumatic Battery Pack Spot Welder

    ,

    Pneumatic Battery Pack Spot Welder

  • Driving Mode
    Pneumatic
  • Welding Current
    3000A
  • Product Name
    Multi-pulse Pneumatic Lithium Battery Spot Welding Machine
  • Head Height
    130 (Max)
  • Appearance Size
    900*600*1300MM
  • Main Components
    Welding Head/power Supply
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Pneumatic Table Top Spot Welding Machine 18650 Battery Pack Spot Welder

Pneumatic Table Top Spot Welding Machine 18650 Battery Pack Spot Welder


Equipment introduction



● Application fields: power lithium ion battery pack welding, 3C lithium ion battery pack welding, nickel metal hydride battery pack

welding, small hardware welding, electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal

jewelry welding, copper products welding, aluminum products welding, etc. Also applicable to product maintenance, proofing and

other welding work.



● Digital LED display, more intuitive adjustment of the equipment parameters, easy to learn and operate.



● Self-developed precision welding head, with precise pressure regulation and control.



● Proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong welding ability,

firm and clear welding joint, no false welding and frying welding. The cremation is small and the surface quality is good.



● Microcomputer technology control, control of the power grid voltage, automatic tracking and compensation.



● Applicable battery size: minimum not less than 50MM, maximum not more than 130MM.



● Use high-quality tempered glass to protect the table from wear in the welding process.



● Spot welding adopts vertical spot welding mode, and manually controls the depth of the pressure.



● Welding machine can save multiple programs, these programs can be changed and called at will.



● Compact structure, small size, high power, large industrial circuit design, the welding process is safe and reliable.



  1. Welding case



Pneumatic Table Top Spot Welding Machine 18650 Battery Pack Spot Welder 0        Pneumatic Table Top Spot Welding Machine 18650 Battery Pack Spot Welder 1       Pneumatic Table Top Spot Welding Machine 18650 Battery Pack Spot Welder 2



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Function Introduction



 1. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.





Pneumatic Table Top Spot Welding Machine 18650 Battery Pack Spot Welder 3



 2. Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Pneumatic Table Top Spot Welding Machine 18650 Battery Pack Spot Welder 4



 3. Explosion-proof tempered glass

High quality tempered glass protects the table top from abrasion during welding. Ensure smooth and smooth welding process.



Pneumatic Table Top Spot Welding Machine 18650 Battery Pack Spot Welder 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
