Industrial Grade Lithium Battery Spot Welder 10000A High Power Electric Welding

Industrial Grade Lithium Battery Spot Welder 10000A High Power Electric Welding

  • High Light

    Continuous Li Ion Spot Welder

    ,

    Li Ion Spot Welder 10000A

    ,

    EV Battery Assembly Line 10000A

  • Product Name
    Transistor Electric Lithium Battery Spot Welder
  • Type Of Drive
    Foot On The Switch
  • Welding Mode
    Single Point/continuous
  • Product Weight
    60KG
  • Output Current
    10000A(Max)
  • Warranty Period
    1 Year
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Industrial Grade Lithium Battery Spot Welder 10000A High Power Electric Welding

Industrial Grade Lithium Battery Spot Welder 10000A High Power Electric Welding

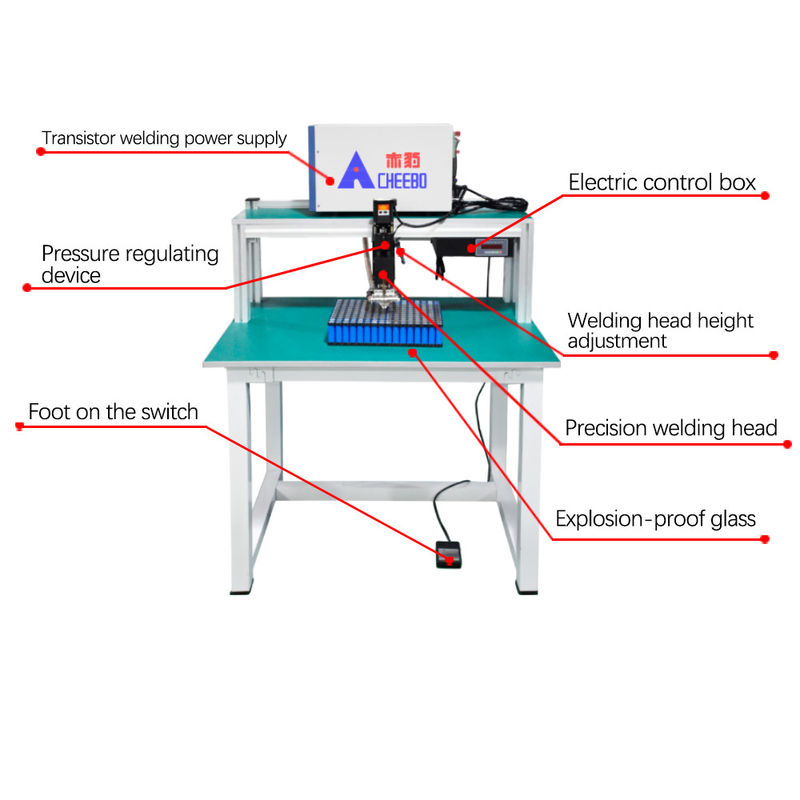

Equipment introduction

● Self-developed pure electric cylinder free system, low noise, stable pressure.


● Motor drive, control box precision control, single point/semi-automatic/automatic three adjustable modes. The welding method of the battery pack can be adjusted as required.


● The battery welding machine adopts the precision welding head developed by chebo, and the pressure adjustment control is accurate.


● The power supply adopts transistor welding power supply, the current rises fast, and high quality welding can be achieved in a short time.


● Welding power control using switching mode, can achieve small, efficient, high output welding.


● Self-developed precision welding machine head, with accurate pressure regulation and control.


● Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform



● 5.7 inch HD LED display, equipment parameter adjustment is convenient and intuitive, can pre-store multiple programs.


● There are three welding methods: constant pressure, constant current, constant pressure and constant current combination.



Device action flow description



Power on - Check if the WELED switch is turned on - Turn on the motion control system power - Welding head action - Find the origin position -



Place the product that needs to be welded on the desktop - Step on the foot pedal - Welding head pressing down - Welding head completed -



Welding head returning to its original position



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




  1. Welding case



Industrial Grade Lithium Battery Spot Welder 10000A High Power Electric Welding 0 Industrial Grade Lithium Battery Spot Welder 10000A High Power Electric Welding 1 Industrial Grade Lithium Battery Spot Welder 10000A High Power Electric Welding 2



Function Introduction



 1. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. It can weld various types of cells with different heights.



Industrial Grade Lithium Battery Spot Welder 10000A High Power Electric Welding 3

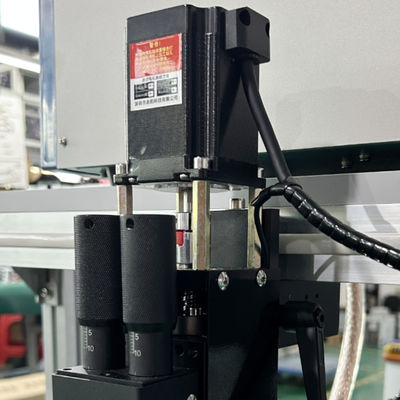

 2. Electric precision welding head

Motor driven welding, no need for external solenoid valves and cylinders, low noise. Vertical is a welded structure with dual linear guide rail design, and the left and right pressures can be adjusted separately. Built in pressure sensor for precise control and stable pressure applications.



Industrial Grade Lithium Battery Spot Welder 10000A High Power Electric Welding 4



 3. Transistor welding power supply

Welding energy output is the most stable power source, displaying real-time welding voltage and current waveforms. The current rises quickly and can achieve high-quality welding in a short period of time.



Industrial Grade Lithium Battery Spot Welder 10000A High Power Electric Welding 5



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
