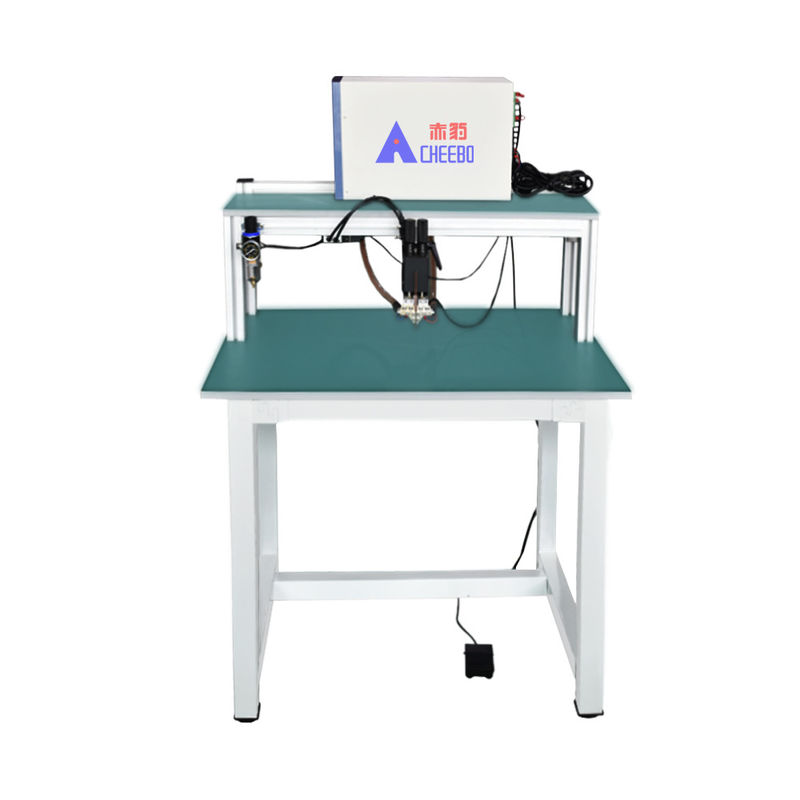

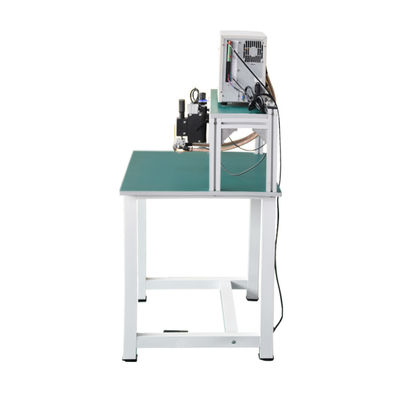

Foot Switch Lithium Battery Spot Welder Semi Automatic Manual Operation Welding

Foot Switch Lithium Battery Spot Welder Semi Automatic Manual Operation Welding

  • High Light

    Foot Switch Spot Welder Accessories

    ,

    Semi Automatic Welding Machine For Battery

    ,

    Foot Switch Semi Automatic Welding Machine

  • Shelf Material
    Stainless Steel
  • Product Name
    Transistor Pneumatic Lithium Battery Spot Welder
  • Weldingmode
    Single Point/connected Point
  • Cooling Method
    Natural Cooling
  • Power
    AC220V/50Hz
  • Rise Time
    0.00-9.99ms
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Foot Switch Lithium Battery Spot Welder Semi Automatic Manual Operation Welding

Foot Switch Lithium Battery Spot Welder Semi Automatic Manual Operation Welding


Equipment introduction

● CHEEBO lithium battery spot welding machine adopts self-developed precision welding head, with accurate pressure regulation and control.


● Transistor welding power supply, no welding transformer is required inside. Energy can be switched quickly and efficiently through transistors. The welding current increases rapidly, and high quality welding is achieved in a short time.


● 18650 battery spot welding machine has three control methods: constant current, constant pressure, constant current, constant pressure combination.


● Built-in pre-detection function, can judge the workpiece before welding.


● The welding power supply is controlled by switching mode, which can realize small and efficient high output welding.


● Lithium-ion battery spot welding machine adds continuous spot welding function, which can effectively improve production efficiency.


● Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.


● 5.7-inch HD LED display, convenient and intuitive device parameter adjustment, and can store multiple programs in advance.


● With a thick explosion-proof glass, protect the desktop in the welding process is not easy to wear, to ensure smooth welding.


● The vertical spot welding method is used for welding, and the pressing depth is manually controlled.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Function Introduction



 1. Precision resistance welding head
Horizontal welding structure, double linear guide design left and right pressure can be adjusted according to the welding thickness.
Built-in pressure sensor, precise control to apply stable pressure.

Foot Switch Lithium Battery Spot Welder Semi Automatic Manual Operation Welding 0



 2. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Foot Switch Lithium Battery Spot Welder Semi Automatic Manual Operation Welding 1

 2. Thick cable
Thick pure copper cable, low resistance wire, large carrying capacity, thick enough, welding no heat current no loss transmitted to the welding head, to ensure welding current.

Foot Switch Lithium Battery Spot Welder Semi Automatic Manual Operation Welding 2



Application case



1. Energy storage battery pack         2. Electric bicycle battery pack          3. Power tool battery pack



Foot Switch Lithium Battery Spot Welder Semi Automatic Manual Operation Welding 3       Foot Switch Lithium Battery Spot Welder Semi Automatic Manual Operation Welding 4       Foot Switch Lithium Battery Spot Welder Semi Automatic Manual Operation Welding 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
