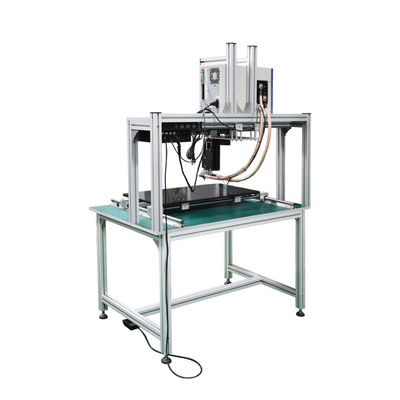

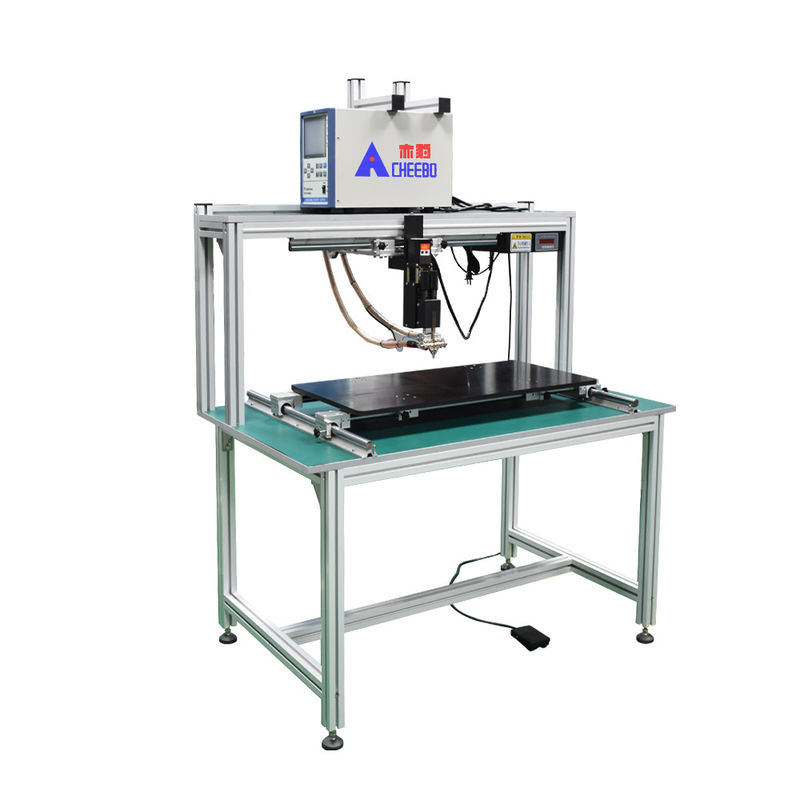

Electric 18650 Battery Tab Spot Welding Machine High Precision

Electric 18650 Battery Tab Spot Welding Machine High Precision

  • High Light

    Cylindrical Battery Tab Spot Welding Machine

    ,

    High Precision 18650 Welding Machine

    ,

    High Precision Tab Spot Welding Machine

  • Rated Capacity
    5KVA
  • Max. Welding Thickness
    0.04-0.5mm
  • Usage
    Lithium Battery Welding
  • Warranty
    1 Year
  • Product Name
    Transistor Electric Lithium Battery Spot Welder
  • After-sales Service Provided
    Online Service Provided
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLDD
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    The wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Electric 18650 Battery Tab Spot Welding Machine High Precision

Electric 18650 Battery Tab Spot Welding Machine High Precision


Equipment introduction



● Equipped with transistor power supply, welding current rising speed is fast, a short time to achieve high quality welding.



● Double guide rail thickening, stable and firm chassis,X, Y, Z, shaft and welding head can be adjusted.



● Spot welding process does not need to push the battery pack, labor saving, fast especially suitable for large battery pack spot welding assembly.



● 5.7-inch HD LED display, easy and intuitive adjustment of equipment parameters, multiple programs can be prestored.



● Laser positioning function can be installed to improve welding accuracy. It has three control modes: constant voltage, constant current, and voltage and current mixed mode.



● Microcomputer technology control, real-time monitoring welding voltage, current, resistance waveform.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A*8000A*10000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Electric Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



Electric 18650 Battery Tab Spot Welding Machine High Precision 0      Electric 18650 Battery Tab Spot Welding Machine High Precision 1       Electric 18650 Battery Tab Spot Welding Machine High Precision 2



Function Introduction



 1. Electric precision welding head

Horizontal welding structure, double linear guide design left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure. The welding head is equipped with a guide rail, which can move left and right for easy welding.

Electric 18650 Battery Tab Spot Welding Machine High Precision 3



 2. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Electric 18650 Battery Tab Spot Welding Machine High Precision 4



 3. Electric control

No additional air source, low noise, fast welding speed, stable pressure.

Electric 18650 Battery Tab Spot Welding Machine High Precision 5



  1. Welding case



Electric 18650 Battery Tab Spot Welding Machine High Precision 0 Electric 18650 Battery Tab Spot Welding Machine High Precision 1 Electric 18650 Battery Tab Spot Welding Machine High Precision 2



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.





Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Service process



Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
