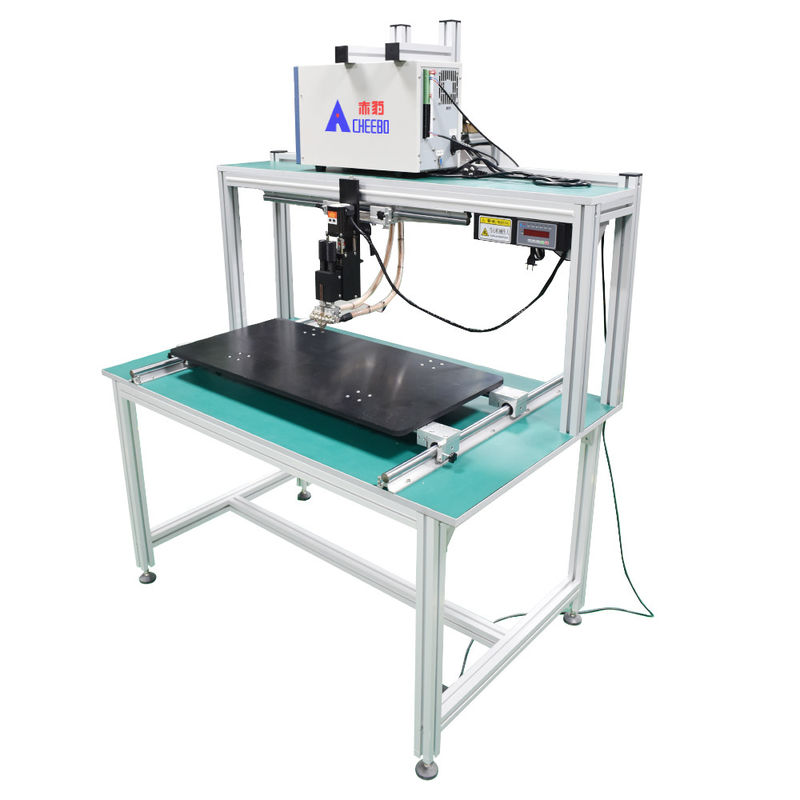

Motor Drive Lithium Battery Tab Spot Welding Machine Movable Guide Rail

Motor Drive Lithium Battery Tab Spot Welding Machine Movable Guide Rail

  • High Light

    Silent Battery Tab Spot Welding Machine

    ,

    Silent Battery Pack Welder

    ,

    Lithium Battery Pack Welder

  • Color
    Silver White + Blue
  • Input Voltage
    220V/50Hz
  • Material
    Aluminum Alloy
  • Size
    700*1200*1450mm
  • Welding Thickness
    Less Than 0.3mm
  • Product Name
    Guide Rail Lithium Battery Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLDD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Motor Drive Lithium Battery Tab Spot Welding Machine Movable Guide Rail

Motor Drive Lithium Battery Tab Spot Welding Machine Movable Guide Rail


Equipment introduction

​​● This lithium battery spot welding machine adopts transistor welding power supply, the current rises fast, and achieves high quality welding in a short time.


​​● Three welding modes can be adjusted: constant voltage, constant current and constant voltage current.


​​● Compact power supply, small size, large power, no need to weld transformers.


​​● Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.


​​● 5.7 inch HD LED display, device parameter adjustment is convenient and intuitive, multiple programs can be pre-stored.


​​● Pure electric no cylinder, low noise, fast speed, stable pressure, does not affect the welding quality due to external air source interference.


​​● Independently developed precision welding head, the pressure can be accurately adjusted and controlled according to the thickness and material of nickel sheet to achieve precision welding.


​​● Double guide rail thickening, the chassis is stable and firm, not easy to deformation.


​​● Welding The welding head can be moved up and down, and the welding head can be moved according to the size of the battery pack for easy welding.


​​● The table guide rail can be pushed and pulled left and right, and the stroke is 750*350mm.


​​● The spot welding process does not need to push the battery pack, saving energy and fast, the platform can carry 60KG, especially suitable for large battery pack welding.


​​● The guide rail is convenient to move, saving time and labor, greatly shortening welding time and improving manual welding speed.


​​● Energy saving and environmental protection, stable and efficient, low power consumption of equipment.

  1. Welding case

Motor Drive Lithium Battery Tab Spot Welding Machine Movable Guide Rail 0 Motor Drive Lithium Battery Tab Spot Welding Machine Movable Guide Rail 1 Motor Drive Lithium Battery Tab Spot Welding Machine Movable Guide Rail 2

Technical specification

Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Driving mode Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding

  • Welding precautions

1.Keep the distance between the end face of the welding needle and the end face of the battery 3 to 5MM.



2.For the battery specifications in a battery pack, the spot welding surface must be flush and the height as consistent as possible.



3.Clean the end face of the spot welding needle regularly.

Function Introduction

 1. Electric control

No additional air source, low noise, fast welding speed, stable pressure.



Motor Drive Lithium Battery Tab Spot Welding Machine Movable Guide Rail 3



 2. Guide rail design

Double guide rail thickening design, the chassis is stable and firm, not easy to deformation. The guide rail can move left and right, and the welding head part is also equipped with a guide rail design, which is suitable for large battery assembly and welding, saving time and effort.


Motor Drive Lithium Battery Tab Spot Welding Machine Movable Guide Rail 4



 3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Motor Drive Lithium Battery Tab Spot Welding Machine Movable Guide Rail 5
