Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder

Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder

  • High Light

    Horizontal Battery Tab Spot Welding Machine

    ,

    Resistance Type Semi Automatic Spot Welder

    ,

    Horizontal Semi Automatic Spot Welder

  • Cable Length
    80CM
  • Product Name
    Multi-pulse Pneumatic Lithium Battery Spot Welding Machine
  • Height Of Welding Head
    50-130MM (more Than Can Be Used To Increase The Height)
  • Welding Thickness
    0.02-0.18MM
  • Frame Material
    Stainless Steel
  • Energy Output
    0-999 (adjustable)
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder

Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder


Product application



Power lithium-ion battery module welding, 3C lithium-ion battery pack welding, nickel-metal hydride battery pack welding, hardware accessories



welding, electronic and electrical accessories welding, wire terminal welding, stainless steel accessories welding, metal jewelry welding, copper



products welding, aluminum products welding, etc.



Equipment introduction



● Application fields: power lithium-ion battery pack welding, 3C lithium-ion battery pack welding, nickel-metal hydride battery pack welding, small hardware welding, electronic and electrical device welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper product welding, aluminum product welding, etc. It is also suitable for welding work such as product maintenance and proofing.


● Digital LED display, more intuitive adjustment of equipment parameters, easy to learn and operate.


● Self-developed precision welding head, with precise pressure adjustment control.


● Proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong welding ability, firm and clear welding joints, no false welding and stir-fry welding. Small cremation during welding and good surface quality.


● Microcomputer technology control, control grid voltage, automatic tracking compensation.


● APPLICABLE BATTERY SIZE: MINIMUM NOT LESS THAN 50MM, MAXIMUM NOT MORE THAN 130MM.


● The use of high-quality tempered glass protects the table from wear during the welding process.


● Spot welding adopts vertical spot welding method, and the pressure depth is manually controlled.


● The welding machine can pre-store multiple programs, which can be changed and called at will.


● Compact structure, small size, high power, large-scale industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding

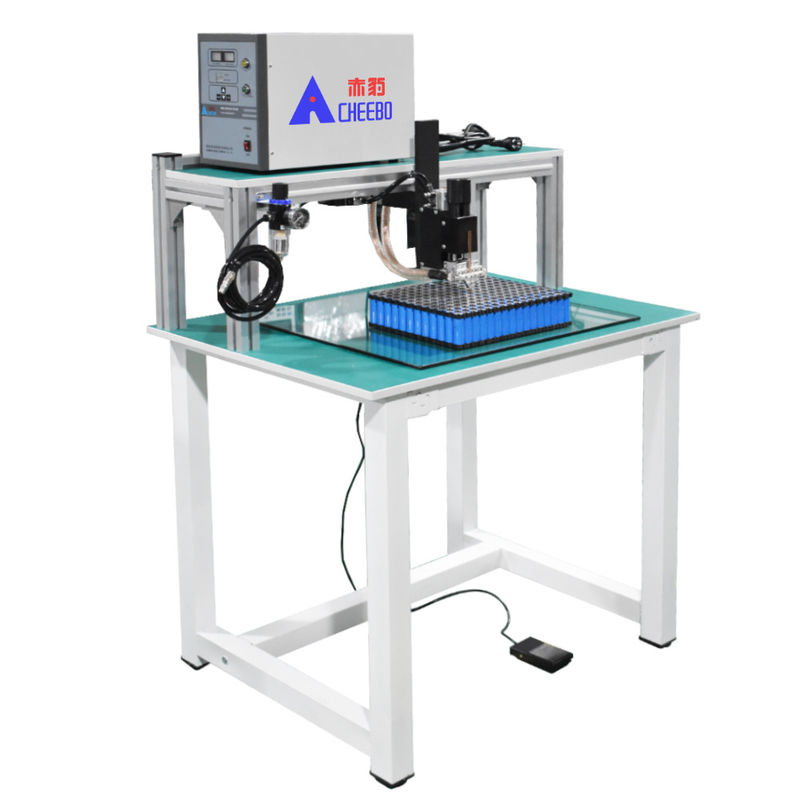

Apparent dimension

Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder 0

Equipment workflow



Power on - display 600 OE self-test screen - press the up arrow to enter the system - Place the product to be welded on the table - pedal -



press the welding head - spot welding completed - welding head return





Function Introduction



 1. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder 1

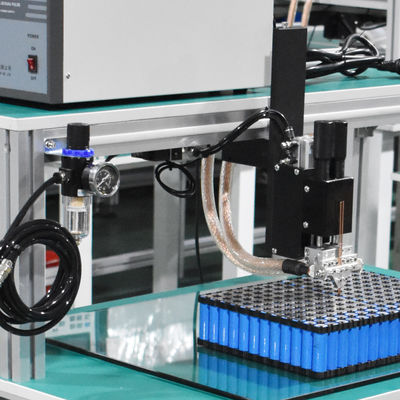

 2. Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder 2



 3. Explosion-proof tempered glass

High quality tempered glass protects the table top from abrasion during welding. Ensure smooth and smooth welding process.



Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder 3



  1. Welding case



Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder 4 Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder 5 Semi Automatic Battery Tab Spot Welding Machine Resistance Type Spot Welder 6
