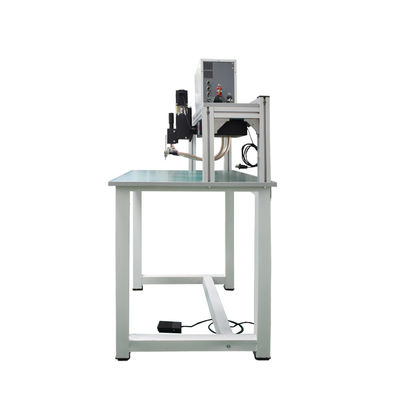

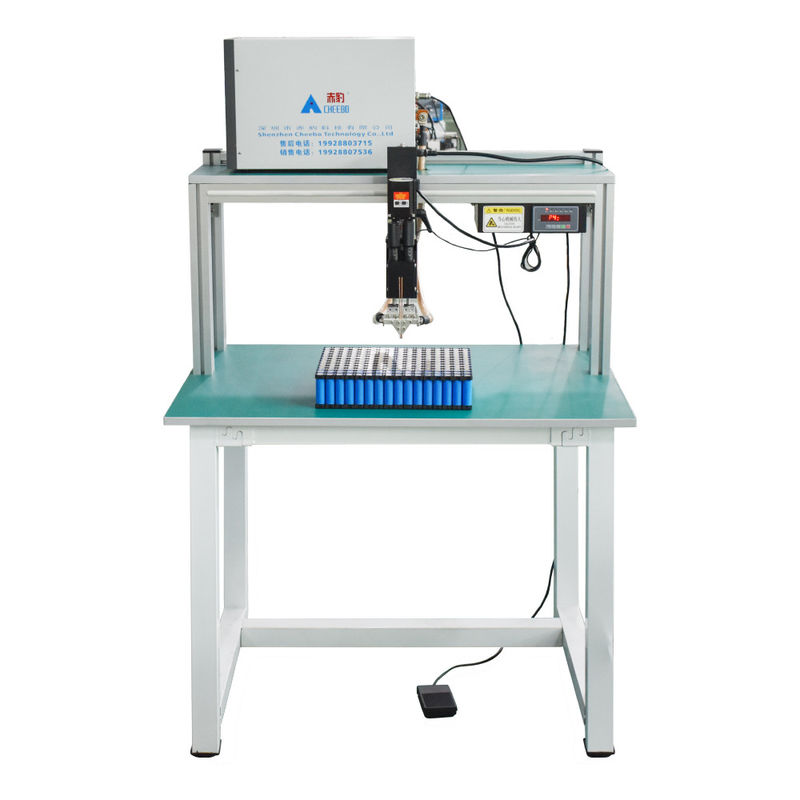

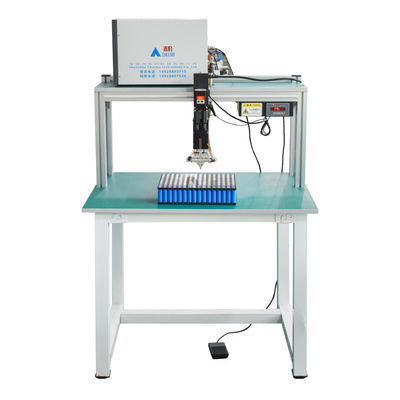

Lithium Ion Battery Tab Spot Welding Machine Battery Pack Assembly Machine

Lithium Ion Battery Tab Spot Welding Machine Battery Pack Assembly Machine

  • High Light

    Bump Battery Tab Spot Welding Machine

    ,

    Lithium Ion Battery Assembly Machine

    ,

    Bump Battery Assembly Machine

  • Platform Load
    60KG
  • Welding Head Drive Mode
    Foot On The Switch
  • Important Parts
    Control Box/electric Precision Welding Head/power Supply
  • Cable Material
    Pure Copper
  • Action Type
    Semi-automatic
  • Product Name
    Multi-pulse Electric Lithium Battery Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Lithium Ion Battery Tab Spot Welding Machine Battery Pack Assembly Machine

Lithium Ion Battery Tab Spot Welding Machine Battery Pack Assembly Machine


Equipment introduction



​● The spot welding machine for lithium battery adopts pure electric cylinder design, with low noise and stable pressure.


● Motor drive, precise control of control box, adjustable in three modes: single point/semi-automatic/automatic.


● CBLD-26 multi-pulse spot welding machine for lithium battery adopts self-developed output energy optimization algorithm. The output voltage and current are reasonable, the welding ability is strong, the solder joint is firm, the welding is weak, the cremation is small, and the surface quality is excellent.


● Self-developed precision welding head, accurate pressure adjustment and control.


● Microcomputer technology control, power grid voltage control, and automatic tracking compensation.


● Applicable battery specifications: minimum not less than 50mm and maximum not more than 130 mm.


● The welding platform is made of high-quality tempered glass, which protects the desktop from abrasion during welding.


● Weld by vertical spot welding, and manually control the pressure depth.


● Digital LED display makes the adjustment of equipment parameters more intuitive and easy to learn and operate.


● The welder can pre-store multiple programs, which can be changed and called at will.


● Compact structure, small volume, high power, large-scale industrial circuit design and safe and reliable welding process.



  1. Welding case



Lithium Ion Battery Tab Spot Welding Machine Battery Pack Assembly Machine 0 Lithium Ion Battery Tab Spot Welding Machine Battery Pack Assembly Machine 1 Lithium Ion Battery Tab Spot Welding Machine Battery Pack Assembly Machine 2



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Device action flow description



Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Turn on the power of the motion control system -- welding



head action -- Find the origin position -- Place the product to be welded on the desktop -- Step on the pedal -- welding head down -- spot welding



completed -- welding head back



Function Introduction



 1. Electric control

No additional air source, low noise, fast welding speed, stable pressure.



Lithium Ion Battery Tab Spot Welding Machine Battery Pack Assembly Machine 3



 2. Electric precision welding head

Motor driven welding, without the need for external solenoid valves and cylinders, with low noise. Horizontal welding structure, double linear guide rail design, left and right pressure can be adjusted separately. Built in pressure sensor for precise control and stable pressure application.



Lithium Ion Battery Tab Spot Welding Machine Battery Pack Assembly Machine 4



 3. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



Lithium Ion Battery Tab Spot Welding Machine Battery Pack Assembly Machine 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
