Mini Pneumatic Footstep Portable Battery Spot Welder High Quality Welding

Mini Pneumatic Footstep Portable Battery Spot Welder High Quality Welding

  • High Light

    Mini Battery Spot Welder Electric Machine

    ,

    Pneumatic Battery Spot Welder Electric Machine

    ,

    Pneumatic Portable Battery Welder

  • Cable Material
    Pure Copper
  • Max. Welding Thickness
    0.04-0.2mm
  • Product Name
    Guide Rail Lithium Battery Spot Welding Machine
  • Voltage
    AC 220V ±20V
  • Warranty
    1 Year
  • Main Components
    Precision Welding Head
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Mini Pneumatic Footstep Portable Battery Spot Welder High Quality Welding

Mini Pneumatic Footstep Portable Battery Spot Welder High Quality Welding


Equipment introduction



● Adopting single-chip control, it can realize single-pulse, multi-pulse and double-pulse welding.


● The lithium battery welder adopts proprietary output energy optimization algorithm, with reasonable output voltage and output current conversion, strong welding capacity, firm welding joints, no miswelding, low ignition and excellent surface quality.


● Independent welding pin, spring buffer design, precise adjustment of welding pressure.


● The welding head platform can be adjusted up and down, which can weld various specifications of batteries.


● Imported high-quality alumina copper electrode, pure copper welding cable, pure copper electrode clip and other accessories make the machine durable.


● Intelligent chip precision control, imported control chip, microsecond corresponding chip integration process, small size, can work for a long time, and stable operation.


● All parameters are digitally set, and the parameter adjustment is stable, intuitive and accurate.


● Adopt the vertical spot welding method for welding, and the pressure depth can be adjusted.


● Adopt CHEEBO self-developed pneumatic precision welding head with precise pressure adjustment control.


● Digital LED display, the equipment parameter adjustment is more intuitive and easy to learn and operate.


● Microcomputer technology control, grid voltage control, automatic tracking compensation.


● Portable lithium battery spot welder adopts integrated design, space-saving and easy to carry.


● The welder can pre-store several programs, which can be changed and called freely.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Product introduction



This product is a widely popular AC pulse spot welder with microcomputer single-chip control, stable and reliable performance. Industrial grade



welding equipment. It is used for power lithium-ion battery module welding, 3C lithium-ion battery pack Han Eugi, NiMH battery pack welding,



hardware small parts welding, electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry welding,



copper products welding, aluminum products welding. It is also applicable to the work of product maintenance and proofing.

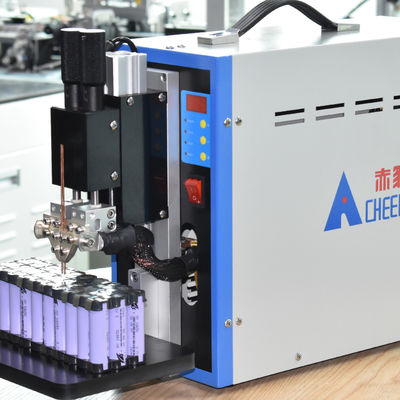

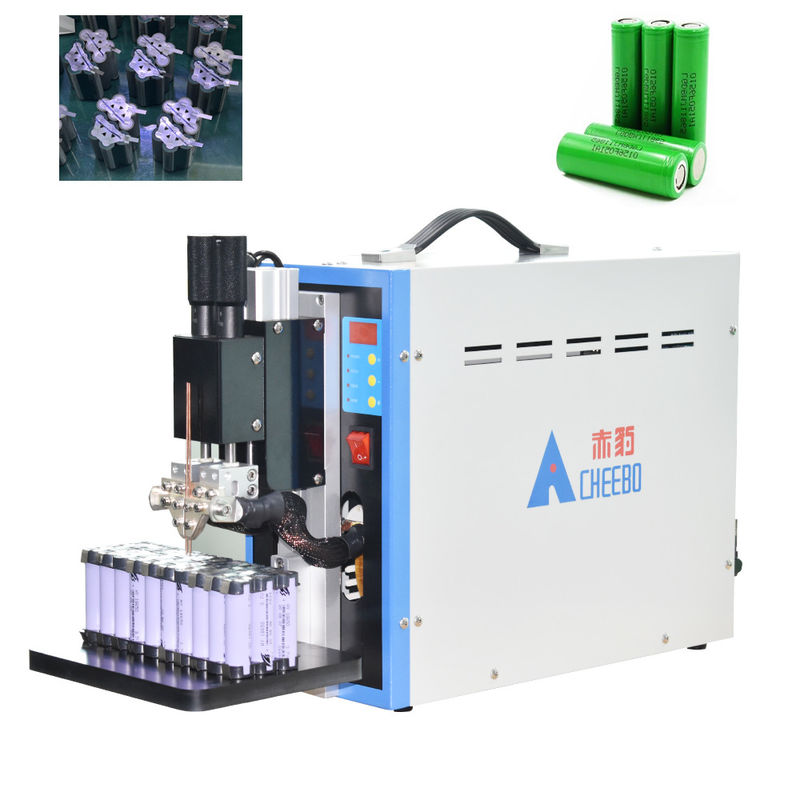

  1. Welding case



Mini Pneumatic Footstep Portable Battery Spot Welder High Quality Welding 0 Mini Pneumatic Footstep Portable Battery Spot Welder High Quality Welding 1 Mini Pneumatic Footstep Portable Battery Spot Welder High Quality Welding 2



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 25KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. High quality cable

Pure copper cable, low resistance wire, high current carrying capacity, thick enough, and non heating during welding.



Mini Pneumatic Footstep Portable Battery Spot Welder High Quality Welding 3



 2. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



Mini Pneumatic Footstep Portable Battery Spot Welder High Quality Welding 4



 3. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.



Mini Pneumatic Footstep Portable Battery Spot Welder High Quality Welding 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
