Welding Power Supply 21700 Battery Foot-Type Resistance  Spot Welder

Welding Power Supply 21700 Battery Foot-Type Resistance Spot Welder

  • High Light

    Welding Machine Power Supply 21700

    ,

    Cylindrical Welding Machine Power Supply

    ,

    Portable Battery Welder 21700

  • Display
    Digital LED
  • Size
    640mm*200mm*360mm
  • Welding Power Supply
    Multi-pulse Welding
  • Product Name
    200P/M
  • Welding Method
    Portable Lithium Battery Spot Welder
  • Power
    3KW/7KW/12KW (optional)
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Welding Power Supply 21700 Battery Foot-Type Resistance Spot Welder

Welding Power Supply 21700 Battery Foot-Type Resistance Spot Welder


Equipment introduction



● Using single-chip microcomputer control, it can realize single-pulse, multi-pulse and double-pulse welding.


● Lithium battery welding machine adopts proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong welding ability, firm welding joint, no false welding, low ignition and excellent surface quality.


● Independent welding pin, spring cushioning design, precise adjustment of welding pressure.


● The welding head platform can be adjusted up and down, and batteries of various specifications can be welded.


● Imported alumina copper electrode, pure copper welding cable, pure copper electrode chuck and other high-quality accessories, the machine is durable.


● Intelligent chip precision control, imported control chip, microsecond level corresponding chip integration process, small size, can work for a long time, and stable operation.


● All parameters are set digitally, and the parameter adjustment is stable, intuitive and accurate.


● The welding adopts vertical spot welding, and the pressure depth is adjustable.


● It adopts the pneumatic precision welding head independently developed by Cheebo, which has precise pressure adjustment control.


● Digital LED display, equipment parameter adjustment is more intuitive, easy to learn and operate.


● Microcomputer technology control, grid voltage control, automatic tracking compensation.


● Portable lithium battery spot welding machine adopts integrated design, which saves space and is easy to carry.


● The welding machine can store multiple programs in advance, and can be changed and recalled at will.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 25KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




  1. Welding case



Welding Power Supply 21700 Battery Foot-Type Resistance  Spot Welder 0 Welding Power Supply 21700 Battery Foot-Type Resistance  Spot Welder 1 Welding Power Supply 21700 Battery Foot-Type Resistance  Spot Welder 2



Workflow specification



Power on -- Adjust parameters -- Place the installed battery pack on the workbench -- step on the pedal -- the welding head starts to move -- spot



welding is completed -- the welding head returns



Function Introduction



 1. High quality cable

Pure copper cable, low resistance wire, high current carrying capacity, thick enough, and non heating during welding.



Welding Power Supply 21700 Battery Foot-Type Resistance  Spot Welder 3

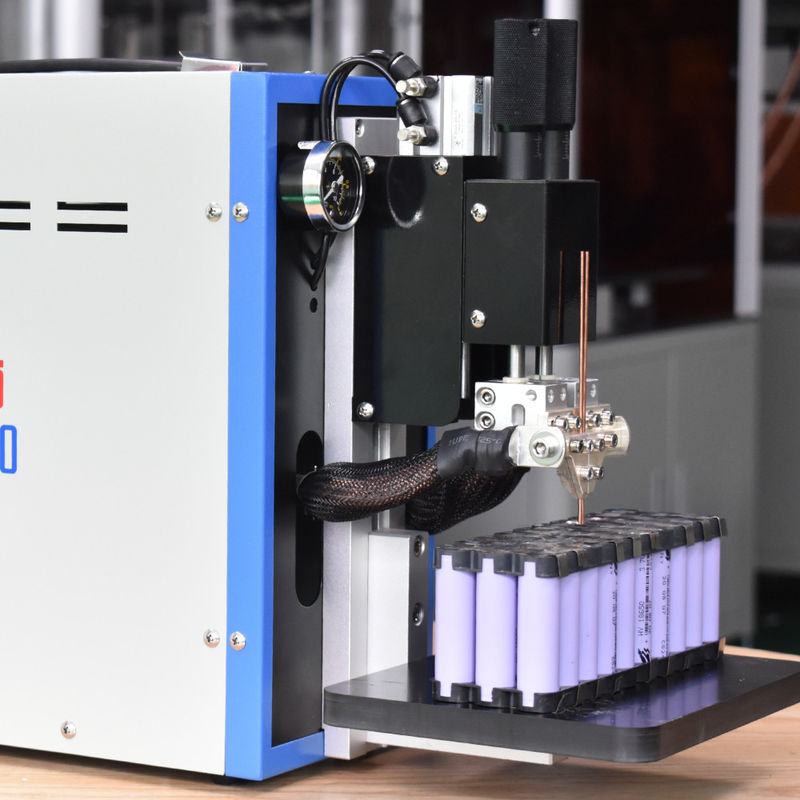

 2. Welding table

Welding table can be adjusted up and down, loose the screw can be adjusted, simple and convenient, suitable for a variety of specifications of battery welding.



Welding Power Supply 21700 Battery Foot-Type Resistance  Spot Welder 4



 3. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.



Welding Power Supply 21700 Battery Foot-Type Resistance  Spot Welder 5



Announcements
  1.  Polish the welding needle regularly.
  2.  Regularly check whether there is loosening in each part.
  3.  Do not disassemble circuit components without permission.
  4.  Periodically clean welding dust from all parts of the device.
  5.  Check the lubrication degree of each moving part every month
  6.  Please read the instructions carefully before operation and operate according to the specifications of the instructions.
Debugging project
  1.  Welding pressure: 1-5 kg/F
  2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters

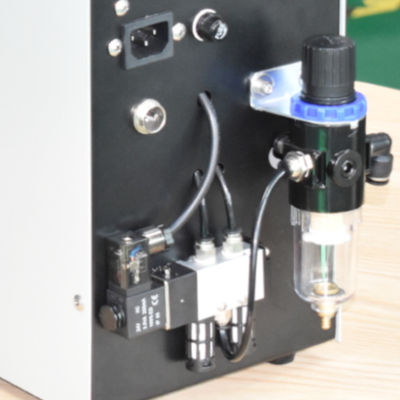

  3.  Air pressure regulation
  4.  Adjustment of needle extension length
  5.  Adjust the position under the table top
  6.  Adjust the spacing between the left and right pins
