High Precision Battery Pack Assembly Equipment 18650 Pneumatic Spot Welder

High Precision Battery Pack Assembly Equipment 18650 Pneumatic Spot Welder

  • High Light

    Battery Pack Assembly Equipment 18650

    ,

    Pneumatic Spot Welder 18650

    ,

    High Precision Pneumatic Spot Welder

  • Use
    Battery Welding
  • Welding Principle
    Resistance Welding
  • Drive Mode
    Pneumatic Pressure Drive
  • Welding Thickness
    0.2MM (Max)
  • Product Name
    Portable Lithium Battery Spot Welder
  • Equipment Weight
    25KG
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

High Precision Battery Pack Assembly Equipment 18650 Pneumatic Spot Welder

High Precision Battery Pack Assembly Equipment 18650 Pneumatic Spot Welder


Equipment introduction



● Adopting single-chip computer control, it can realize single pulse, multi-pulse and double-pulse welding.


● The lithium battery welder adopts proprietary output energy optimization algorithm, with reasonable output voltage and output current conversion, strong welding capacity, firm welding joints, no miswelding, low ignition and excellent surface quality.


● Independent welding pin, spring cushion design, precise adjustment of welding pressure.


● The welding head platform can be adjusted up and down, and can weld various sizes of batteries.


● Imported alumina copper electrode, pure purple copper welding cable, pure copper electrode chuck and other high quality accessories, the machine is durable.


● Intelligent chip precision control, imported control chip, microsecond corresponding chip integration process, small size, can work for a long time, and stable operation.


● All parameters are set digitally, and the parameter adjustment is stable, intuitive and accurate.


● Welding adopts vertical spot welding, with adjustable pressure depth.


● Pneumatic precision welding head developed by CHEEBO, with precise pressure adjustment control.


● Digital LED display, the equipment parameters are more intuitive to adjust, easy to learn and operate.


● Microcomputer technology control, power grid voltage control, automatic tracking compensation.


● Portable lithium battery spot welder with all-in-one design, space-saving and easy to carry.


● The welder can pre-store several programs, which can be changed and recalled at will.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Product introduction



This product is currently widely popular AC pulse spot welding machine, using microcomputer single-chip microcomputer control, stable and



reliable performance. Industrial grade welding equipment. It is used for power lithium-ion battery module welding, 3C lithium-ion battery pack



welding, nickel-metal hydride battery pack welding, hardware small parts welding, electronic and electrical parts welding, wire terminal welding,



stainless steel parts welding, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product maintenance



and proofing.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 25KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case

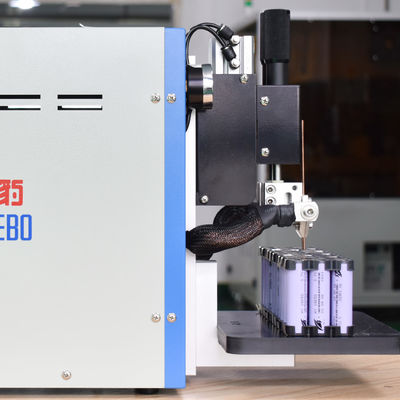

High Precision Battery Pack Assembly Equipment 18650 Pneumatic Spot Welder 0 High Precision Battery Pack Assembly Equipment 18650 Pneumatic Spot Welder 1 High Precision Battery Pack Assembly Equipment 18650 Pneumatic Spot Welder 2



Function Introduction

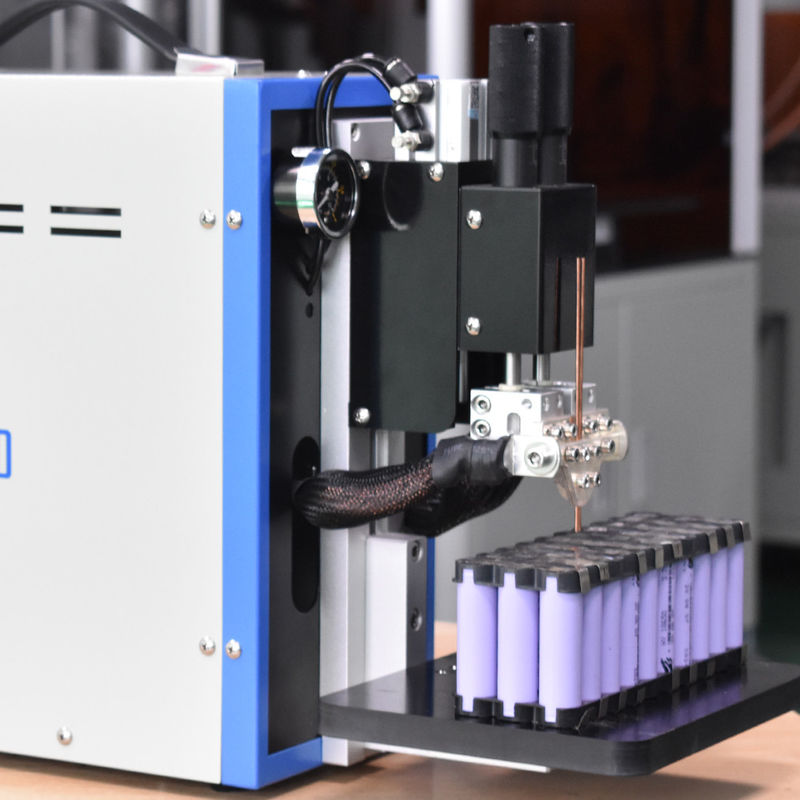

 1. Pneumatic precision welding head

The left and right electrodes of the double point welding head are pressed down simultaneously, which is precise and adjustable. Flexible and rapid pressurization, with good pressure follow-up. High machining accuracy and low electrode inertia. The built-in pressure in place sensing device is connected to the welding controller to ensure that each welding pressure meets the requirements.



High Precision Battery Pack Assembly Equipment 18650 Pneumatic Spot Welder 3



 2. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



High Precision Battery Pack Assembly Equipment 18650 Pneumatic Spot Welder 4



 3. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.



High Precision Battery Pack Assembly Equipment 18650 Pneumatic Spot Welder 5



Debugging project
  1.  Welding pressure: 1-5 kg/F
  2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
  3.  Air pressure regulation
  4.  Adjustment of needle extension length
  5.  Adjust the position under the table top
  6.  Adjust the spacing between the left and right pins
