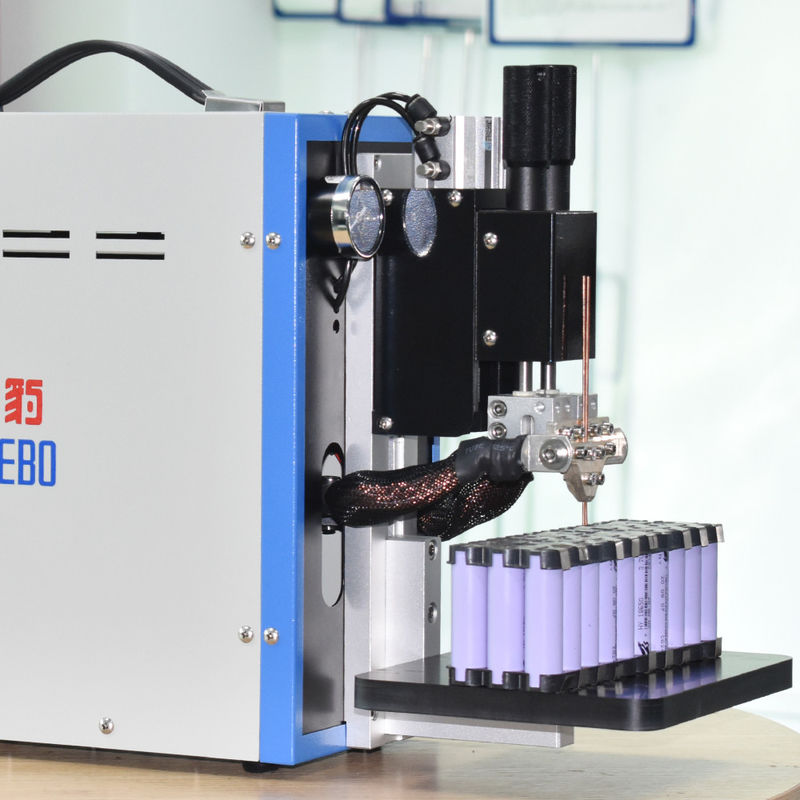

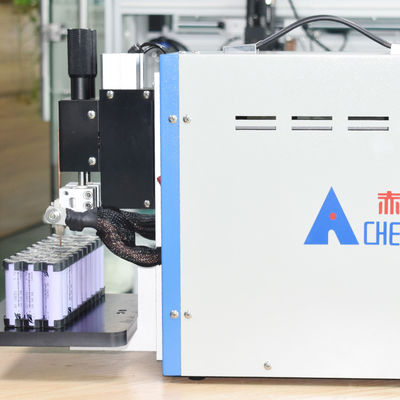

High Power Portable Battery Spot Welder Equipment For Lithium Cell Assembly 7KW

High Power Portable Battery Spot Welder Equipment For Lithium Cell Assembly 7KW

  • High Light

    High Power Portable Battery Spot Welder

    ,

    Equipment For Lithium Cell Assembly 7KW

    ,

    Portable Battery Spot Welder 7KW

  • Pressure Regulation
    1-10KG/F
  • Spot Welding Method
    Pointed Point/convex Point
  • Welding Power
    7KW
  • Product Name
    Portable Battery Spot Welder
  • Product Selling Point
    Precision Welding Head
  • Cable Material
    Pure Copper
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

High Power Portable Battery Spot Welder Equipment For Lithium Cell Assembly 7KW

High Power Portable Battery Spot Welder Equipment For Lithium Cell Assembly 7KW


Equipment introduction



This product is a widely popular AC pulse spot welding machine at present. It is controlled by a microcomputer single-chip microcomputer, and its performance is stable and reliable. Industrial grade welding equipment. Suitable for power lithium-ion battery module welding, 3C lithium-ion battery pack welding, Ni-MH battery pack welding, small hardware parts welding, electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry, copper products, aluminum products, etc. It is also suitable for product maintenance and proofing.


● Using single-chip microcomputer control, single-pulse, multi-pulse, and double-pulse welding can be realized.


● The lithium battery welding machine adopts a proprietary output energy optimization algorithm, the output voltage and output current conversion is reasonable, the welding ability is strong, the solder joints are firm, the welding is correct, the ignition is less, and the surface quality is excellent.


● Independent welding needle, spring buffer design, precise adjustment of welding pressure.


● The welding head platform can be adjusted up and down, and can weld batteries of various specifications.


● Imported aluminum oxide copper electrode, pure copper welding cable, pure copper electrode clamp and other high-quality accessories, the machine is durable.


● Smart chip precision control, imported control chip, microsecond level corresponds to chip integration process, small size, can work for a long time, and runs stably.


● All parameters are set by numbers, and the parameter adjustment is stable, intuitive and accurate.


● Welding adopts vertical spot welding, and the pressing depth of welding head can be adjusted.


● The pneumatic precision welding head independently developed by Qibao has precise pressure regulation control.


● Digital LED display, equipment parameter adjustment is more intuitive, easy to learn and operate.


● Microcomputer technology control, grid voltage control, automatic tracking compensation.


● The portable lithium battery spot welding machine adopts an integrated design, which saves space and is easy to carry.


● The welding machine can store multiple programs in advance, which can be changed and recalled at will.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Debugging project
  1.  Welding pressure: 1-5 kg/F
  2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
  3.  Air pressure regulation
  4.  Adjustment of needle extension length
  5.  Adjust the position under the table top Adjust the spacing between the left and right pin
Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 25KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Welding table

Welding table can be adjusted up and down, loose the screw can be adjusted, simple and convenient, suitable for a variety of specifications of battery welding.



High Power Portable Battery Spot Welder Equipment For Lithium Cell Assembly 7KW 0



 2. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



High Power Portable Battery Spot Welder Equipment For Lithium Cell Assembly 7KW 1



 3. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



High Power Portable Battery Spot Welder Equipment For Lithium Cell Assembly 7KW 2



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
