Pneumatic Battery Welding Equipment Lithium High Precision Machine Type

Pneumatic Battery Welding Equipment Lithium High Precision Machine Type

  • High Light

    Pneumatic Battery Welding Equipment

    ,

    High Precision Battery Welding Equipment

    ,

    Pneumatic Lithium Welding Machine

  • Product Selling Point
    Integrated
  • Working Air Source
    0.2-0.8Mpa
  • Working Method
    Pneumatic + Foot Switch
  • Product Name
    Portable Spot Welder
  • Welding Speed
    200P/M (Max)
  • Applicable Material
    Nickel Plate/steel Nickel Plating
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

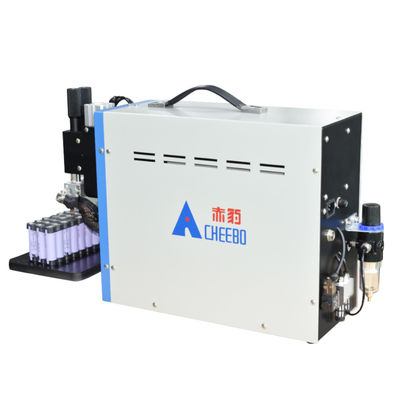

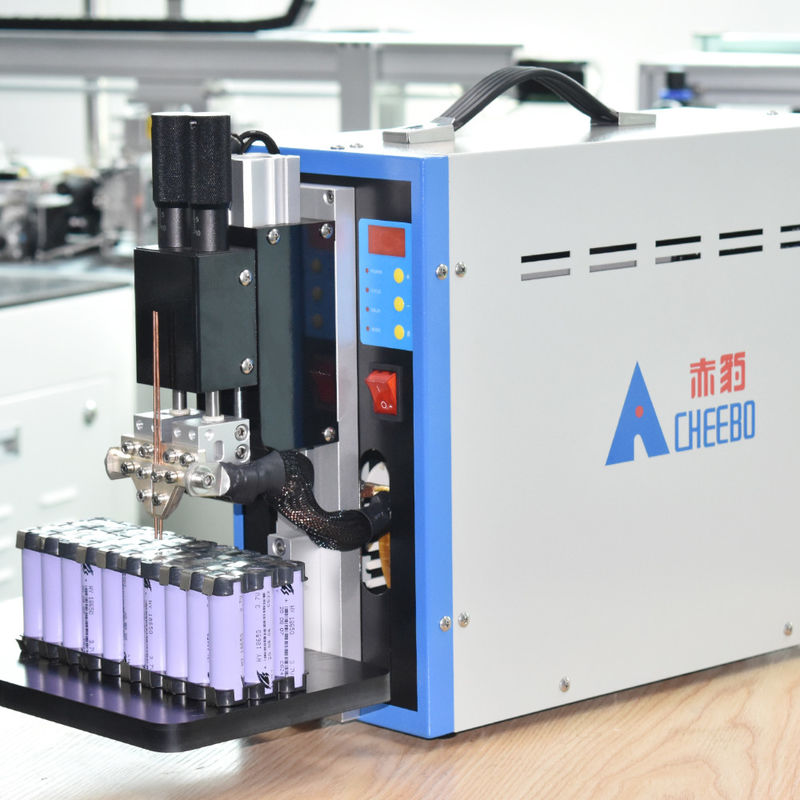

Pneumatic Battery Welding Equipment Lithium High Precision Machine Type

Pneumatic Battery Welding Equipment Lithium High Precision Machine Type


Equipment introduction



Single-pulse, multi-pulse and double-pulse welding can be realized by single-chip microcomputer control.



Lithium battery welder adopts proprietary output energy optimization algorithm, reasonable conversion of output voltage and output current, strong welding ability, firm solder joint, error-free welding, low ignition and excellent surface quality.



Independent welding needle, spring cushioning design, accurate adjustment of welding pressure.



The welding joint platform can be adjusted up and down, and it can weld all kinds of batteries.



Imported alumina copper electrode, pure copper welding cable, pure copper electrode chuck and other high-quality accessories, the machine is durable.



Intelligent chip precision control, import control chip, microsecond corresponding chip integration process, small size, can work for a long time, and stable operation.



All parameters are set digitally, and the parameter adjustment is stable, intuitive and accurate.



The vertical spot welding is adopted and the pressure depth can be adjusted.



It adopts pneumatic precision welding head independently developed by CHEEBO, which has accurate pressure adjustment control.



Digital LED shows that the adjustment of equipment parameters is more intuitive and easy to learn and operate.



Microcomputer technology control, grid voltage control, automatic tracking compensation.



Portable lithium battery spot welding machine adopts integrated design, which saves space and is easy to carry.



The welder can store multiple programs in advance and can be changed and recalled at will.





Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



This product is currently widely popular AC pulse spot welding machine, using microcomputer single-chip microcomputer control, stable and



reliable performance. Industrial grade welding equipment. It is used for power lithium-ion battery module welding, 3C lithium-ion battery pack



welding, nickel-metal hydride battery pack welding, hardware small parts welding, electronic and electrical parts welding, wire terminal welding,



stainless steel parts welding, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product maintenance



and proofing.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 25KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding
