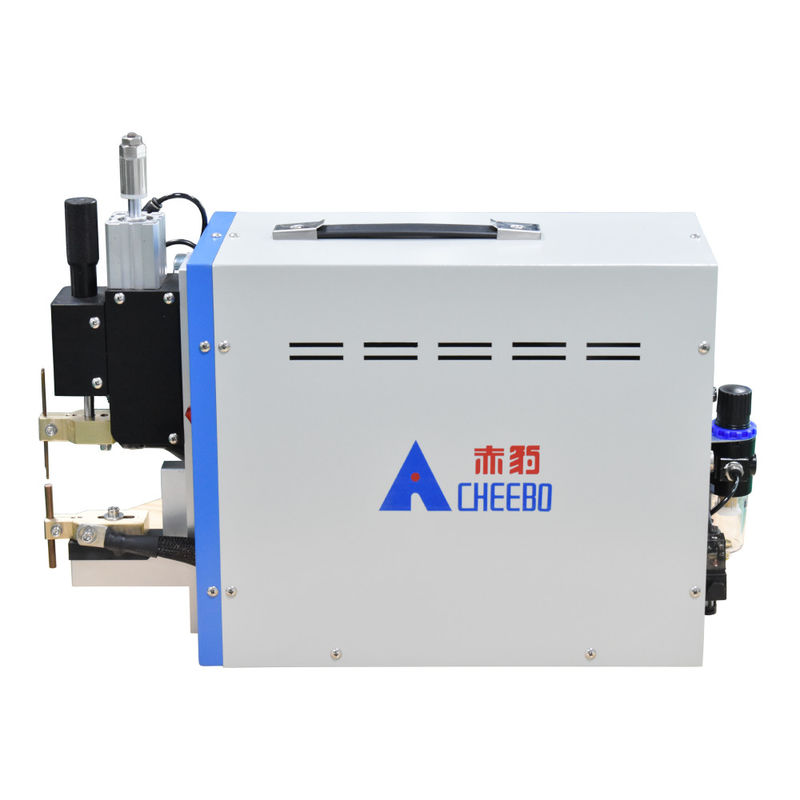

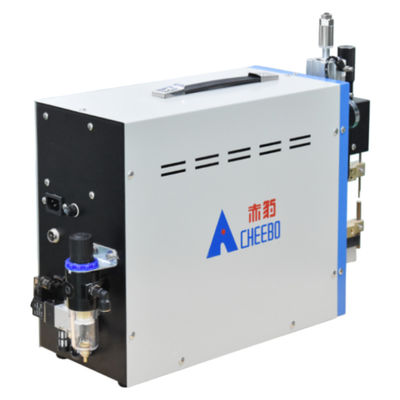

Portable Battery Spot Welder Used For Metal Sheet Welding

Portable Battery Spot Welder Used For Metal Sheet Welding

  • High Light

    Portable Welding Power Supply

    ,

    Portable Welder For 18650 Lithium Batteries

    ,

    Spot Welder For 18650 Lithium Batteries

  • Spot Welding Method
    Dutt Welding
  • Product Name
    Portable Resistance Welding Machine
  • Welding Pressure
    1-10KG/F (adjustable)
  • Driving Mode
    Pneumatic Compression
  • Appearance Material
    Aluminum Alloy
  • Display
    LED Digital
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXDH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Portable Battery Spot Welder Used For Metal Sheet Welding

Portable Battery Spot Welder Used For Metal Sheet Welding


Equipment introduction



● It is used for welding of small hardware parts, electronic and electrical parts, wire terminals, stainless steel parts, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product maintenance proofing and other work.



● Single-pulse, multi-pulse and double-pulse welding can be realized by single-chip microcomputer control.


● Using proprietary output energy optimization algorithm, reasonable conversion of output voltage and output current, strong welding ability, firm welding joint, no welding error, low ignition and excellent surface quality.


● The pneumatic precision welding head independently developed by CHEEBO ensures accurate pressure adjustment and control.


● Independent welding needle, spring buffer design, accurate adjustment of welding pressure.


● The welding joint platform can be adjusted up and down, and it can weld all kinds of batteries.


● Imported high-quality alumina copper electrodes, pure copper welding cables, pure copper electrode clips and other accessories to make the machine durable.


● Intelligent chip precision control, import control chip, microsecond corresponding chip integration process, small size, can work for a long time, and stable operation.


● All parameters are set digitally, and the parameter adjustment is stable, intuitive and accurate.


● Vertical spot welding is adopted, and the pressure depth can be adjusted.


● Digital LED shows that the adjustment of equipment parameters is more intuitive and easy to learn and operate.


● Microcomputer technology control, grid voltage control, automatic tracking compensation.


● Portable spot welding machine adopts integrated design, which saves space and is easy to carry.


● The welding machine can store multiple programs and can be changed and called freely.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Scope of application



1. Wire terminal                 2. Metal sheet welding        3. Hardware welding          4. Metal jewelry welding



Portable Battery Spot Welder Used For Metal Sheet Welding 0                    Portable Battery Spot Welder Used For Metal Sheet Welding 1                    Portable Battery Spot Welder Used For Metal Sheet Welding 2                  Portable Battery Spot Welder Used For Metal Sheet Welding 3



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding material Metallic Welding needle Optional as required
Supply current 3600A Welding speed 200P/M
Spot welding method Dutt welding Welding pressure 5KG/F
Equipment power 3KW/7KW/12KW Equipment size 560MM*170MM*330MM
Driving mode Pneumatic Machine Weight 20KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Debugging project
  1.  Welding pressure: 1-10 kg
  2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
  3.  Air pressure regulation
  4.  Adjustment of needle extension length
  5.  Adjust the lower position of the welding head
  6.  Adjust the spacing between the left and right pins
Function Introduction



 1. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.



Portable Battery Spot Welder Used For Metal Sheet Welding 4



 2. Quality accessories

Imported aluminum oxide copper electrode, pure copper welding cable, pure copper electrode clamp, etc., the machine is durable.



Portable Battery Spot Welder Used For Metal Sheet Welding 5



 3. High quality cable
Pure copper cable, with low conductor resistance, large current-carrying capacity and thick enough, does not generate heat when welding.



Portable Battery Spot Welder Used For Metal Sheet Welding 6



Announcements
  1.  Polish the welding needle regularly.
  2.  Regularly check whether there is loosening in each part.
  3.  Do not disassemble circuit components without permission.
  4.  Periodically clean welding dust from all parts of the device.
  5.  Check the lubrication degree of each moving part every month
  6.  Please read the instructions carefully before operation and operate according to the specifications of the instructions.
