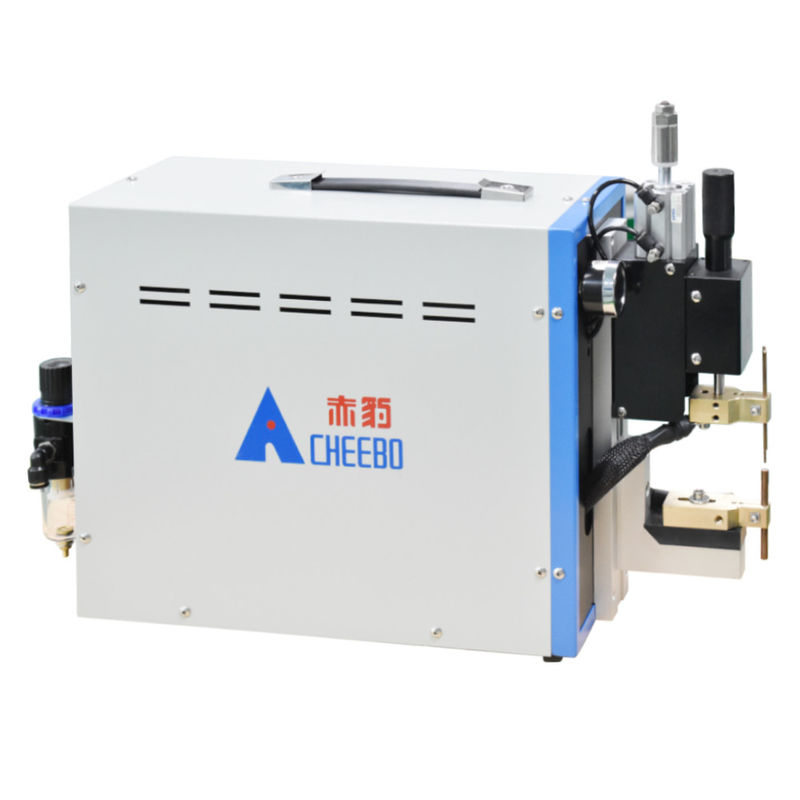

Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine

Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine

  • High Light

    AC Lithium Cell Spot Welding Machine

    ,

    Lithium Cell Spot Welding Machine 110V

    ,

    Portable Battery Welder 110V

  • Welding Current
    3200A (Max)
  • Power Output
    AC
  • Power Supply
    220V/110V
  • Air Source Specification
    0.2-0.8Mpa
  • Size
    56CM*17CM*33CM
  • Product Name
    Portable Resistance Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXDH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine

Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine


Equipment introduction



● Suitable for the welding of small hardware parts, electronic and electrical parts, wire terminals, stainless steel parts, metal jewelry,

copper products, aluminum products, etc. It is also applicable to product maintenance and proofing and other work.



● Through single-chip microcomputer control, single pulse, multi-pulse and double pulse welding can be realized.



● Using the proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong

welding ability, firm welding joint, no welding error, low ignition, excellent surface quality.



●CHEEBO Self-developed pneumatic precision welding head, to ensure the accurate adjustment and control of pressure.



● Independent welding needle, spring buffer design, accurately adjust the welding pressure.



● The welding joint platform can be adjusted up and down, and can weld all kinds of batteries.



● Imported high-quality alumina copper electrode, pure copper welded cable, pure copper electrode clip and other accessories,

make the machine durable.



● Intelligent chip precision control, imported control chip, microsecond level corresponding chip integration process, small volume,

can work for a long time, and stable operation.



● All the parameters are set by numbers, and the parameter adjustment is stable, intuitive and accurate.



● Vertical spot welding with adjustable pressure depth.



● Digital LED display, the adjustment of device parameters is more intuitive, easy to learn and operate.



● Microcomputer technology control, power grid voltage control, automatic tracking and compensation.



● Portable spot welding machine adopts an integrated design to save space and is easy to carry.



● The welder can store multiple programs and call.



● Compact structure, small size, high power, large industrial circuit design, the welding process is safe and reliable.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding material Metallic Welding needle Optional as required
Supply current 3600A Welding speed 200P/M
Spot welding method Dutt welding Welding pressure 5KG/F
Equipment power 3KW/7KW/12KW Equipment size 560MM*170MM*330MM
Driving mode Pneumatic Machine Weight 20KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Scope of application



1. Wire terminal                  2. Metal sheet welding        3. Hardware welding          4. Metal jewelry welding



Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine 0                    Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine 1                    Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine 2                    Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine 3



Function Introduction



 1. High quality cable
Pure copper cable, with low conductor resistance, large current-carrying capacity and thick enough, does not generate heat when welding.



Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine 4

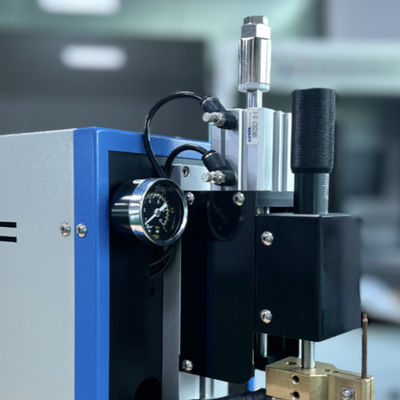

 2. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine 5



 3. Quality accessories

Imported aluminum oxide copper electrode, pure copper welding cable, pure copper electrode clamp, etc., the machine is durable.



Portable Impact Spot Welder Pneumatic Foot-Type Resistance Spot Welding Machine 6



Debugging project
  1.  Welding pressure: 1-10 kg
  2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
  3.  Air pressure regulation
  4.  Adjustment of needle extension length
  5.  Adjust the lower position of the welding head
  6.  Adjust the spacing between the left and right pins
Announcements
  1. Polish the welding needle regularly.
  2. Regularly check whether there is loosening in each part.
  3. Do not disassemble circuit components without permission.
  4. Periodically clean welding dust from all parts of the device.
  5. Check the lubrication degree of each moving part every month
  6. Please read the instructions carefully before operation and operate according to the specifications of the instructions.
