Semi Automatic Foot Type Pneumatic Battery Tab Welding Machine

Semi Automatic Foot Type Pneumatic Battery Tab Welding Machine

  • High Light

    Semi Automatic CCD Tester

    ,

    Foot Type CCD Tester

    ,

    Pneumatic Battery Tab Welding Machine

  • Product Name
    Transistor Pneumatic Lithium Battery Spot Welder
  • Max. Welding Thickness
    0.04-0.2mm
  • Key Selling Points
    High Precision
  • Driving Mode
    Pneumatic
  • Warranty Of Core Components
    1 Year
  • Core Components
    Power Supply, Welding Head
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Semi Automatic Foot Type Pneumatic Battery Tab Welding Machine

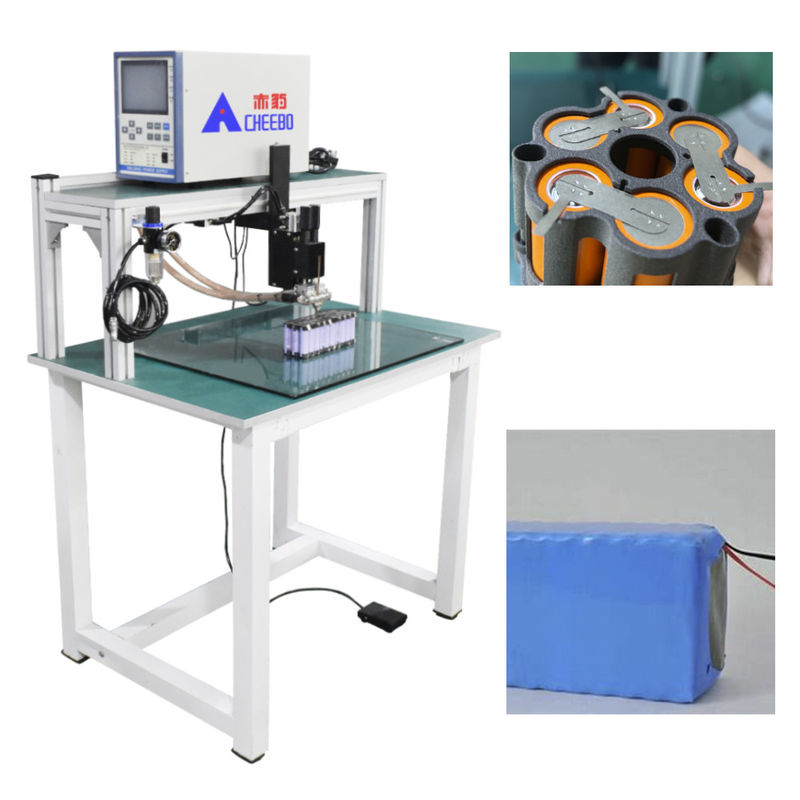

Semi-Automatic Foot Type Pneumatic Transistor Cylindrical Lithium Battery Spot Welder




Application scope of the product



Power lithium-ion battery module, 3C lithium-ion battery pack, nickel-metal hydride battery pack, hardware small parts, electronic and electrical



parts, wire terminals, stainless steel parts, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product



maintenance proofing and other work.





Equipment introduction



● Welding power control adopts switch switching method, which can realise small, high-efficiency and high-output welding.


● Welding current rises very quickly, most suitable for ultra-precision welding.


● There are three types of control: ①constant current control ②constant voltage control ③combination of constant current and constant voltage control.


● Energy stored in the capacitor is used for welding, which can be used in small power conditions.


● Real-time dynamic detection of current, voltage, power and resistance waveforms.


● Automatic welding current monitoring function, can effectively monitor the welding output current, welding current exceeds the alarm in time to replenish the welding.


● Precision microcomputer technology control, can save multiple programmes and change calls at will.


● Proprietary OUTPUT ENERGY optimisation algorithm, reasonable output voltage and output current conversion, strong welding capacity, firm welding joints, no need to weld, small cremation, good welding quality.


● Industrial circuit design, safe and reliable circuit.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent the damage caused to the desktop during welding. At the same time, it can increase the fluency of welding and increase the welding efficiency.



Semi Automatic Foot Type Pneumatic Battery Tab Welding Machine 0



 2. Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Semi Automatic Foot Type Pneumatic Battery Tab Welding Machine 1



 3. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

Semi Automatic Foot Type Pneumatic Battery Tab Welding Machine 2



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
