Industrial Li Ion Battery Tab Spot Welding Machine Bipolar Transistor Type

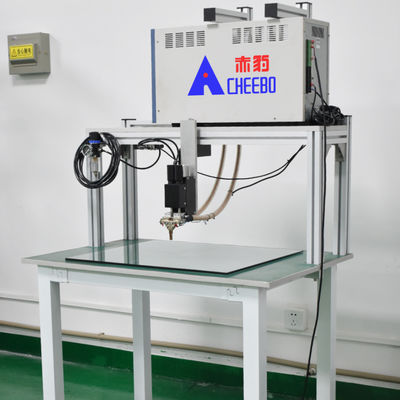

Industrial Li Ion Battery Tab Spot Welding Machine Bipolar Transistor Type

  • High Light

    Transistor Type Bench Top Spot Welder

    ,

    Li Ion Bench Top Spot Welder

    ,

    Transistor Type Li Ion Spot Welder

  • Power Supply
    220V 50/60HZ
  • Product Name
    Bipolar Transistor Spot Welding Machine
  • Maximum Welding Current
    5000A
  • Maximum Voltage
    30V (can Be Set By Oneself)
  • Uses
    Battery Pack Welding
  • Welding Speed
    200P/M (Max)
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5B
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Industrial Li Ion Battery Tab Spot Welding Machine Bipolar Transistor Type

Industrial Li Ion Battery Tab Spot Welding Machine Bipolar Transistor Type


Equipment introduction



● The use of self-developed precision welding head, accurate pressure adjustment and control.


● The bipolar output eliminates the welding polarity effect, makes the energy on both sides of the electrode consistent, and can effectively eliminate the phenomenon of welding needle sticking.


● In bipolar welding, the welding voltage / current flows from the left needle to the right needle in the first welding and the welding energy flows from the right needle to the left needle in the second welding.


● It can be used for both convex spot welding needle and sharp spot welding needle.


● There are three control modes: constant current, constant voltage, constant current, constant pressure combination mode.


● The built-in pre-inspection function can be used to judge whether the workpiece is electrified or not before welding.


● The welding current of lithium battery spot welder can be switched quickly and effectively through transistor without transformer.


● No need to weld transformer, small size, light weight, beautiful.


● The welding power supply is controlled by switching mode, which can achieve small and efficient welding and high output.


● The welding current of the power source rises fast, and the high quality welding can be realized in a short time.


● Increase the function of continuous spot welding to effectively improve production efficiency.


● Independent research and development of precision welding head, precise pressure adjustment control.


● Controlled by microcomputer technology, the welding current, voltage, power and resistance waveforms can be monitored dynamically in real time.


● 5.7inch HD LED display screen, convenient and intuitive adjustment of equipment parameters, and can store multiple programs in advance.


● Thicken explosion-proof glass to protect the desktop from wear and tear during welding to ensure smooth welding.


● Vertical spot welding is used for welding, and the indentation depth is manually controlled.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Bipolar transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1.Pure copper cable
Coarse pure copper cable, low wire resistance, large bearing capacity, thick enough, no thermal current lossless transfer to the welding head to ensure the welding current.



Industrial Li Ion Battery Tab Spot Welding Machine Bipolar Transistor Type 0

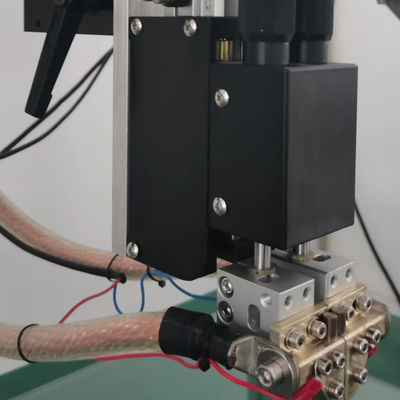

 2.Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Industrial Li Ion Battery Tab Spot Welding Machine Bipolar Transistor Type 1



 3.Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



Industrial Li Ion Battery Tab Spot Welding Machine Bipolar Transistor Type 2



Equipment workflow



Power on - display 600 OE self-test screen - press the up arrow to enter the system - Place the product to be welded on the table - pedal -



press the welding head - spot welding completed - welding head return





FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
