Table Type Lithium Battery Tab Spot Welding Machine 5000A Bipolar Power Supply

Table Type Lithium Battery Tab Spot Welding Machine 5000A Bipolar Power Supply

  • High Light

    Battery Tab Spot Welding Machine 5000A

    ,

    Table Type Tab Spot Welding Machine

    ,

    Table Type Lithium Battery Welding Machine

  • Color
    Silver White
  • Table Frame Material
    Stainless Steel
  • Equipment Power
    550W
  • Pressure Regulation
    1-10KG/F
  • Welding Mode
    Transistor
  • Device Type
    Semi-automatic
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5B
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Table Type Lithium Battery Tab Spot Welding Machine 5000A Bipolar Power Supply

Table Type Lithium Battery Tab Spot Welding Machine 5000A Bipolar Power Supply


Equipment introduction



● Adopt self-developed precision welding head, with accurate pressure adjustment and control.


● Bipolar output eliminates the welding polarity effect, makes the energy on both sides of covered electrode consistent, and can effectively eliminate the phenomenon of needle sticking.


● In bipolar welding, the welding voltage/current flows from the left needle to the right needle during the first welding, and the welding energy flows from the right needle to the left needle during the second welding.


● It can be applied to bump welding needle or sharp spot welding needle for welding.


● There are three control modes: constant current, constant voltage, constant current and constant voltage combination mode.


Built-in pre-inspection function can be used to judge whether the workpiece is electrified before welding.


● The welding current of spot welding machine for lithium battery can be quickly and effectively switched by transistor without transformer.


● No need to weld transformer, small size, light weight and beautiful appearance.


● The welding power supply is controlled by switch mode, which can realize small and efficient welding and high output.


● The welding current of power supply rises quickly, which can realize high-quality welding in a short time.


● Increase the function of continuous spot welding to effectively improve production efficiency.


● Independent research and development of precision welding head, precise pressure adjustment and control.


● Controlled by microcomputer technology, welding current, voltage, power and resistance waveform can be dynamically monitored in real time.


● 5.7-inch high-definition LED display, convenient and intuitive adjustment of equipment parameters, and multiple programs can be stored in advance.


● Thicken explosion-proof glass to protect the desktop from abrasion during welding and ensure smooth welding.


● Vertical spot welding is adopted for welding, and the press-in depth is controlled manually.



Equipment workflow



Power on - display 600 OE self-test screen - press the up arrow to enter the system - Place the product to be welded on the table - pedal -



press the welding head - spot welding completed - welding head return



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Bipolar transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding





Function Introduction

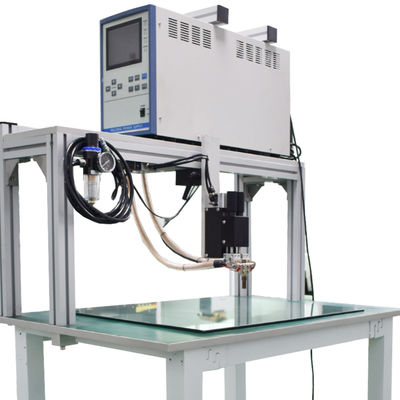

 1.Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Table Type Lithium Battery Tab Spot Welding Machine 5000A Bipolar Power Supply 0

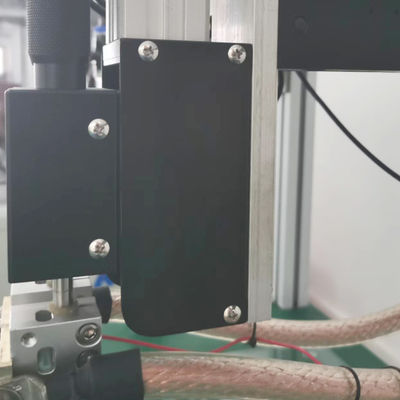

 2.Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



Table Type Lithium Battery Tab Spot Welding Machine 5000A Bipolar Power Supply 1



 3.Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Table Type Lithium Battery Tab Spot Welding Machine 5000A Bipolar Power Supply 2



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
