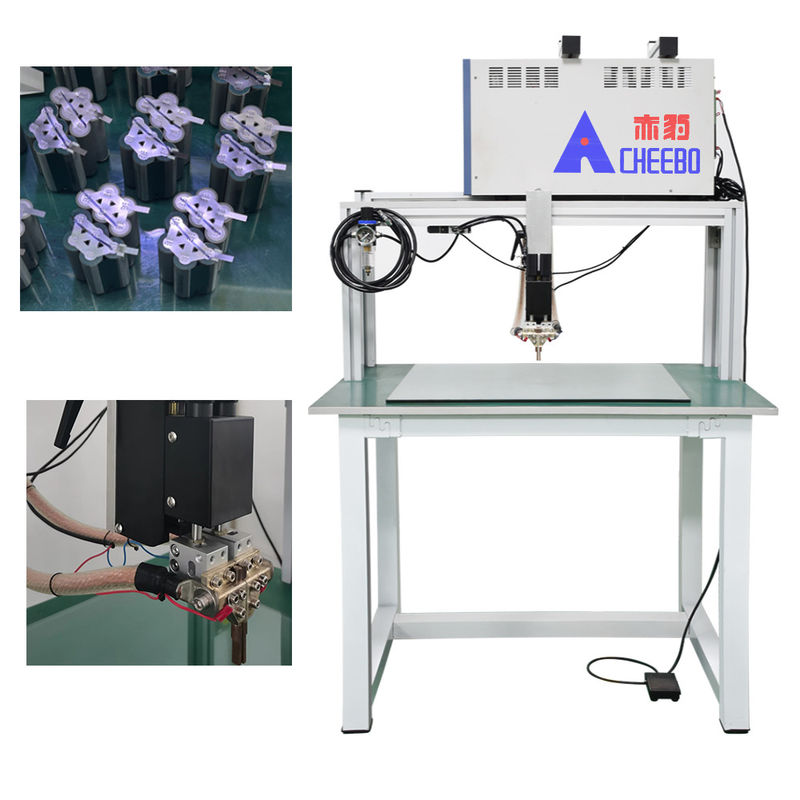

Semi Automatic Table Spot Welder 18650 Pedal Type Battery Cell Use

Semi Automatic Table Spot Welder 18650 Pedal Type Battery Cell Use

  • High Light

    Table Spot Welder 18650

    ,

    Pedal Type Table Spot Welder

    ,

    Battery Cell Welder 18650

  • Showroom Location
    None
  • Marketing Type
    New Product 2020
  • Rated Capacity
    5KVA
  • Max. Welding Thickness
    0.04-0.2mm
  • Weight (KG)
    30 KG
  • After-sales Service Provided
    Online Service Provided
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5B
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Semi Automatic Table Spot Welder 18650 Pedal Type Battery Cell Use

Semi-Automatic 18650 Lithium Battery Spot Welder Pedal Type Transistor Power Supply


Equipment introduction



● Using independently developed precision welding head, accurate pressure regulation and control.



● The bipolar output eliminates the welding polarity effect, makes the energy on both sides of the electrode consistent, and can effectively eliminate

the phenomenon of welding needle sticking needle.



● In bipolar welding, the welding voltage / current flows from the left needle to the right needle during the first welding, and the

welding energy flows from the right needle to the left needle during the second welding.



● It can be used for welding with convex needle or pointed needle.



● There are three control modes: constant current, constant pressure, constant current, constant pressure combination mode.



● Built-in pre-check function, which can be used to judge whether the workpiece is electrified before welding.



● The welding current of the lithium battery spot welding machine is switched quickly and effectively through the transistors without a transformer.

● No need for welding transformer, small volume, light weight, beautiful.



● Welding power supply is controlled by switch mode, which can achieve small and efficient welding and high output.



● The welding current of the power supply rises quickly, and can achieve high quality welding in a short time.



● Add the continuous spot welding function to effectively improve the production efficiency.



● Independent research and development of precision welding head, accurate pressure regulation and control.



● Using microcomputer technology control, real-time dynamic monitoring of welding current, voltage, power, resistance waveform.



● 5.7-inch HD LED display, convenient and intuitive adjustment of equipment parameters, and can store multiple programs in advance.



● Thickness of explosion-proof glass, protect the table top from wear when welding, to ensure smooth welding.



● The welding adopts vertical spot welding, manual control of pressure depth.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Bipolar transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Equipment workflow



Power on - display 600 OE self-test screen - press the up arrow to enter the system - Place the product to be welded on the table - pedal -



press the welding head - spot welding completed - welding head return



Function Introduction

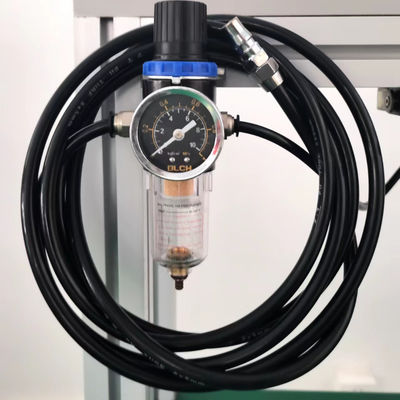

 1.Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Semi Automatic Table Spot Welder 18650 Pedal Type Battery Cell Use 0

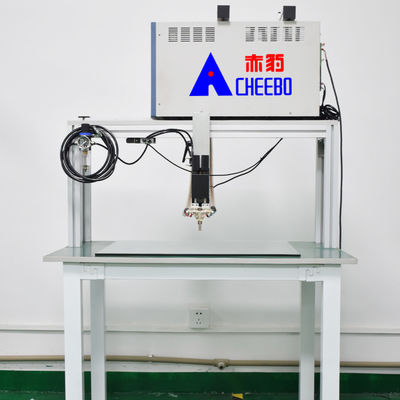

 2.Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Semi Automatic Table Spot Welder 18650 Pedal Type Battery Cell Use 1



 3. Bipolar transistor welding power supply

Bipolar welding, welding voltage/current, the first welding from the left welding needle to the right welding needle, the second welding welding energy from the right welding needle to the left welding needle. Welding energy output the most stable power supply, real-time display of welding voltage and current waveform, current rise fast, can achieve high quality welding in a short time.



Semi Automatic Table Spot Welder 18650 Pedal Type Battery Cell Use 2



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
