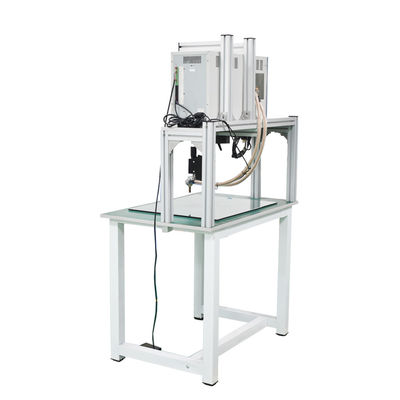

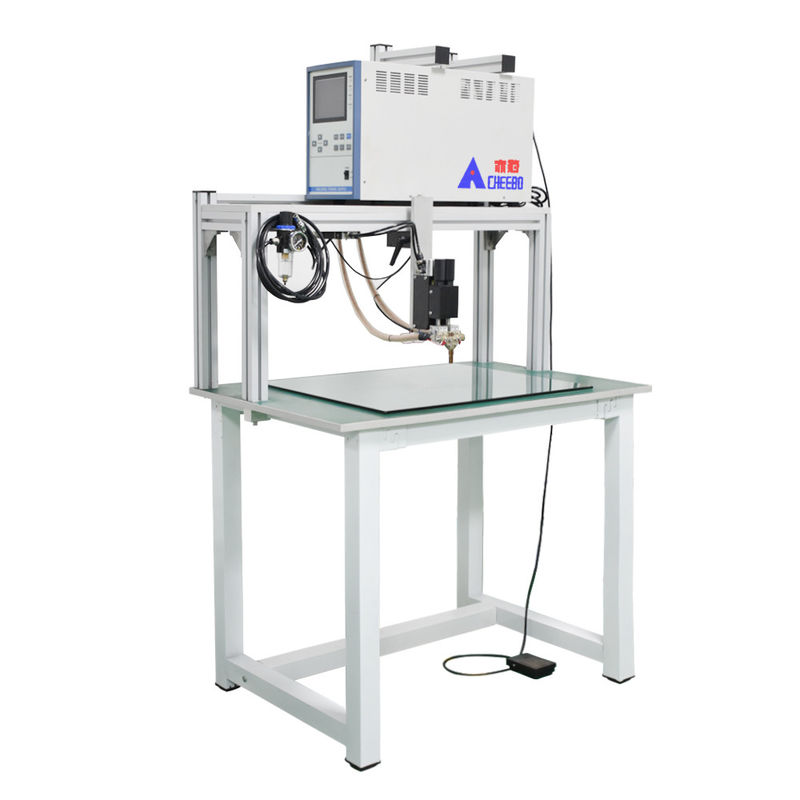

Pneumatic Gantry Frame Type Spot Welder For Resistance Type Cell Use

Pneumatic Gantry Frame Type Spot Welder For Resistance Type Cell Use

  • High Light

    Small Spot Welder For Battery Tabs

    ,

    Spot Welder For Battery Tabs 220V

    ,

    Cell Spot Welder 220V

  • Core Components
    Eectric Welding Head, Power Supply
  • Frame Material
    Stainless Steel
  • Use
    Lithium Battery Welding
  • Voltage
    220V/110V
  • Rated Duty Cycle
    Bipolar Transistor Spot Welding Machine
  • Product Name
    Bipolar Transistor Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5B
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Pneumatic Gantry Frame Type Spot Welder For Resistance Type Cell Use

Pneumatic Gantry Frame Type Spot Welder For Resistance Type Cell Use


Equipment introduction



● Using the independently developed precision welding head, pressure precision adjustment and control.



● Bipolar output eliminates the welding polarity effect, makes the energy on both sides of the welding electrode consistent, and

effectively eliminates the phenomenon of welding sticky needle.



● For bipolar welding, the welding voltage / current flows from the left welding needle to the right welding needle, and the welding

energy flows from the right welding needle to the left welding needle during the second welding time.



● It can be applied to convex spot welding and tip spot welding.



● There are three control modes: constant current, constant pressure, constant current and constant pressure combination mode.



● Built-in pre-check function, which can be used to judge whether the workpiece is electrified before welding.



● The welding current of the lithium battery spot welding machine can be switched quickly and effectively through the transistors

without the transformer.



● Do not need welding transformer, small volume, light weight, beautiful.



● Welding power supply is controlled by switch mode, which can realize small and efficient welding with high yield.



● The welding current of the power supply rises quickly, and the high-quality welding is realized in a short time.



● Continuous spot welding function is added to effectively improve the production efficiency.



● Independent research and development of precision welding head, accurate pressure regulation and control.



● Microcomputer technology control, welding current, voltage, power, resistance waveform dynamic real-time monitoring.



● 5. 7-inch HD LED display, device parameters adjustment is convenient and intuitive, can store multiple programs in advance.



● With thickened explosion-proof glass, protect the table top is not easy to wear in the welding process, to ensure smooth welding.



● Use vertical spot welding mode for welding, and manually control the lowering depth.



Welding Precautions
  1.  Keep 3-5MM distance between the end face of the welding needle and the end face of the battery
  2.  For the battery specifications in a battery pack, the spot welding surface must be flush and of the same height as possible
  3.  Regularly clean the end face of the spot welding needle
Technical specification



Welding thickness 0.02-0.5MM Welding power supply Bipolar transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Welding case



Pneumatic Gantry Frame Type Spot Welder For Resistance Type Cell Use 0 Pneumatic Gantry Frame Type Spot Welder For Resistance Type Cell Use 1 Pneumatic Gantry Frame Type Spot Welder For Resistance Type Cell Use 2



Function Introduction



 1.Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



Pneumatic Gantry Frame Type Spot Welder For Resistance Type Cell Use 3



 2.Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Pneumatic Gantry Frame Type Spot Welder For Resistance Type Cell Use 4



 3. Bipolar transistor welding power supply

Bipolar welding, welding voltage/current, the first welding from the left welding needle to the right welding needle, the second welding welding energy from the right welding needle to the left welding needle. Welding energy output the most stable power supply, real-time display of welding voltage and current waveform, current rise fast, can achieve high quality welding in a short time.



Pneumatic Gantry Frame Type Spot Welder For Resistance Type Cell Use 5



Description of equipment operation flow


Power on - detect whether the WELED switch is on - place the product to be welded on the table - step on the foot pedal -



the welding head is pressed down - spot welding -Weld head down - Spot welding completed - Weld head back in place



Debuggable items
  1.  Welding pressure
  2.  Power supply data
  3.  Adjustment of spot welding stroke
  4.  Pneumatic pressure adjustment
  5.  Needle extension adjustment
FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
