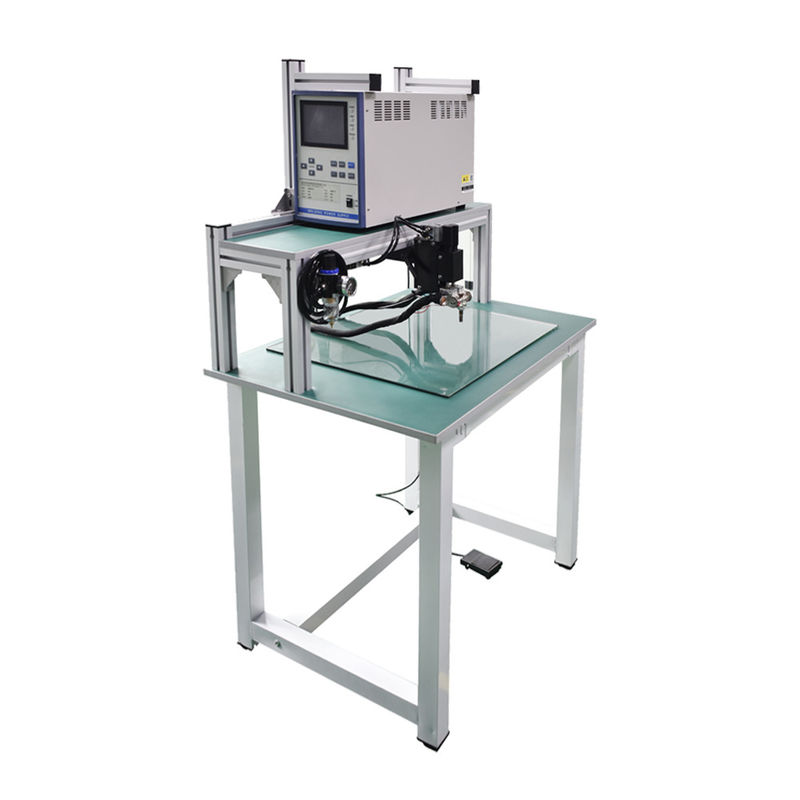

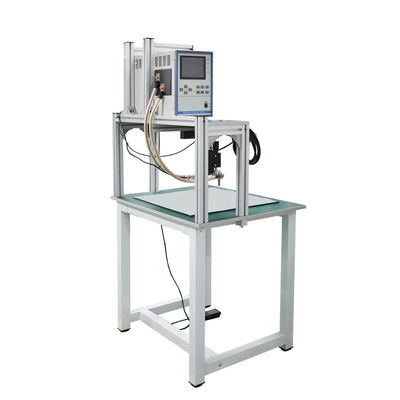

Desktop Tab Welding Machine For Battery DC Cell Spot Welding Machine

Desktop Tab Welding Machine For Battery DC Cell Spot Welding Machine

  • High Light

    Desktop Tab Welding Machine

    ,

    Tab Welding Machine For Battery

    ,

    DC Cell Spot Welding Machine

  • Warranty Period
    1 Year
  • Drive Mode
    Electric/pneumatic
  • Welding Material
    Pure Nickel/Steel Nickel Plating
  • Welding Method
    Spot Welding
  • Product Name
    Bipolar Transistor Spot Welding Machine
  • Welding Thickness
    0.02-0.5MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5B
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Desktop Tab Welding Machine For Battery DC Cell Spot Welding Machine

Desktop Tab Welding Machine For Battery DC Cell Spot Welding Machine


Equipment introduction



● Using self-developed precision welding head, pressure precise adjustment and control.


● Bipolar output eliminates the welding polarity effect, makes the energy on both sides of the welding electrode consistent, and can effectively eliminate the phenomenon of welding sticky needle.


● In bipolar welding, welding voltage/current, flow from the left welding pin to the right welding pin during the first weld, and flow from the right welding pin to the left welding pin during the second welding.


● It can be applied to bump spot welding and needle spot welding.


● It has three control modes: constant current, constant voltage, constant current and constant voltage combination mode.


● Built-in pre-check function, which can be used to determine whether the workpiece is energized before welding.


● The welding current of lithium battery spot welding machine can be switched quickly and efficiently through transistors without transformer.


● No need to weld transformer, small size, light weight, beautiful appearance.


● The welding power supply is controlled by switching mode, which can realize small but efficient welding and high output.


● The power supply welding current rises quickly, and high-quality welding is realized in a short time.


● Added continuous spot welding function, effectively improve production efficiency.


● Independent research and development of precision welding head, precise pressure adjustment control.


● Microcomputer technology control, dynamic real-time monitoring of welding current, voltage, power and resistance waveforms.


● 5.7 inch high-definition LED display, convenient and intuitive adjustment of equipment parameters, can store multiple programs in advance.


● With thickened explosion-proof glass, it protects the table from wear during the welding process and ensures smooth welding.


● Vertical spot welding is used for welding, and the pressure depth is manually controlled.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Bipolar transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 2. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted individually. Built-in pressure sensor for precise control and application of stable pressure.

Desktop Tab Welding Machine For Battery DC Cell Spot Welding Machine 0



 2.Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent damage to the table when welding. It can also increase the fluidity of welding and improve the welding efficiency.



Desktop Tab Welding Machine For Battery DC Cell Spot Welding Machine 1



 3. Bipolar transistor welding power supply

Bipolar welding, welding voltage/current, the first welding from the left welding needle to the right welding needle, the second welding welding energy from the right welding needle to the left welding needle. Welding energy output the most stable power supply, real-time display of welding voltage and current waveform, current rise fast, can achieve high quality welding in a short time.



Desktop Tab Welding Machine For Battery DC Cell Spot Welding Machine 2



  1. Welding case



Desktop Tab Welding Machine For Battery DC Cell Spot Welding Machine 3 Desktop Tab Welding Machine For Battery DC Cell Spot Welding Machine 4 Desktop Tab Welding Machine For Battery DC Cell Spot Welding Machine 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
