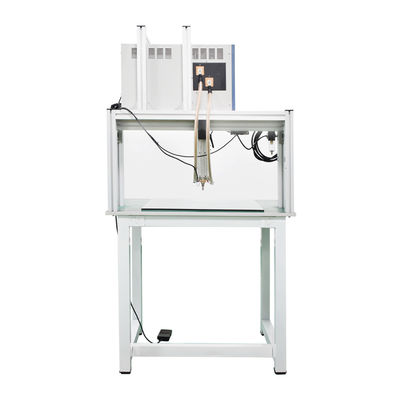

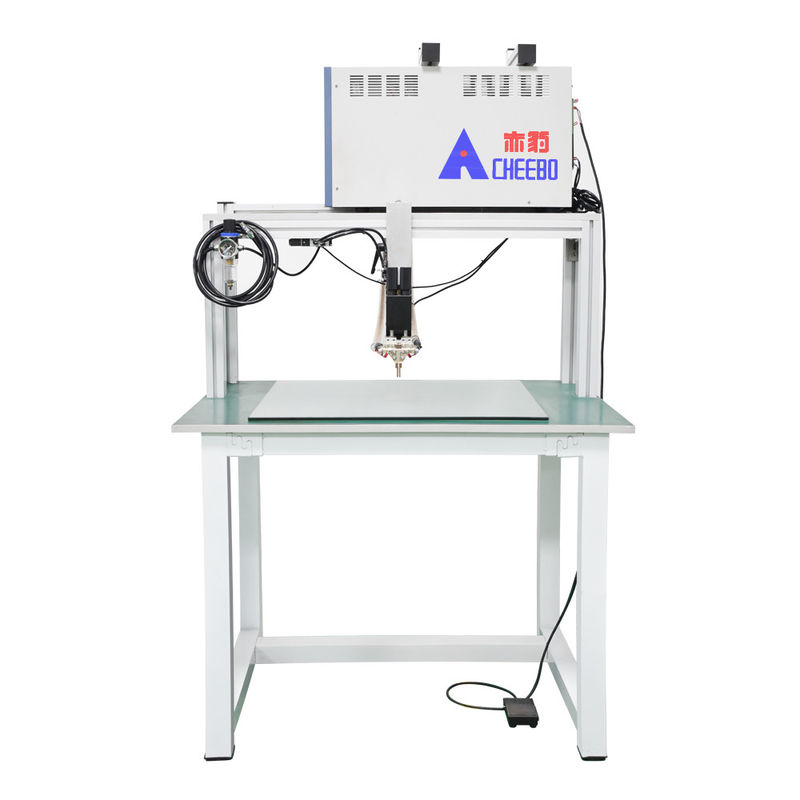

Battery Tab Spot Welding Transistor bipolar bench battery spot welding machine

Battery Tab Spot Welding Transistor bipolar bench battery spot welding machine

  • Platform Load
    70KG
  • Power Supply Type
    Bipolar Transistor
  • Product Name
    Bipolar Transistor Spot Welding Machine
  • Spot Welding Pressure
    1-10KG/F
  • Welding Speed
    200P/M
  • Welding Method
    Cusp/Convex Point
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5B
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Battery Tab Spot Welding Transistor bipolar bench battery spot welding machine

 Battery Tab Spot Welding Transistor bipolar bench battery spot welding machine


Equipment introduction



● Adopting self-developed precision welding head, the pressure is precisely adjusted and controlled.


● Bipolar output eliminates the welding polarity effect and makes the energy on both sides of the welding electrode consistent, while effectively eliminating the welding sticky pin phenomenon.


● Welding voltage/current during bipolar welding flows from the left pin to the right pin for the first weld, and welding energy flows from the right pin to the left pin for the second weld.


● Both bump spot welding and tip spot welding can be applied.


● With three control modes: constant current, constant voltage, and a combination of constant current and constant voltage.


● Built-in pre-test function can be used to determine whether the workpiece is energized before welding.


● The welding current of lithium battery spot welder can be switched quickly and efficiently by transistor without transformer.


● No welding transformer required, small size, light weight and aesthetics.


● The welding power supply is controlled by a switching method for small and efficient welds with high output.


● The power supply welding current rises quickly for high quality welding in a short time.


● Added continuous spot welding function, effectively improving production efficiency.


● Independently developed precision welding head with precise pressure adjustment control.


● Microcomputer technology control, dynamic real-time monitoring of waveform of welding current, voltage, power and resistance.


● 5.7" HD LED display, easy and intuitive adjustment of equipment parameters, multiple programs can be stored in advance.



Applicable scope



Power lithium-ion battery module assembly and welding, 3C lithium-ion battery pack welding and assembly, nickel-metal hydride battery pack spot



welding, hardware welding, electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper



products welding, aluminum products welding.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Bipolar transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



Battery Tab Spot Welding Transistor bipolar bench battery spot welding machine 0 Battery Tab Spot Welding Transistor bipolar bench battery spot welding machine 1 Battery Tab Spot Welding Transistor bipolar bench battery spot welding machine 2



Function Introduction



  1. Bipolar transistor welding power supply

Bipolar welding, welding voltage/current, the first welding from the left welding needle to the right welding needle, the second welding welding energy from the right welding needle to the left welding needle. Welding energy output the most stable power supply, real-time display of welding voltage and current waveform, current rise fast, can achieve high quality welding in a short time.



Battery Tab Spot Welding Transistor bipolar bench battery spot welding machine 3



 2.Welding head adjusting mechanism
The welded joint can be adjusted up and down to increase the distance between the desktop and the welded joint.
Can weld all kinds of different heights and different types of cells.



Battery Tab Spot Welding Transistor bipolar bench battery spot welding machine 4



 3.Pure copper cable
Coarse pure copper cable, low wire resistance, large bearing capacity, thick enough, no thermal current lossless transfer to the welding head to ensure the welding current.



Battery Tab Spot Welding Transistor bipolar bench battery spot welding machine 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
