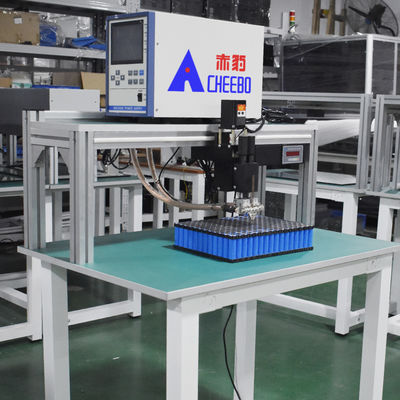

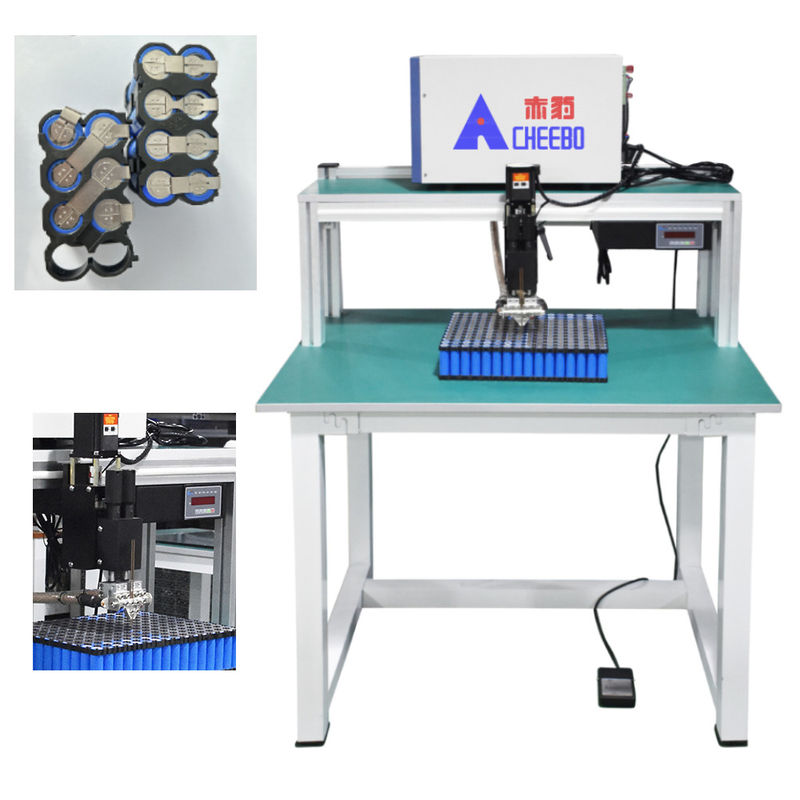

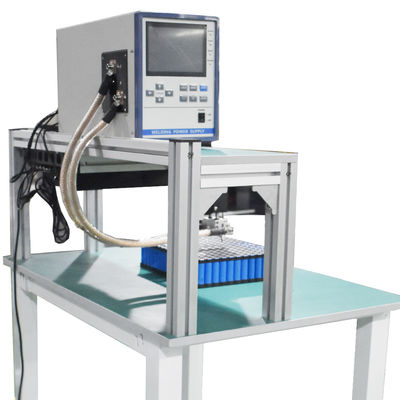

High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder

High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder

  • High Light

    Horizontal Table Spot Welding Machine

    ,

    High Precision Table Spot Welding Machine

    ,

    Horizontal 18650 Battery Welder

  • Voltage
    AC 220V ±20V
  • Warranty
    1 Year
  • Key Selling Points
    Easy To Operate
  • Color
    Silver White
  • Voltage Setting Range
    100A-999A
  • Product Name
    Transistor Electric Lithium Battery Spot Welder
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder

High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder


Equipment introduction



●CHEEBO lithium battery spot welder adopts self-developed pure electric cylinderless system with low noise and stable pressure.


●Motor drive, control box precision control, three adjustable modes of single point/semi-automatic/automatic. The welding method of the battery pack can be adjusted as needed.


●Battery welding machine adopts cheebo's self-developed precision welding head with precise pressure adjustment and control.


●Welding power control adopts switch switching mode, which can realise small, high efficiency and high output welding.


●CBLD-5A battery motion welder power supply adopts transistor welding power supply with fast current rising speed, which can achieve high quality welding in a short time.


●Equipped with continuous spot welding function, effectively improving productivity


●Independently developed precision welder head with precise pressure adjustment and control.


●Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveforms


●5.7-inch high-definition LED display, convenient and intuitive equipment parameter adjustment, can pre-store multiple programmes.


●There are three welding modes: constant voltage, constant current, and combination of constant voltage and constant current.



Technical specification
Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Function Introduction



 1. Electric precision welding head

Motor driven welding, without the need for external solenoid valves and cylinders, with low noise. Horizontal welding structure, double linear guide rail design, left and right pressure can be adjusted separately. Built in pressure sensor for precise control and stable pressure application.

High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder 0



 2. Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent the damage caused to the desktop during welding. At the same time, it can increase the fluency of welding and increase the welding efficiency.



High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder 1



 3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder 2



  1. Welding case



High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder 3       High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder 4        High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder 5





Boundary dimension

High Precision Pneumatic Battery Tab Spot Welding Machine 18650 Battery Welder 6
