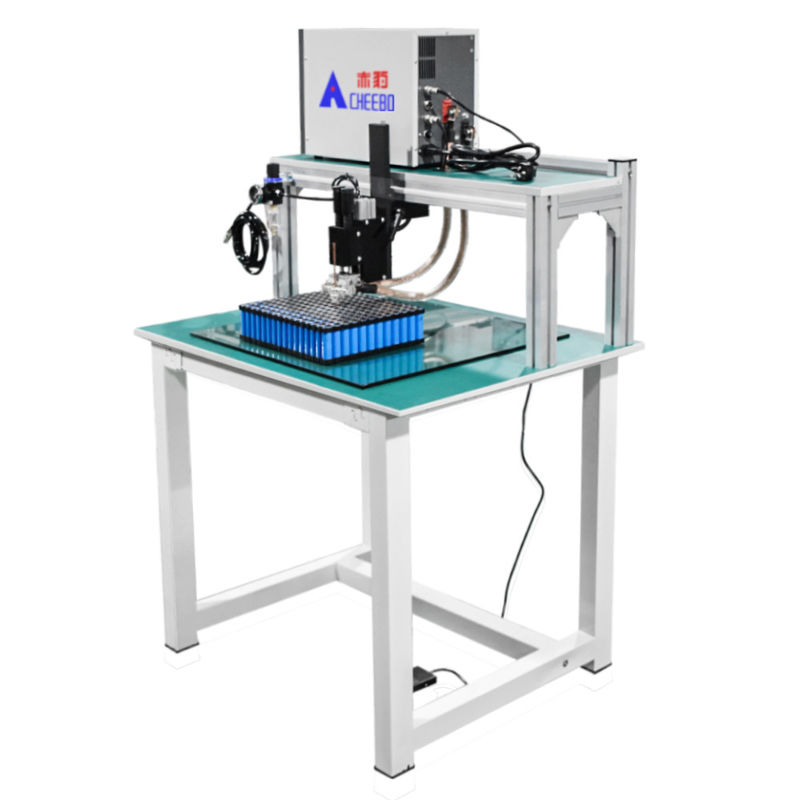

Battery Spot Welding Machine
>
High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder

High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder

Brand Name: CHEEBO Technology
Model Number: CBLQ-26
MOQ: 1 set
Price: NEGOTIABLE
Packaging Details: Marine moisture-proof wooden case
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE certification
Product Name:
Multi-pulse Pneumatic Lithium Battery Spot Welding Machine
Welding Thickness:
0.2MM
Welding Speed:
200P/M
Height Range:
130MM (over Which An Elevated Type Can Be Used)
Main Components:
Precision Welding Head, Welding Power Supply
Cable Length:
50CM
Supply Ability:
50 Set/Sets per Week
Highlight:

High Precision Battery Tab Welding Machine

,

Multi Pulse Battery Tab Welding Machine

,

Multi Pulse Nickel Spot Welder

Product Description

High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder


Equipment introduction



● Applications:Power lithium-ion battery pack welding, 3C lithium-ion battery pack welding, NiMH battery pack welding, small hardware parts welding, electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry welding, copper products welding, aluminum products welding, etc. It is also suitable for product maintenance, sampling and other welding work.


● Digital LED display, more intuitive adjustment of equipment parameters, easy to learn and operate.


● Self-developed precision welding head with precise pressure adjustment control.


● Proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong welding ability, firm and clear welding joints, no false welding and fried welding. Smaller cremation during welding, good surface quality.


● Microcomputer technology control, control grid voltage, automatic tracking compensation.


● Applicable battery size: minimum not less than 50MM, maximum not more than 130MM.


● Adopt high quality tempered glass to protect the table from wear and tear during welding process.


● Adopt the vertical spot welding method for spot welding and manually control the downward pressure depth.


● The welder can pre-store multiple programs, and these programs can be changed and called at will.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process



Device action flow description



Power on - display 600 OE self-test screen - press the up arrow to enter the system - place the product to be soldered on the desktop -



press the foot pedal - press the soldering head down - spot soldering is complete - the soldering head is back in place



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Function Introduction



 1. Multi-pulse power supply

Digital LED display, simple and convenient button adjustment, one-touch switch, yellow and green prompt light. Simple construction, small size and high power, industrial grade circuit design, safe and reliable welding process

High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder 0



 2. Explosion-proof tempered glass

High quality tempered glass protects the table top from abrasion during welding. Ensure smooth and smooth welding process.



High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder 1



 3. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder 2

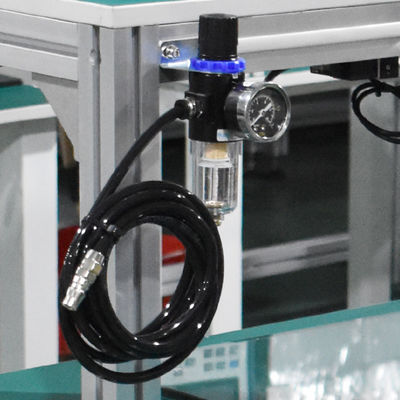

 4. Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.

High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder 3

High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder 4



  1. Welding case



High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder 5 High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder 6 High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder 7



FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

High Precision Battery Tab Welding Machine Multi Pulse Power Nickel Spot Welder 8

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
