Lithium 	Battery Tab Spot Welding Machine 12KW Power With 0.2mm Nickel Plate

Lithium Battery Tab Spot Welding Machine 12KW Power With 0.2mm Nickel Plate

  • High Light

    Lithium Battery Tab Spot Welder

    ,

    Battery Tab Spot Welder 12KW

    ,

    Nickel Spot Welder 12KW

  • Showroom Location
    China
  • Video Outgoing-inspection
    Provided
  • Product Name
    Electric Battery Spot Welding Machine
  • Voltage
    AC 220V 50/60Hz
  • Warranty
    1 Year
  • Power (kW)
    12KW
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

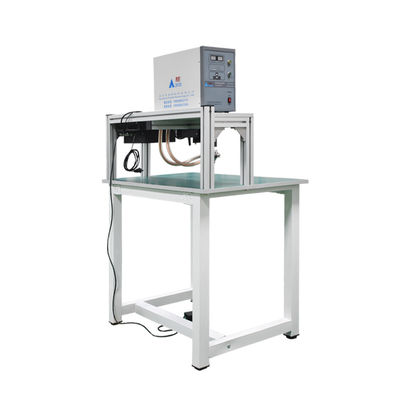

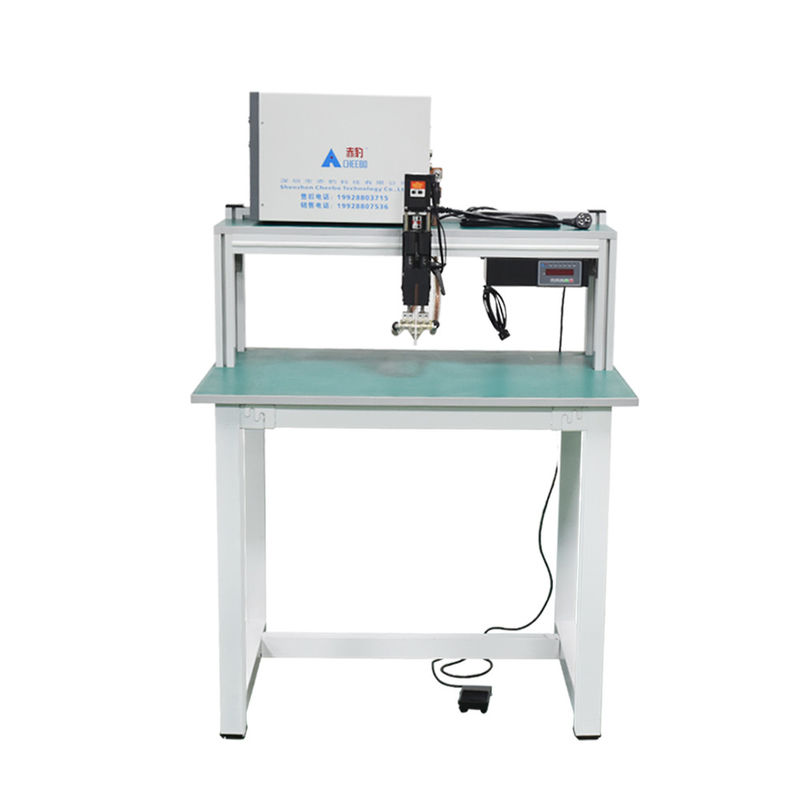

Lithium Battery Tab Spot Welding Machine 12KW Power With 0.2mm Nickel Plate

Lithium Battery Tab Spot Welding Machine 12KW Power With 0.2mm Nickel Plate


Equipment introduction



● This lithium battery point welding machine is designed with pure electric air cylinder with low noise and stable pressure.


● Motor driver, precision control of the control box, three modes can be adjusted: single point/semi -automatic/automatic.


● CBLD-26 multi-pulse lithium battery spot welding machine adopts self-developed output energy optimization algorithm. The output voltage and output current are reasonable, the welding ability is strong, the welding point is strong, the welding is weak, the cremation is small, and the surface quality is excellent.


● Independent development of precision welding heads, accurate pressure adjustment control.


● Microcomputer technology control, control power grid voltage, and automatically track compensation.


● Applicable battery specifications: minimum is not less than 50mm, and the maximum is not more than 130mm.


● The welding platform uses high -quality tempered glass to protect the desktop without wear during welding.


● The vertical welding method is welding, and the pressure depth is manually controlled.


● Digital LED display, device parameters adjustment is more intuitive, easy to learn and easy to operate.


● Welding machine can pre -store multiple programs and can be changed and called at will.


● Compact structure, small volume, large power, large industrial circuit design, welding process is safe and reliable



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




  1. Welding case



Lithium 	Battery Tab Spot Welding Machine 12KW Power With 0.2mm Nickel Plate 0 Lithium 	Battery Tab Spot Welding Machine 12KW Power With 0.2mm Nickel Plate 1 Lithium 	Battery Tab Spot Welding Machine 12KW Power With 0.2mm Nickel Plate 2



Function Introduction



 1. Electric precision welding head

Motor driven welding, without external solenoid valve and cylinder, low noise.
Horizontal welding structure, double-wire guide rail design, left and right pressure can be adjusted separately.
Built-in pressure sensor to achieve accurate control and stable pressure application.

Lithium 	Battery Tab Spot Welding Machine 12KW Power With 0.2mm Nickel Plate 3



 2. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Various heights and types of batteries can be welded.



Lithium 	Battery Tab Spot Welding Machine 12KW Power With 0.2mm Nickel Plate 4



 3. Electric control

No additional air source, low noise, fast welding speed, stable pressure.

Lithium 	Battery Tab Spot Welding Machine 12KW Power With 0.2mm Nickel Plate 5



Device action flow description



Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Turn on the power of the motion control system -- welding



head action -- Find the origin position -- Place the product to be welded on the desktop -- Step on the pedal -- welding head down -- spot welding



completed -- welding head back



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
