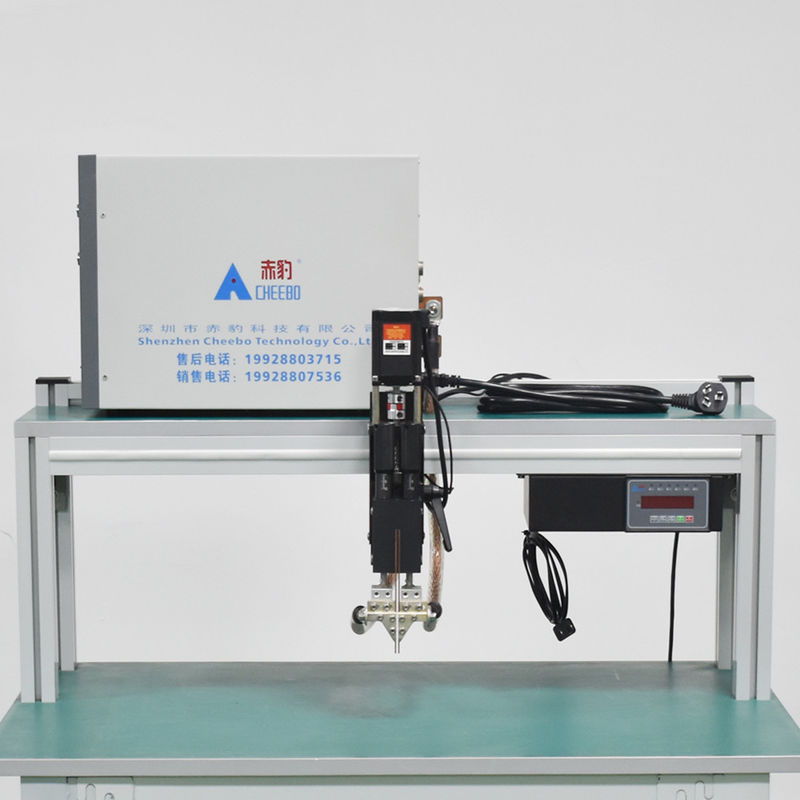

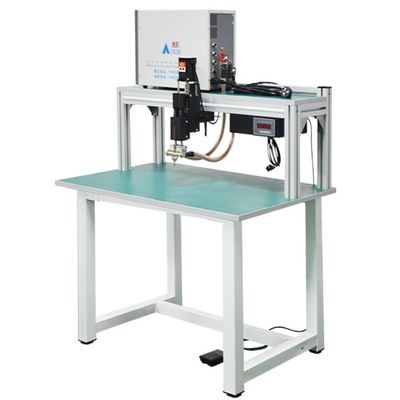

18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control

18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control

  • High Light

    Lithium Spot Welder Accessories

    ,

    Pneumatic Welding Battery Machine

    ,

    Welding Battery Machine 18650

  • Welding Head Drive Mode
    Electric
  • Power Supply Type
    Multi-pulse
  • Equipment Power
    12KW
  • Welding Speed
    180P/M(Max)
  • Product Name
    Multi-pulse Electric Lithium Battery Spot Welding Machine
  • Welding Mode
    3 Adjustable
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control

18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control


Equipment introduction



● This lithium battery spot welding machine adopts a pure electric cylinder free design, with low noise and stable pressure.


● Motor driven, control box precision control, three adjustable modes.


● The CBLD-26 multi-pulse lithium battery spot welding machine adopts a proprietary output energy optimization algorithm, with reasonable conversion of output voltage and current, strong welding ability, firm solder joints, no false soldering, small ignition, and excellent surface quality.


● Independently developed precision welding heads with precise pressure regulation control.


● Microcomputer technology control, control of power grid voltage, automatic tracking and compensation.


● Applicable battery specifications: minimum not less than 50MM, maximum not greater than 130MM. (Can be used for elevated models)


● The welding platform adopts high-quality tempered glass to protect the desktop from wear and tear during the welding process.


● Vertical spot welding method is used for welding, and the pressure depth is manually controlled.


● Digital LED display, device parameter adjustment is more intuitive, easy to learn and operate.


● The welding machine can pre store multiple programs, which can be freely changed and called


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Technical specification
  •  Main technical parameters
  •  Maximum distance between table top and welding head: 130MM
  •  Welding stroke: 10MM
  •  Manual up-down adjustment stroke: 50-130MM
  •  Screw precision: 0.1MM
  •  Spot welding pressure (head tracking system) : 5KG/F (adjustable)
  •  Welding thickness: 0.04-0.18MM (depending on the quality of power grid and the quality of welding materials)
  •  First pulse: Level 0-3 (adjustable)
  •  Second pulse: Level 0-3 (adjustable)
  •  First energy: 0-999 (adjustable)
  •  Second energy: 0-999 (adjustable)
  •  With welding needle: can be matched with a variety of specifications welding needle.
  •   The whole machine adopts AC 220V voltage, easy to operate and adjust.
  •  Power supply: Single-phase 220V 50/60HZ 2.8KW.
  •  Air source specification: No air source required
  •  Equipment weight: 60KG
  •  Welding platform load: 60KG
  •  Relocation accuracy: 0.1mm
  •  Driving mode: electric precision welding head, dual shaft pressure following system
  •  Welding speed: 180P/M (Max)
Function Introduction



 Multipulse power supply

Digital LED display, button adjustment is simple and convenient, yellow and green prompt light. Simple structure, small size, large power, industrial circuit design, safe and reliable welding process.



18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control 0



 Electric precision welding head

Single-sided double-point horizontal welding, double linear guide design left and right pressure can be adjusted separately. Welding pressure can be adjusted according to the demand, precise control.

18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control 1



 Explosion-proof tempered glass

High quality tempered glass protects the table top from abrasion during welding. Ensure smooth and smooth welding process.



18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control 2



  1. Welding case



18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control 3 18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control 4 18650 Cylinder Battery Tab Spot Welding Machine Electric Welding Motor Control 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
