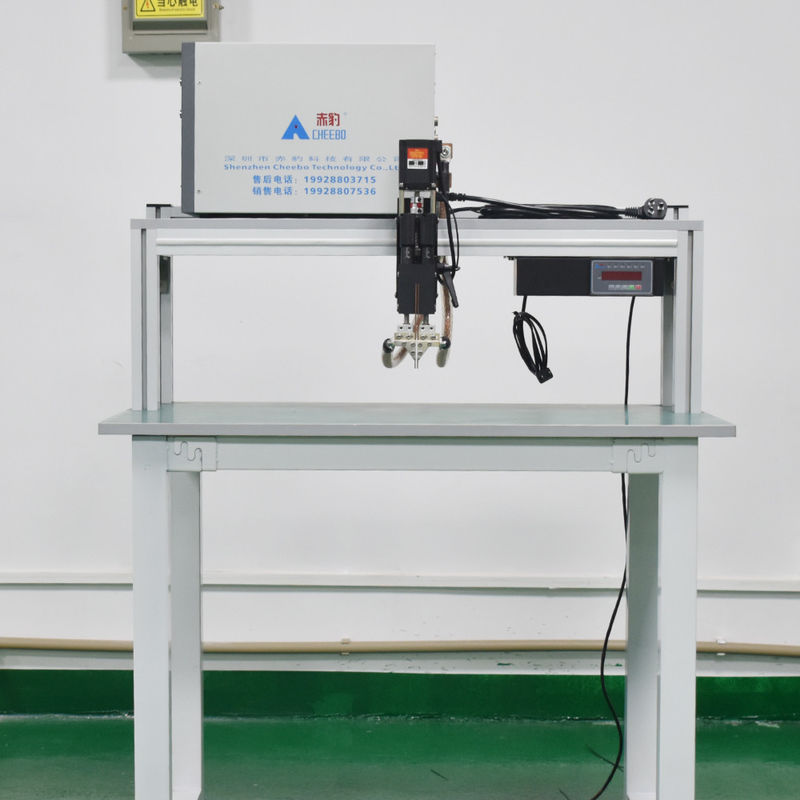

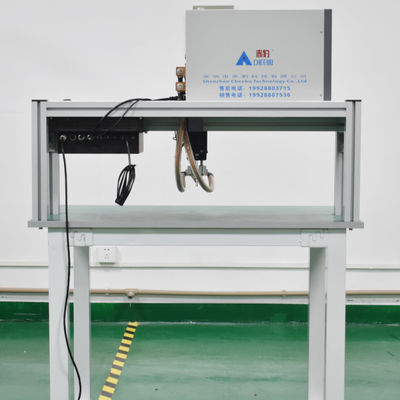

18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine

18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine

  • Rated Capacity
    5KVA
  • Max. Welding Thickness
    0.02-0.2MM
  • Voltage
    220V
  • Warranty
    1 Year
  • Weight (KG)
    60 KG
  • Thickness Of Tempered Film
    10MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine

18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine


Equipment introduction



● The lithium battery spot welding machine adopts pure electric non-cylinder design, low noise and stable pressure.


● Motor drive, control box precision control, three modes can be adjusted.


● CBLD- 26 multi-pulse lithium battery spot welding machine adopts proprietary output energy optimization algorithm, reasonable transformation of output voltage and output current, strong welding ability, firm solder joint, no virtual welding, small cremation and excellent surface quality.


● Independent research and development of precision welding head, precise pressure adjustment control.


● Microcomputer technology control, control grid voltage, automatic tracking compensation.


● Applicable battery specifications: the minimum is not less than 50MM, the maximum is not greater than 130MM.(can be used for heightening).


● The welding platform adopts high-quality tempered glass to protect the desktop from wear in the welding process.


● The vertical spot welding method is spot welding, and the pressure depth is controlled manually.


● Digital LED shows that the adjustment of equipment parameters is more intuitive, easy to learn and easy to operate.


● The welding machine can store multiple programs, which can be changed and called at will.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine 0      18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine 1         18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine 2



Boundary dimension

18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine 3

Function Introduction



 1. Multi-pulse welding power supply

Proprietary output energy optimization algorithm, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.

18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine 4



 2. Electric control

No additional air source, low noise, fast welding speed, stable pressure.

18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine 5



 3. Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent the damage caused to the desktop during welding. At the same time, it can increase the fluency of welding and increase the welding efficiency.



18650 21700 Battery Pack Manual Foot Switch Battery Tab Spot Welding Machine 6



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
