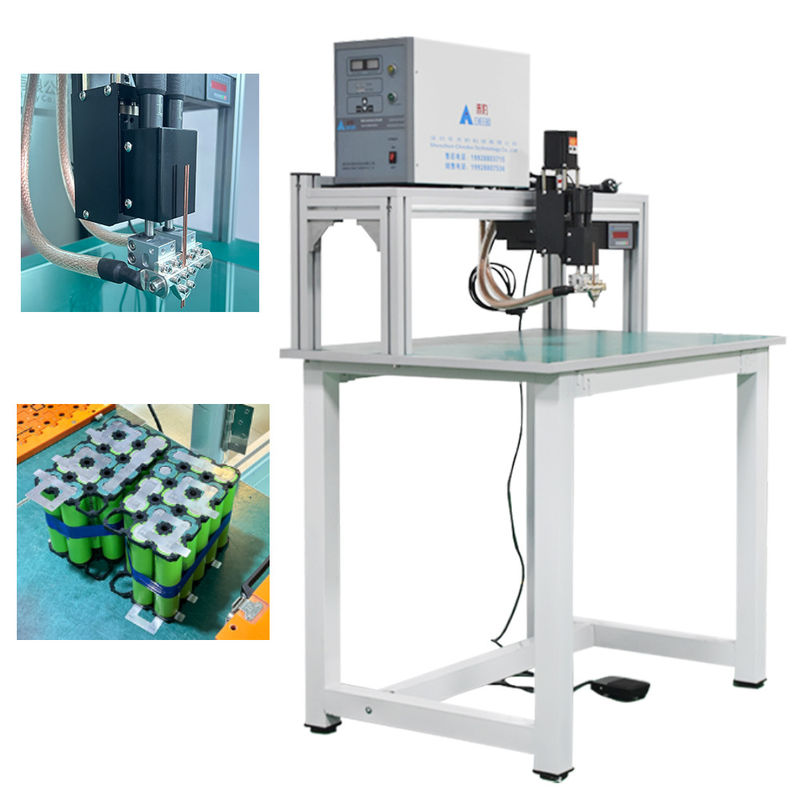

Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply

Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply

  • High Light

    Lithium Ion Table Top Spot Welder

    ,

    Cylindrical Table Top Spot Welder

    ,

    Cylindrical Cell Spot Welding Machine

  • Core Components
    Welding Power Source, Welding Head
  • Product Name
    Electric Multi-pulse Lithium Battery Spot Welding Machine
  • Max. Welding Thickness
    0.2MM
  • Dimensions
    600*900*1420mm
  • Warranty
    1 Year
  • Power (kW)
    12
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply

Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply


Function Introduction



 1. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply 0



 2. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.

Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply 1



 3. Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent the damage caused to the desktop during welding. At the same time, it can increase the fluency of welding and increase the welding efficiency.

Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply 2



 4. Electric control

No additional air source, low noise, fast welding speed, stable pressure.

Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply 3

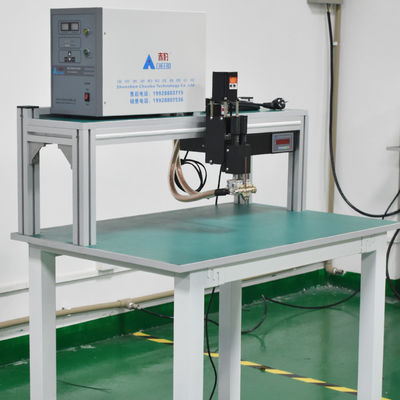

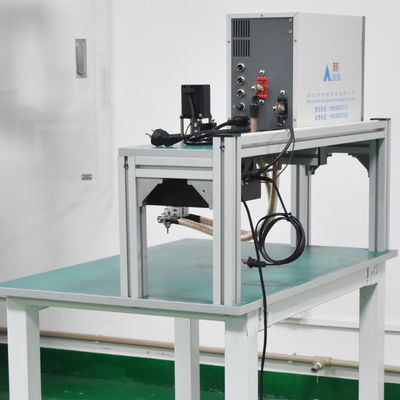

Equipment introduction



● This lithium battery spot welding machine adopts pure electric cylinderless design, low noise and stable pressure.


● Motor drive, control box precision control, three modes adjustable.


● CBLD-26 multi-pulse lithium battery spot welding machine adopts proprietary output energy optimization algorithm, output voltage and output current conversion reasonable, strong welding ability, firm solder joint, no virtual welding, small cremation, excellent surface quality.


● Independent research and development of precision welding head, precise pressure adjustment control.


● Microcomputer technology control, control grid voltage, automatic tracking compensation.


● APPLICABLE BATTERY SPECIFICATIONS: MINIMUM NOT LESS THAN 50MM, MAXIMUM NOT MORE THAN 130MM. (Can be used for heightened type)


● The welding platform adopts high-quality tempered glass to protect the table top from wear during the welding process.


● The vertical spot welding method is spot welding, and the pressure depth is manually controlled.


● Digital LED display, equipment parameter adjustment is more intuitive, easy to learn and operate.


● The welding machine can pre-store multiple programs, which can be changed and called at will.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding





  1. Welding case



Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply 4      Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply 5         Battery Tab Spot Welding Machine High Power Multi-Pulse Power Supply 6



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Service process



Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
