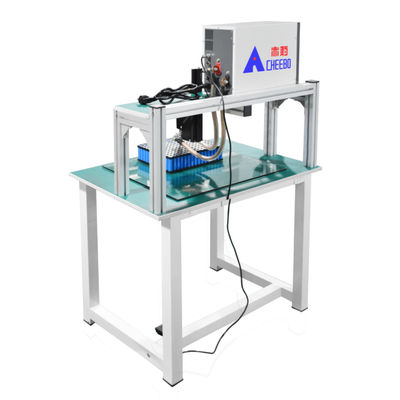

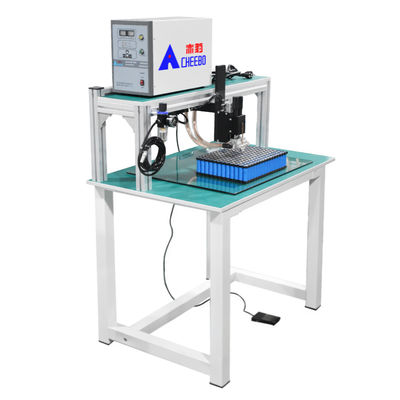

Pneumatic Foot Switch Pneumatic Spot Welding Machine For Lithium Ion Battery

Pneumatic Foot Switch Pneumatic Spot Welding Machine For Lithium Ion Battery

  • Type Of Drive
    Pneumatic
  • Welding Thickness
    Nickel Sheet
  • Usage
    Weld
  • Power(KW)
    12KW
  • Fundamentals Of Welding
    Electric Resistance Welding
  • Product Name
    Multi-pulse Pneumatic Lithium Battery Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Pneumatic Foot Switch Pneumatic Spot Welding Machine For Lithium Ion Battery

Pneumatic Foot Switch Pneumatic Spot Welding Machine For Lithium Ion Battery




Equipment introduction



Application scope of the product:Power lithium-ion battery module, 3C lithium-ion battery pack, nickel-metal hydride battery pack, hardware small parts, electronic and electrical parts, wire terminals, stainless steel parts, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product maintenance proofing and other work.



Digital LED display, the parameter adjustment of the device is more intuitive and easy to learn and easy to operate.


Self-developed precision welding head, precise pressure adjustment control.


Proprietary output energy optimization algorithm, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.


Microcomputer technology control, control voltage grid, automatic tracking compensation.


Applicable battery specifications: minimum no less than 50MM, maximum no more than 130MM. (more than can be used to increase the height)


High quality tempered glass is used to protect the desktop from wear during welding.


Vertical spot welding method for spot welding, manual control of the depth of pressure.


The welding machine can prestore multiple programs, which can be changed and invoked at will.


Compact structure, small volume, large power, large industrial circuit design, safe and reliable welding process



Equipment workflow



Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Place the product to be welded on the desktop -- Step on



the pedal -- push down the welding head -- spot welding completed -- return the welding head



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Multi-pulse welding power supply

Proprietary output energy optimization algorithm, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.

Pneumatic Foot Switch Pneumatic Spot Welding Machine For Lithium Ion Battery 0



 2. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

Pneumatic Foot Switch Pneumatic Spot Welding Machine For Lithium Ion Battery 1



3.Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.

Pneumatic Foot Switch Pneumatic Spot Welding Machine For Lithium Ion Battery 2



  1. Welding case



Pneumatic Foot Switch Pneumatic Spot Welding Machine For Lithium Ion Battery 3        Pneumatic Foot Switch Pneumatic Spot Welding Machine For Lithium Ion Battery 4       Pneumatic Foot Switch Pneumatic Spot Welding Machine For Lithium Ion Battery 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
