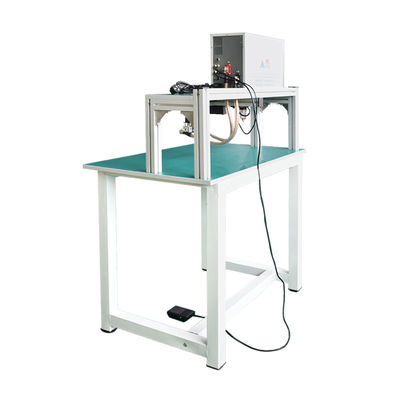

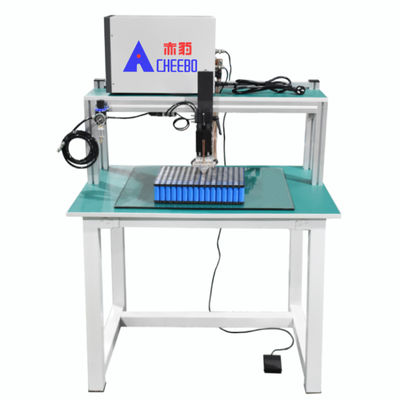

High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply

High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply

  • Head Height
    130(Max.)
  • Core Components
    Precision Welding Head
  • Color
    Silver+Blue
  • Mpa
    0.4-0.6
  • Weight (KG)
    Manual Lithium Battery Spot Welding Machine
  • Product Name
    Multi-pulse Pneumatic Lithium Battery Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    The wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply

High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply




Equipment introduction

● Product application scope: pack welding of power lithium-ion battery, welding of 3C lithium-ion battery pack, welding of Nickel–metal hydride



battery pack, welding of small hardware parts, welding of electronic and electrical parts, wire terminal welding, welding of stainless steel parts,



welding of metal jewelry, welding of copper products, welding of aluminum products, etc. It is also suitable for welding work such as product



maintenance and sampling.


Digital LED display screen, device parameter adjustment is more intuitive, easy to learn and operate.


Independently developed precision welding head with precise pressure regulation control.


Proprietary output energy optimization algorithm, reasonable conversion of output voltage and output current, strong welding ability, firm solder



joints, no false soldering, small cremation, and good surface quality.


Microcomputer technology control, control of power grid voltage, automatic tracking and compensation.


Applicable battery specifications: minimum not less than 50MM, maximum not greater than 130MM. (More than can be used to increase height)


High quality tempered glass is used to protect the desktop from wear and tear during the welding process.


The vertical spot welding method is spot welding, which manually controls the depth of the pressure.


The welding machine can store multiple programs in advance, and these programs can be changed and called freely.


Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Equipment workflow



Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Place the product to be welded on the desktop -- Step on



the pedal -- push down the welding head -- spot welding completed -- return the welding head



Function Introduction



 1. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.

High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply 0



 2. Multi-pulse welding power supply

Proprietary output energy optimization algorithm, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.

High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply 1



 3. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply 2



 4. Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.

High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply 3



  1. Welding case



High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply 4 High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply 5 High Quality Precision Battery Spot Welding Machine Multi Pulse Welding Power Supply 6



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
