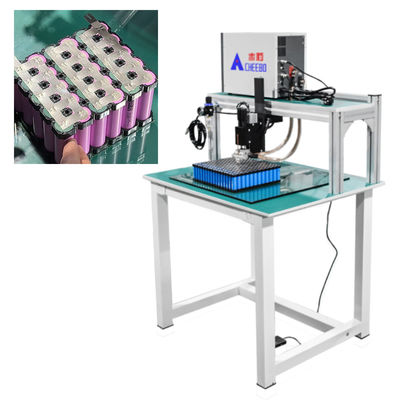

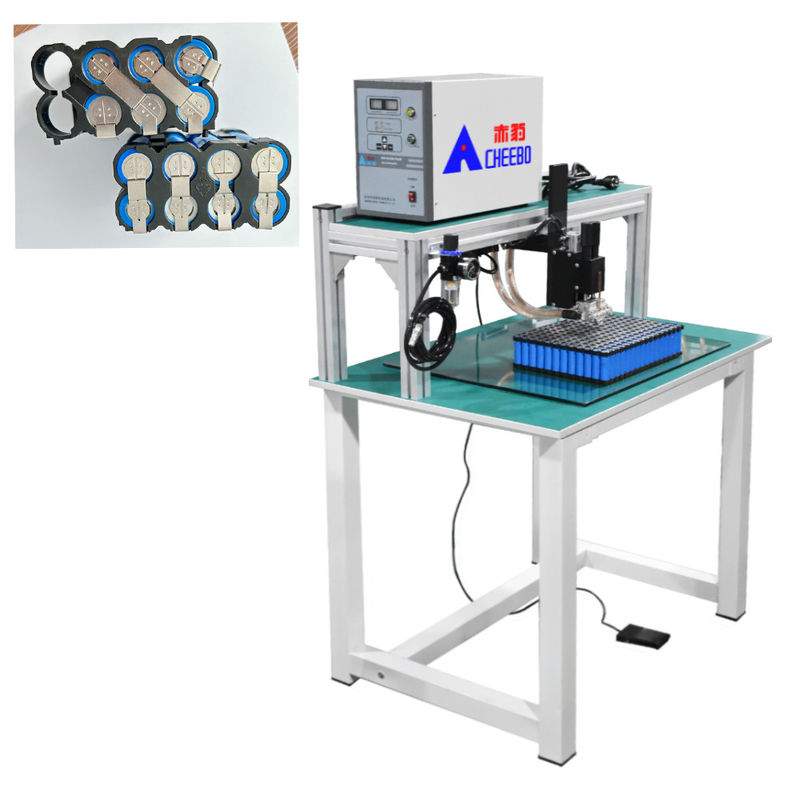

Foot Switch Spot Welding Machine  Lithium Cell Pack Equipment Pneumatic Type

Foot Switch Spot Welding Machine Lithium Cell Pack Equipment Pneumatic Type

  • High Light

    Pneumatic Lithium Cell Spot Welding Machine

    ,

    Pneumatic Cell Testing Equipment

    ,

    Foot Switch Cell Spot Welding Machine

  • Welding Type
    Resistance Welding
  • Welding Cable
    Pure Copper
  • Driving Mode
    Pneumatic
  • Welding Method
    Double Point Horizontal Welding
  • Product Name
    Multi-pulse Pneumatic Lithium Battery Spot Welding Machine
  • Weight
    60KG
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Foot Switch Spot Welding Machine Lithium Cell Pack Equipment Pneumatic Type

Foot Switch Spot Welding Machine Lithium Cell Pack Equipment Pneumatic Type


Equipment introduction



● Scope of application: power lithium-ion battery modules, 3C lithium-ion battery packs, nickel-metal hydride battery packs, small hardware parts, electronic and electrical parts, wire terminals, stainless steel parts, metal jewellery, copper products, aluminium products and so on. It is also suitable for product maintenance sampling and other work.



● Digital LED display, equipment parameters adjustment is more intuitive, easy to learn and easy to operate.



● Self-developed precision welding head, precise pressure adjustment and control.



● Proprietary output energy optimisation algorithm, output voltage and output current conversion is reasonable, strong welding capacity, solid weld joints, no false welding, small cremation, excellent surface quality.



● Microcomputer technology control, control grid voltage, automatic tracking compensation.



● Applicable battery specifications: minimum not less than 50MM, maximum not greater than 130MM.(The above can be used to increase the height)



● Adopting high quality tempered glass to protect the desktop from abrasion during the welding process.



● Vertical spot welding method is spot welding, manually control the pressure depth.



● Welding machine can pre-store multiple programmes, which can be changed and called up at will.





● Compact structure, small volume, high power, large industrial circuit design, safe and reliable welding process



Function Introduction



 1. Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent the damage caused to the desktop during welding. At the same time, it can increase the fluency of welding and increase the welding efficiency.



Foot Switch Spot Welding Machine  Lithium Cell Pack Equipment Pneumatic Type 0



 2. Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Foot Switch Spot Welding Machine  Lithium Cell Pack Equipment Pneumatic Type 1



 3. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

Foot Switch Spot Welding Machine  Lithium Cell Pack Equipment Pneumatic Type 2



Equipment workflow



Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Place the product to be welded on the desktop -- Step on



the pedal -- push down the welding head -- spot welding completed -- return the welding head



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding





FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
