Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment

Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment

  • High Light

    Manual Battery Tab Spot Welding Machine

    ,

    Manual Battery Assembly Equipment

    ,

    Foot Drive Battery Assembly Equipment

  • Product Name
    Multi-pulse Electric Lithium Battery Spot Welding Machine
  • Use
    Lithium Battery Welding
  • Power
    12KW
  • Welding Speed
    180P/M
  • First Pulse
    Level 0-3 (adjustable)
  • Power Supply
    AC110V/220V
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment

Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment


Equipment introduction

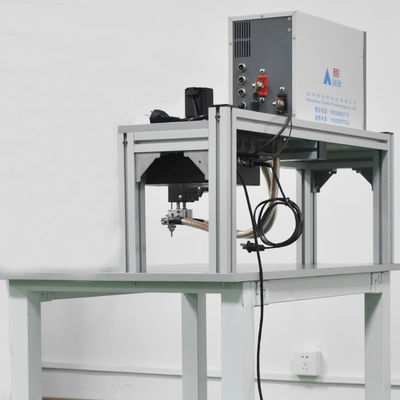

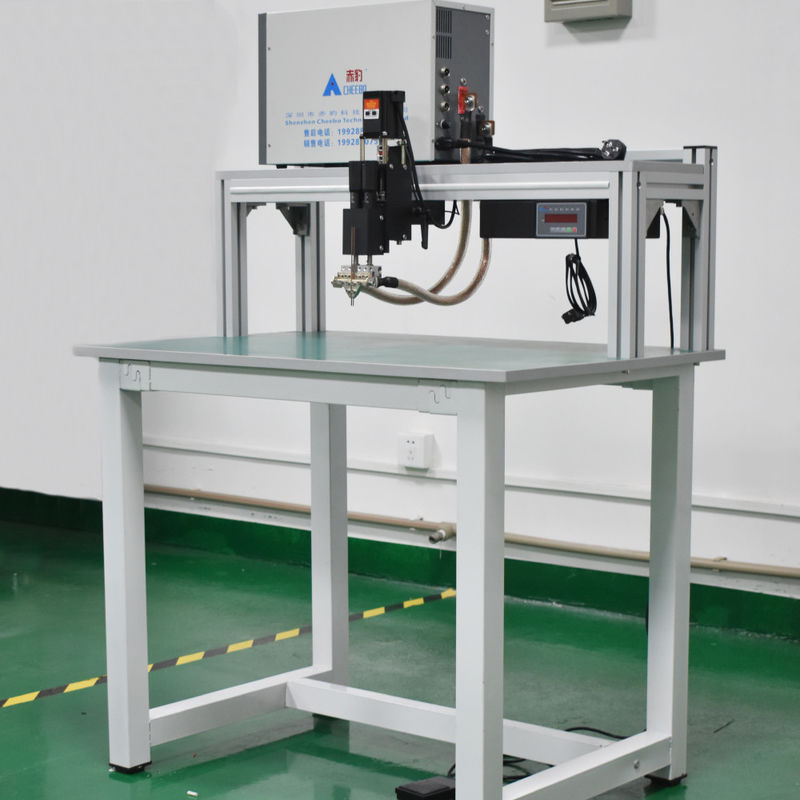

● This lithium battery spot welder adopts pure electric no cylinder design, low noise and stable pressure.


● Motor drive, control box precision control, three modes adjustable.


● The CBLD-26 multi-pulse lithium battery spot welder adopts proprietary output energy optimisation algorithm, reasonable output voltage and output current conversion, strong welding capacity, firm weld joints, no false welding, small cremation and excellent surface quality.


● Independently developed precision welding head, precise pressure regulation control.


● Microcomputer technology control, control grid voltage, automatic tracking compensation.


● Applicable battery specifications: minimum not less than 50MM, maximum not more than 130MM (can be used for height increase type).


● The welding platform adopts high quality tempered glass to protect the desktop from wear and tear during the welding process.


● Vertical spot welding method is spot welding, manual control of pressure depth.


● Digital LED display, equipment parameters adjustment is more intuitive, easy to learn and easy to operate.


● Welding machine can be pre-stored multiple procedures, can be changed and called at will.


● Compact structure, small volume, high power, large industrial circuit design, safe and reliable welding process



Function Introduction



 1.  Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment 0



 2.  Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.

Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment 1



 3.  Electric control

No additional air source, low noise, fast welding speed, stable pressure.

Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment 2



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment 3      Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment 4         Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment 5



Boundary dimension

Battery Tab Spot Welding Machine Foot Motor Drive Battery Assembly Equipment 6
