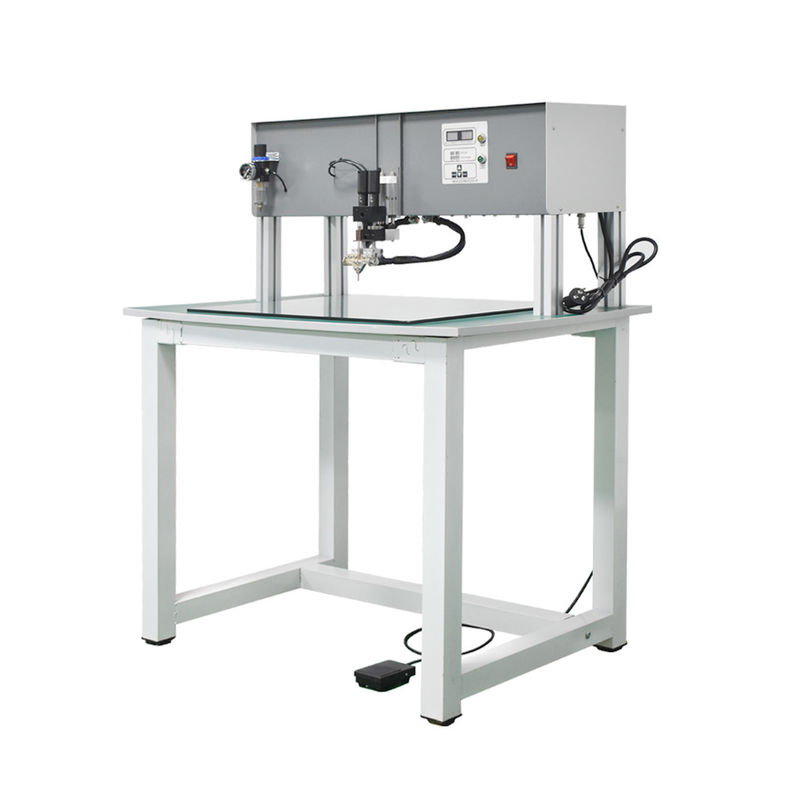

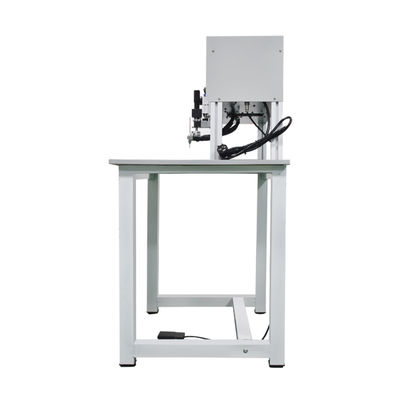

Battery Tab Spot Welding Machine Weld 0.15MM Nickel Sheets Of Battery Pack

Battery Tab Spot Welding Machine Weld 0.15MM Nickel Sheets Of Battery Pack

  • High Light

    Electric Battery Tab Spot Welding Machine

    ,

    Lithium Ion Cell Spot Welding Machine

    ,

    Electric Cell Spot Welding Machine

  • First Energy
    0-999(Adjustable)
  • First Pulse
    First Pulse
  • Welding Platform Load Capacity
    60KG
  • Repositioning Accuracy
    0.1mm
  • Product Name
    Multi-pulse Pneumatic Lithium Battery Spot Welder
  • Welding Speed
    200P/M
  • Place of Origin
    China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-23
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Battery Tab Spot Welding Machine Weld 0.15MM Nickel Sheets Of Battery Pack

Battery Tab Spot Welding Machine Weld 0.15MM Nickel Sheets Of Battery Pack




Equipment introduction



This spot welding machine for lithium ion battery adopts multi-pulse adjustment, which can improve the welding output energy waveform, improve the welding ability, and make the welding joint strong and beautiful.


The lithium battery spot welding machine uses the bidirectional controllable element to control the electric energy discharge to the output welding circuit for welding, the welding output energy is large, the control is accurate, the circuit is simple, not easy to damage, and the adaptability is strong.


LED digital display, full touch button parameter setting operation interface, easy to adjust parameters.


Self-developed precision welding head, precise pressure adjustment control.


The power supply can store 10 groups of welding parameters, and the parameters can be transferred to different materials for welding, without resetting parameters.


Microcomputer technology control, control voltage grid, automatic tracking compensation.


The welding machine can pre-store multiple programs, welding different materials can be changed, call different energy for welding.


High quality tempered glass is used to protect the desktop from wear during welding.


Vertical spot welding method for spot welding, manual control of the depth of pressure.


Compact structure, small volume, large power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.02-0.15MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM
Supply current 3000A Welding speed 20P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1150MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Operation panel

Digital LED display, the parameter adjustment of the device is more intuitive and easy to learn and easy to operate



Battery Tab Spot Welding Machine Weld 0.15MM Nickel Sheets Of Battery Pack 0



 2. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Battery Tab Spot Welding Machine Weld 0.15MM Nickel Sheets Of Battery Pack 1



 3. Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Battery Tab Spot Welding Machine Weld 0.15MM Nickel Sheets Of Battery Pack 2



Equipment workflow



Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Place the product to be welded on the desktop -- Step on



the pedal -- push down the welding head -- spot welding completed -- return the welding head



  1. Welding case



Battery Tab Spot Welding Machine Weld 0.15MM Nickel Sheets Of Battery Pack 3 Battery Tab Spot Welding Machine Weld 0.15MM Nickel Sheets Of Battery Pack 4 Battery Tab Spot Welding Machine Weld 0.15MM Nickel Sheets Of Battery Pack 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
