Single Sided Automatic Spot Welder Lithium High Precision Rotary Welding Head

Single Sided Automatic Spot Welder Lithium High Precision Rotary Welding Head

  • High Light

    Single Sided Automatic Spot Welder

    ,

    Lithium Battery Spot Welding Machine 220V

    ,

    Single Sided Battery Spot Welding Machine

  • Applicable Industries
    New Energy、Household Electronic Products
  • Maximum Welding Thickness
    0.3MM
  • Product Name
    Auto Single Side Battery Spot Welding Machine
  • Voltage
    220V 50-60HZ
  • Warranty
    1 Year For The Whole Machine, 3 Years For The Core Parts
  • Production Efficiency
    3000P/H
  • Place of Origin
    Guangdong, China
  • Brand Name
    cheebo Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Month

Single Sided Automatic Spot Welder Lithium High Precision Rotary Welding Head

Single Sided Automatic Spot Welder Lithium High Precision Rotary Welding Head

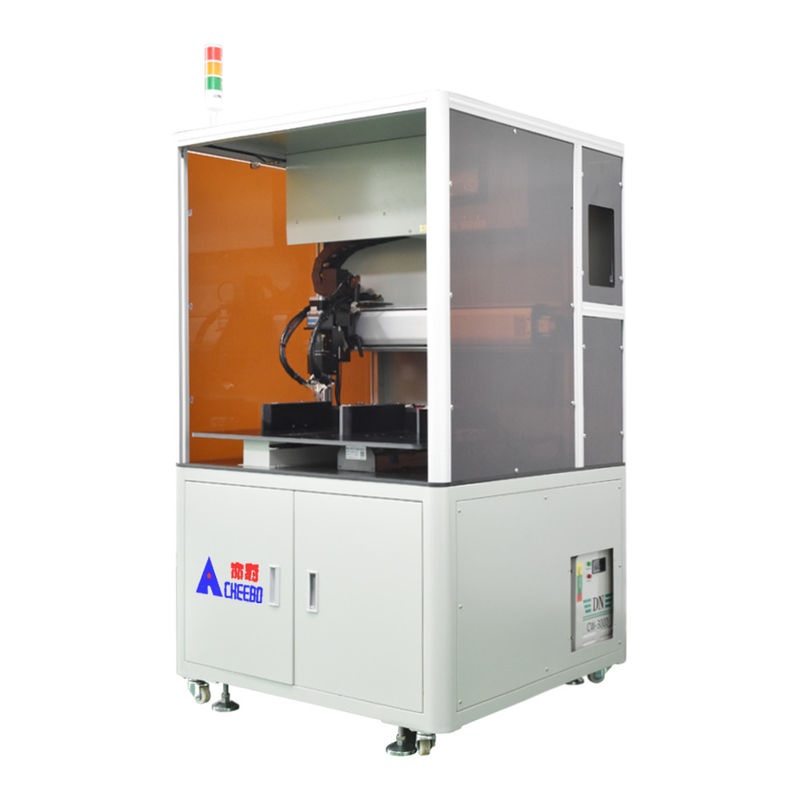

Equipment introduction

​​● This lithium battery spot welding machine is a multi-axis control machine developed by modern automation experts. It cooperates with precision transmission and motor control mechanism and automatic walking mechanism to effectively control the automatic production equipment of processing in real time.


​​The equipment is suitable for fully automatic single-sided spot welding of various cylindrical cell combinations such as 18650, 21700, 26650, 32700, etc.


​​It is suitable for spot welding of modular lithium battery packs such as NB/Power Tool/Gardening Tool/High Power/energy storage power station batteries/electric motorcycles/electric vehicles, and can be used in conjunction with lithium battery pack production lines.


​​It has the characteristics of modular design, low noise, stable energy output, and high-efficiency welding.


​​The heightened design of the welding head is also applicable to the automatic welding of the protection board of various pack schemes. One machine is dual-purpose. When welding the protection board, it is only necessary to replace the platform fixture.


​​Double platform design, independent welding of the left and right platforms, non-interfering with each other, or only a single platform can be used.


​​Using Taiwan silver rod guide rail, high precision, low noise, smooth sliding, durable.


​​The 135° rotating welding head design can set the welding head rotation angle according to the slotting position of the nickel sheet to avoid welding errors caused by the inability to rotate the welding head. At the same time, it has the function of anti-sticking needles.


​​High-definition LCD touch screen, convenient and simple parameter adjustment, real-time display of equipment working status.


​​Independently develop a variety of automated intelligent systems to cooperate with the intelligent operation of equipment, such as: energy switching function, production technology function, welding needle compensation function, manual debugging function.

Technical specification

Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding pressure 5KG/F Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding thickness 0.02-0.3MM
Electrode material Copper alumina Machine Dimensions 1680*1400*2000MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding

Function Introduction

 1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.



Single Sided Automatic Spot Welder Lithium High Precision Rotary Welding Head 0



 2. Electric rotating welding head

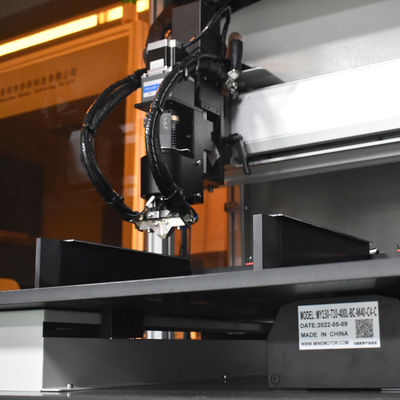

The welding head can be welded by 135° rotation, suitable for special-shaped nickel sheet, and also has the function of anti-sticking needle.

The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.



Single Sided Automatic Spot Welder Lithium High Precision Rotary Welding Head 1



 3. Cooling system:

Water circulation heat dissipation, instantaneous large current welding, welding head always maintain constant temperature, effectively reduce the loss of welding needle, improve the welding effect.



Single Sided Automatic Spot Welder Lithium High Precision Rotary Welding Head 2

FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
