  • Product Name
    Standard Single Side Lithium Battery Spot Welding Machine
  • Maximum Welding Thickness
    0.02MM-0.3MM
  • Cooling Method
    Forced Water Circulation
  • Voltage
    220V/50-60HZ
  • Dimensions
    1000*960*1585MM
  • Weight (KG)
    330KG
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Month

Lithium Welding Machine For Battery

Automatic Battery Spot Welding Machine Multi Function 135° Rotating Welding Head
Equipment introduction

This lithium battery spot welding machine is an automatic production equipment developed by modern automation experts with multi-axis control machine, which cooperates with precision transmission and motor control mechanism to automate the walking mechanism and effectively control the processing in real time.


The equipment is suitable for full-automatic single-side spot welding of 18650, 21700, 26650, 32700 and other cylindrical cell combinations.


It is suitable for spot welding of modular lithium battery packs such as Nb/PowerTool/Gardening Tool/High Power/Energy Storage Power Station Battery/Electric Motorcycle/Electric Vehicle, and can be used in conjunction with the lithium battery pack production line.


It has the characteristics of modular design, low noise, stable energy output and efficient welding.


The heightening design of welding head can also be applied to automatic welding of protective plates with various pack schemes, and one machine can be used for two purposes. When welding protective plates, only the platform fixture needs to be replaced.


Double platform design, the left and right platforms are welded independently without interference, or only a single platform can be used.


Taiwan Province silver wire rod guide rail is adopted, which has high precision, low noise, smooth sliding and durability.


With the design of 135 rotating welding head, the rotating angle of the welding head can be set according to the slot position of the nickel sheet, so as to avoid welding errors caused by the inability of the welding head to rotate. At the same time, it has anti-sticking function.


High-definition LCD touch screen, convenient and simple parameter adjustment, real-time display of equipment working status.


Independently develop a variety of automatic intelligent systems to cooperate with the intelligent operation of equipment, such as energy switching function, production technology function, capillary compensation function and manual debugging function.



Technical specification
Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1680*1400*2000MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



Function Introduction



 1. Electric rotating welding head

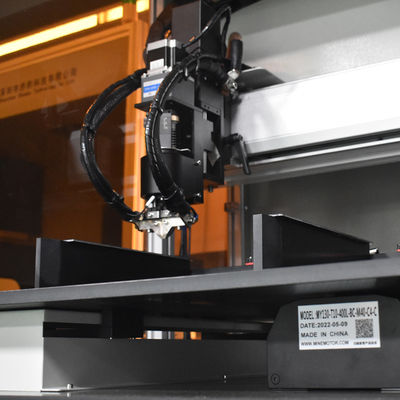

The welding head can rotate 135 ° for welding, suitable for irregular nickel plates, and also has anti sticking needle function.
The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.

Lithium Welding Machine For Battery 0



 2. Cooling system:

Water circulation heat dissipation, instantaneous high-current welding, the welding head always maintains a constant temperature, effectively reducing the loss of welding pins and improving the welding effect.

Lithium Welding Machine For Battery 1



 3. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.
