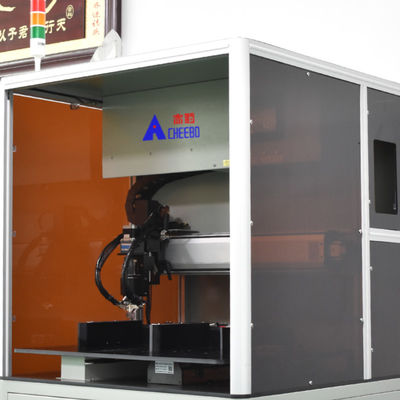

Automatic Battery Welding Machine Cell Use With Nickel Plate Welding

Automatic Battery Welding Machine Cell Use With Nickel Plate Welding

  • High Light

    CNC Automatic Battery Welding Machine

    ,

    21700 Automatic Battery Welding Machine

    ,

    21700 Battery Cell Welder

  • Welding Power Source
    Transistor
  • Product Name
    Standard Single Side Lithium Battery Spot Welding Machine
  • Mode Of Motion
    Automatic Continuous
  • Welding Material
    Copper Alumina
  • Welding Station
    2
  • Welding Head Rotation Angle
    135°
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-6040
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    Negotiable

Automatic Battery Welding Machine Cell Use With Nickel Plate Welding

Automatic Battery Welding Machine Cell Use With Nickel Plate Welding

Equipment introduction

​​

● Lithium battery pack spot welding machine, single sided automatic welding, modular design silent, stable, and efficient.


​​● Adopting an elevated design, it can be used for automatic welding of protective plates in various battery pack schemes, with one machine for two purposes.


​​● The CBMO4-6040 lithium battery pack spot welding machine adopts a left and right platform design, and the left and right platforms do not interfere with each other, allowing only a single platform to be used.


​​● Lithium Battery Spot Welding Machine automatic alarm for explosive welding and false welding equipment, manual adjustment for automatic zone repair welding, single point repair welding.


​​● The automatic battery spot welding independently developed by CHEEBO has multiple automated intelligent systems, which are easy to set up and run equipment, helping to improve production efficiency.


​​● CHEEBO technology welding machine for small batteries has energy switching function, production counting function, welding needle compensation function, manual debugging function, etc.


​​● According to the slot position of the battery pack nickel sheet, the welding direction can be adjusted, and the maximum rotation angle of the welding needle is 135 °, effectively avoiding welding errors caused by inability to rotate the angle.


​​● Automatic batch spot welding has manual programming, CAD mapping, and the ability to import spot welding paths, enabling quick programming. Easy to learn, ordinary workers are fully capable.


​​● The automatic battery pack spot welding machine adopts a 7-inch high-definition LCD touch screen, and the interactive human-machine interface is simple and convenient to operate.


​​● The lithium battery spot welding machine equipment adopts Taiwan's silver screw guide rail module, which is high-precision, low noise, smooth sliding, and durable.


​​● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static.


​​● Imported acrylic protective board, beautiful and elegant with strong sense of technology, visual operation to improve production safety factor.



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding pressure 5KG/F Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding thickness 0.02-0.3MM
Electrode material Copper alumina Machine Dimensions 1680*1400*2000MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



Function Introduction



 1. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.

Automatic Battery Welding Machine Cell Use With Nickel Plate Welding 0



 2. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Automatic Battery Welding Machine Cell Use With Nickel Plate Welding 1



 3. Electric rotating welding head

The welding head can be welded by 135° rotation, suitable for special-shaped nickel sheet, and also has the function of anti-sticking needle.

The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.

Automatic Battery Welding Machine Cell Use With Nickel Plate Welding 2



Application case



1. Energy storage battery pack        2. Electric bicycle battery pack           3. Power tool battery pack

Automatic Battery Welding Machine Cell Use With Nickel Plate Welding 3      Automatic Battery Welding Machine Cell Use With Nickel Plate Welding 4        Automatic Battery Welding Machine Cell Use With Nickel Plate Welding 5

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
