Single Sided Lithium Battery Spot Welder Automatic With Double Station

Single Sided Lithium Battery Spot Welder Automatic With Double Station

  • High Light

    Single Sided Lithium Battery Spot Welder

    ,

    Single Sided Automatic Spot Welder

    ,

    Automatic Spot Welder Double Station

  • Product Name
    Standard Single Side Lithium Battery Spot Welding Machine
  • Y-axis Travel
    600MM
  • X-axis Travel
    400MM
  • Y-axis Precision
    0.1MM
  • X-axis Precision
    0.1MM
  • Operation Panel
    7 Inch HD Touch Screen
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Single Sided Lithium Battery Spot Welder Automatic With Double Station

Single Sided Lithium Battery Spot Welder Automatic With Double Station


Equipment introduction

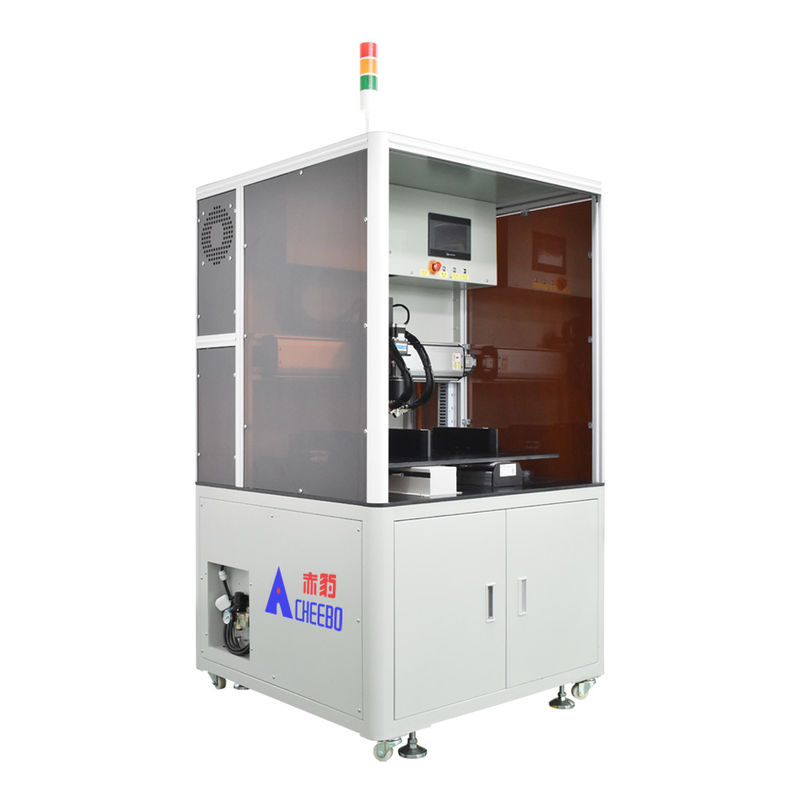

● This lithium battery spot welding machine is a multi axis control machine developed by modern automation experts, combined with precision transmission and motor control mechanism for automatic walking mechanism, effectively controlling real-time processing of automated production equipment.


● The equipment is suitable for fully automatic single sided spot welding of various cylindrical cell combinations such as 18650, 21700, 26650, 32700, etc.


● Suitable for spot welding of modular lithium battery packs such as NB/Power Tool/Parking Tool/High Power/Energy Storage Station Batteries/Electric Motorcycles/Electric Vehicles, and can be used in conjunction with lithium battery pack production lines.


● It has Modular design, low noise, stable energy output, efficient welding and other characteristics.


● The welding head is designed with a raised height, which can also be used for automatic welding of protective plates in various pack schemes. One machine can be used for both purposes, and only the platform fixture needs to be replaced when welding the protective plate.

● Adopting Taiwan's silver screw guide rail, high-precision, low noise, smooth sliding, and durable.

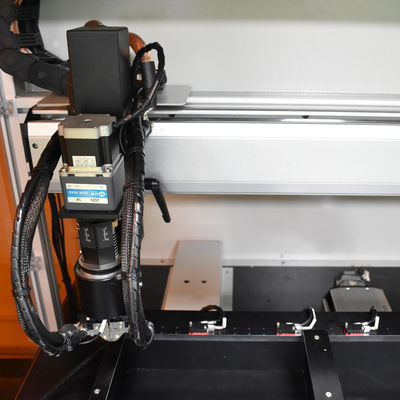

● 135 ° rotating welding head design, which can set the welding head rotation angle according to the slot position of the nickel sheet, to avoid welding errors caused by the inability of the welding head to rotate. It also has anti stick needle function.


● High definition LCD touch screen, convenient and simple parameter adjustment, real-time display of device working status.


● Independently develop various automated intelligent systems to cooperate with equipment intelligent operation, such as energy switching function, production technology function, welding needle compensation function, and manual debugging function.



Technical specification
Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1680*1400*2000MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding




Function Introduction



 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Single Sided Lithium Battery Spot Welder Automatic With Double Station 0

 2. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Single Sided Lithium Battery Spot Welder Automatic With Double Station 1



 3. Multi-function table

Worktable heightening design, can also be applied to a variety of pack scheme protection plate automatic welding, one machine dual-use, welding protection plate only need to replace the platform fixture. Dual platform design, left and right platform independent welding, non-interference, can also only use a single platform.

Single Sided Lithium Battery Spot Welder Automatic With Double Station 2



Device action flow description



Cell/bracket/battery nickel piece loading fixture -- Place fixture to left platform induction position -- automatic spot welding of the device is



completed to send the fixture to the material retrieval position -- manual flip fixture -- Place the fixture to the right platform induction position --



automatic spot welding of the device is completed to send the material retrieval position -- remove the battery pack from the fixture -- for the next



production cycle (the platform can be put in when the left platform is working) The product, waiting for the platform welding to be completed, will



automatically transfer to the right platform welding. When welding the right platform, the left platform can replace the product, waiting for the right



platform to complete the welding, will automatically transfer to the left platform welding, in turn cycle)



FAQ

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
