Cylindrical Lithium Ion Battery Pack Assembly Line Cylindrical Cell Universal Type

Cylindrical Lithium Ion Battery Pack Assembly Line Cylindrical Cell Universal Type

  • High Light

    Lithium Ion Battery Pack Assembly Line

    ,

    Lithium Cell Machinery 18650

    ,

    Lithium Cell Machinery Cylindrical

  • Applicable Industries
    New Energy
  • Max. Welding Thickness
    0.3MM
  • Dimensions (L)
    13M
  • Product Name
    Cylindrical Lithium Battery Pack Production Line
  • Machine Type
    Automatic
  • Welding Method
    Dpot Welding
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBZD-2540
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Cylindrical Lithium Ion Battery Pack Assembly Line Cylindrical Cell Universal Type

Cylindrical Lithium Ion Battery Pack Assembly Line Cylindrical Cell Universal Type


Production line equipment



● Automatic battery feeding mechanism:The robotic arm automatically grabs the battery and places it on the designated track. The diameter is 18-21 inches and the length is 65-70 inches.


● Electric cell barley paper making machine:Using PLC controlled stepper motor and cylinder to paste barley paper on the finished electric cell positive pole. Using the cylinder to drive the cutter, it stamps and pastes 4 electric cores at a time. Each part is made of high speed steel with high wear resistance.


● Battery sorting machine:With the function of scanning and storing data on the battery. 7 grades for sorting. Automatic sorting equipment is suitable for voltage and internal resistance testing of cylindrical batteries of various specifications. Diameter 18-21, length 65-70.


● CCD vision inspection equipment:Multifunctional vision inspection system based on CCD industrial camera and machine vision technology.


● Automatic spot welding machine for batteries:Suitable for welding various specifications of cylindrical batteries with single-sided automatic spot welding welding.


● Jig rotation system:Automatically senses the jig to reach its position, and the rotation mechanism clamps the jig to rotate so that the jig returns to the next program.



Function introduction



● Jig rotation system:automatically senses the jig to reach its position, and the rotation mechanism clamps the jig and rotates it to make the jig return to the next program.


● The lithium battery pack production line is suitable for the production of battery pack assembly for household appliances/electric bicycles/electric tools/garden tools/energy storage power etc.


● Modular design:Each equipment can be connected automatically or used separately, or can be used freely in combination as required.


● Lithium battery production line is a multi-axis motion control system developed by modern automation experts. It adopts automatic mechanism of precision drive and motor control to realize real-time and effective control of automatic production equipment.


● The lithium battery assembly line is applicable to the assembly line of 18650, 21700, 26650, 32700 and other cylindrical batteries.


● Built-in fixture return track, after assembly is completed, manually remove the fixture and place it on the return track.



● The fixture automatically returns to the previous station and is manually assembled and placed on the welding track.



Production line planning diagram

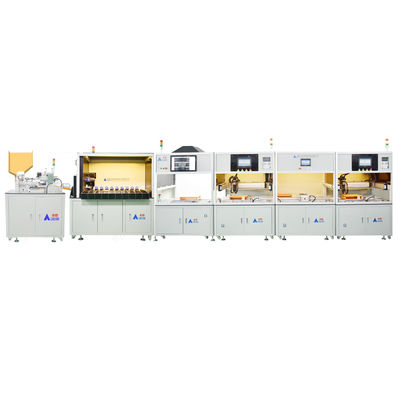

Cylindrical Lithium Ion Battery Pack Assembly Line Cylindrical Cell Universal Type 0

Technical specification
Work method Stepper motor + pneumatic Machine Dimensions 1275*860*1524MM
structural material aluminium alloy Machine Weight 150KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical cell sticker
Production efficiency 60-70PPM Air source specification 1/CFM
Applicable battery specifications 18650/21700/21650 Pass rate ≥95%
Sticker efficiency ≥60PPM Transmission mode Mechanical hand
Compatible material Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc Maximum impact speed 99.99%




Function Introduction



 1. Fixture automatic turning system
The automatic sensing fixture arrives at the position, and the flipping mechanism turns the clamping fixture over, allowing the fixture to return to the welding position for B-side welding.

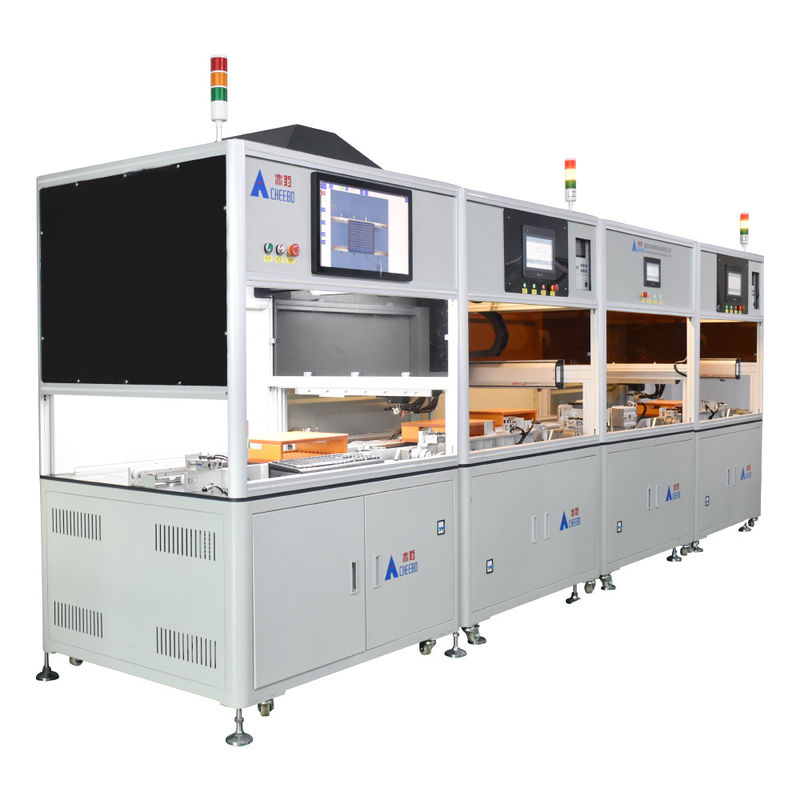

Cylindrical Lithium Ion Battery Pack Assembly Line Cylindrical Cell Universal Type 1



 2. Dual track design
Front track for welding, test track. The rear track is the jig return track, which can improve production efficiency and does not require workers to carry the jig back and forth.

Cylindrical Lithium Ion Battery Pack Assembly Line Cylindrical Cell Universal Type 2



Process Introduction



1. Battery automatic feeding


2. Positive electrode paste insulated paper machine


3. Cell voltage internal resistance sorting


4. Cell mounting bracket fixture platform


5. CCD detection of positive and negative battery pack


6. Fixture cover top plate platform


7. Spot welding on side A


8. Fixture turning mechanism


9. Side B welding


10. Back-end installation production line



Process Introduction



The battery is loaded into the hopper of the paper paste machine →→ Automatically paste the positive electrode



pad sticker →→ the battery automatically enters the separator →→ the separator sweeps the test data for archiving →→



The battery is sent into the corresponding receiving tank → The workers take out the loading fixture in groups →



push the CCD automatic polarity detection screen → the unqualified manual correction is automatically sent out →



the workers cover the upper plate of the fixture →→ push the spot welder Automatic spot welding on side A→→



The machine automatically turns over to side B for welding completion →→ Take out the welded battery pack fixture



and return it to the frontto enter the next escape ring →→ Install the BMS board after the battery pack welding



inspection →→Machine or manual welding of the BMS board → Workers line and install auxiliary materials →→



Test the battery pack parameters fail to pass the inspection. →→ Send aging inspection to aging workshop →→



Packaging workshop packing



Application case
