Single Side Welding 10000A Auto Battery Cell Welding Machine Ac 220V

Single Side Welding 10000A Auto Battery Cell Welding Machine Ac 220V

  • High Light

    Auto Nickel Strip Spot Welding Machine

    ,

    Auto Battery Cell Welding Machine

    ,

    Single Side Battery Cell Welding Machine

  • Product Name
    Standard Single Side Lithium Battery Spot Welding Machine
  • Weight
    330KG
  • Dimensions
    1.68M*1.3M*2M
  • Warranty Period
    1 Year
  • Welding Thickness
    0.02MM-0.3MM
  • Frame Material
    Aluminum Alloy
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN5-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Month

Single Side Welding 10000A Auto Battery Cell Welding Machine Ac 220V

Single Side Welding 10000A Auto Battery Cell Welding Machine Ac 220V


Equipment introduction

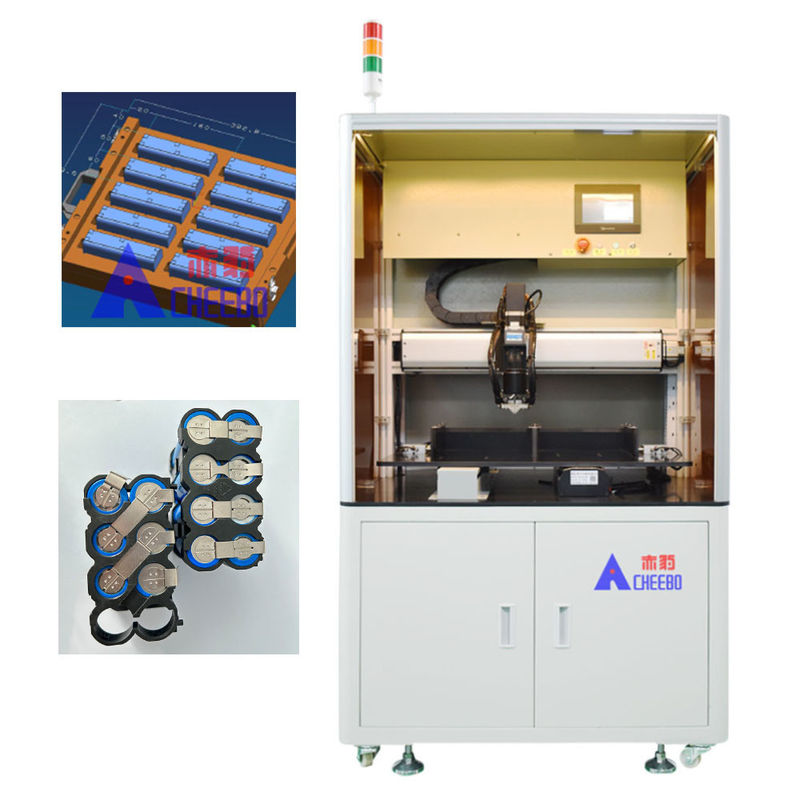

● Lithium battery pack spot welder, single side automatic welding, modular design is silent, stable and efficient.


● Strengthened design, also suitable for automatic welding of protection plates in various battery pack solutions.


● Left and right platform operation can be realized, and the left and right platforms do not interfere with each other, or only single platform can be used.


● Automatic alarm for false welding and fried welding equipment, manual adjustment for automatic area filler welding and single point filler welding.


● With energy switching function, production counting function, solder pin compensation function, manual debugging function, etc.


● Adjustable welding direction according to the slot of the nickel piece of the battery pack. The maximum rotation angle of the welding needle is 135°, effectively avoiding the welding error caused by the inability to rotate the angle.


● Automatic batch spot welding has manual programming, CAD drawing, and spot welding path import function, which can be programmed quickly. It is easy to learn and ordinary workers can do it completely.


● Automatic battery pack spot welder adopts 7-inch high-definition LCD touch screen, with simple human-machine interface and easy operation.


● Automatic battery spot welding developed independently with several automatic intelligent systems, easy to set up and run the equipment, which helps to improve production efficiency.


● Adopting Taiwan silver screw guide module with high precision, low noise, smooth sliding and durable.


● Aluminum alloy structure, electrostatic powder spraying process, scratch-resistant, rust-proof and anti-static.


● Imported acrylic protection plate, beautiful and elegant, strong sense of technology, intuitive operation, improve the production safety factor.



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding pressure 5KG/F Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding thickness 0.02-0.3MM
Electrode material Copper alumina Machine Dimensions 1680*1400*2000MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



Function Introduction



 1. Electric rotating welding head

The welding head can be welded by 135° rotation, suitable for special-shaped nickel sheet, and also has the function of anti-sticking needle.

The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.



Single Side Welding 10000A Auto Battery Cell Welding Machine Ac 220V 0



 2. Cooling system:

Water circulation heat dissipation, instantaneous large current welding, welding head always maintain constant temperature, effectively reduce the loss of welding needle, improve the welding effect.



Single Side Welding 10000A Auto Battery Cell Welding Machine Ac 220V 1



 3. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.



Single Side Welding 10000A Auto Battery Cell Welding Machine Ac 220V 2



Application case



1. Energy storage battery pack        2. Electric bicycle battery pack           3. Power tool battery pack



Single Side Welding 10000A Auto Battery Cell Welding Machine Ac 220V 3      Single Side Welding 10000A Auto Battery Cell Welding Machine Ac 220V 4       Single Side Welding 10000A Auto Battery Cell Welding Machine Ac 220V 5



FAQ



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
