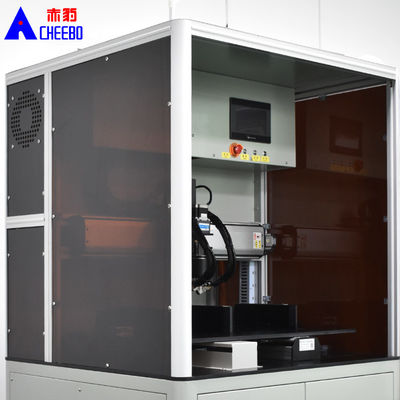

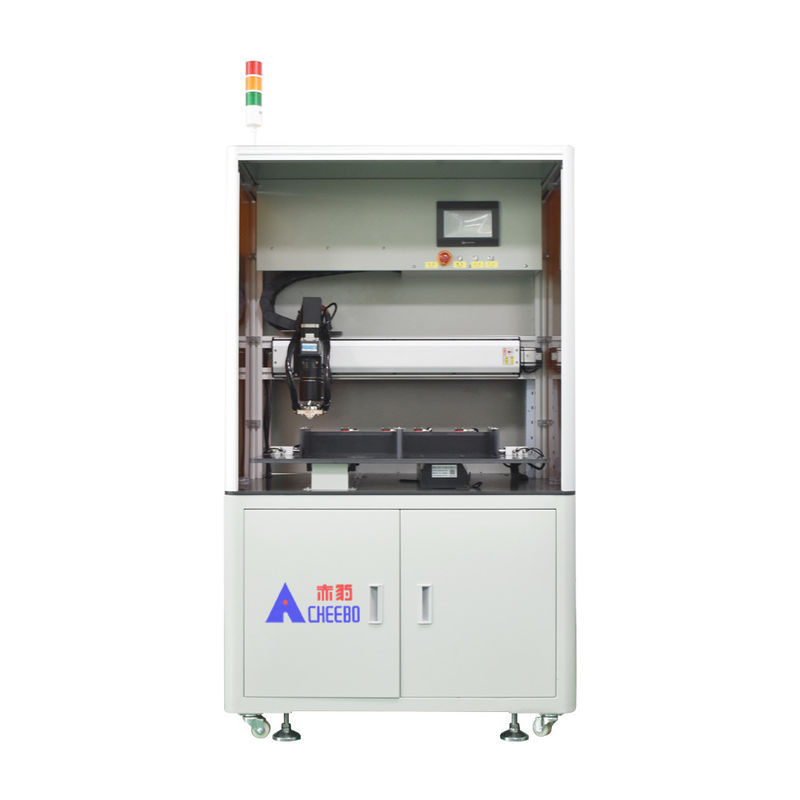

Fully Automatic Battery Pack Assembly Equipment 18650 Battery Spot Welder 220V

Fully Automatic Battery Pack Assembly Equipment 18650 Battery Spot Welder 220V

  • High Light

    Fully Automatic Battery Welding Equipment

    ,

    18650 Battery Spot Welder 220V

    ,

    Fully Automatic 18650 Battery Spot Welder

  • Welding Head Type
    Precision Electric Welding Head
  • Air Source Specification
    1/CFM
  • Product Name
    Standard Single Side Lithium Battery Spot Welding Machine
  • Platform Load
    35KG
  • Welding Speed
    3800P/H (Max)
  • Power Supply
    220V
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN5-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Month

Fully Automatic Battery Pack Assembly Equipment 18650 Battery Spot Welder 220V

Fully Automatic Battery Pack Assembly Equipment 18650 Battery Spot Welder 220V


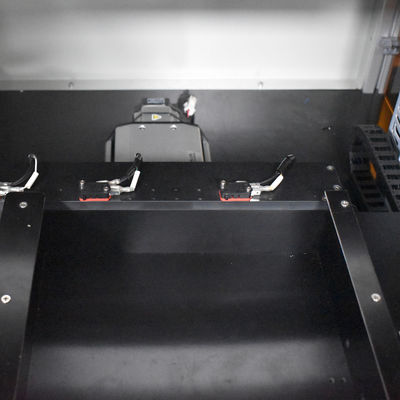

Equipment introduction



● Lithium battery pack spot welding machine, single sided automatic welding, modular design silent, stable, and efficient.


● Reinforced design, also suitable for automatic welding of protective plates in various battery pack schemes.


● Can achieve left and right platform operation, with no interference between the left and right platforms, or can only use a single platform.


● Automatic alarm for false welding and explosive welding equipment, manual adjustment for automatic zone repair welding and single point repair welding.


● Equipped with energy switching function, production counting function, welding needle compensation function, manual debugging function, etc.


● The welding direction can be adjusted according to the slot position of the battery pack nickel sheet, and the maximum rotation angle of the welding needle is 135 °, effectively avoiding welding errors caused by the inability to rotate the angle.


● Automatic batch spot welding has manual programming, CAD drawing, and spot welding path import functions, which can be quickly programmed. Easy to learn, ordinary workers are completely capable.


● The automatic battery pack spot welding machine adopts a 7-inch high-definition LCD touch screen, with a simple human-machine interface and convenient operation.


● The independently developed battery automatic spot welding system has multiple automated intelligent systems, making equipment setup and operation convenient, which helps to improve production efficiency.


● Adopting HIWIN module, with high accuracy, low noise, smooth sliding, and durability.


● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static.


● Imported acrylic protective plate, beautiful and generous, strong sense of science and technology, intuitive operation, improve production Factor of safety.



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding pressure 5KG/F Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding thickness 0.02-0.3MM
Electrode material Copper alumina Machine Dimensions 1680*1400*2000MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



Function Introduction



 1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.



Fully Automatic Battery Pack Assembly Equipment 18650 Battery Spot Welder 220V 0



 2. Electric rotating welding head

The welding head can be welded by 135° rotation, suitable for special-shaped nickel sheet, and also has the function of anti-sticking needle.

The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.



Fully Automatic Battery Pack Assembly Equipment 18650 Battery Spot Welder 220V 1



 3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Fully Automatic Battery Pack Assembly Equipment 18650 Battery Spot Welder 220V 2

  1. Welding case



Fully Automatic Battery Pack Assembly Equipment 18650 Battery Spot Welder 220V 3 Fully Automatic Battery Pack Assembly Equipment 18650 Battery Spot Welder 220V 4 Fully Automatic Battery Pack Assembly Equipment 18650 Battery Spot Welder 220V 5



Device action flow description



Cell/bracket/battery nickel piece loading fixture -- Place fixture to left platform induction position -- automatic spot welding of the



device is completed to send the fixture to the material retrieval position -- manual flip fixture -- Place the fixture to the right



platform induction position -- automatic spot welding of the device is completed to send the material retrieval position -- remove



the battery pack from the fixture -- for the next production cycle (the platform can be put in when the left platform is working) The



product, waiting for the platform welding to be completed, will automatically transfer to the right platform welding. When welding



the right platform, the left platform can replace the product, waiting for the right platform to complete the welding, will



automatically transfer to the left platform welding, in turn cycle)

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
