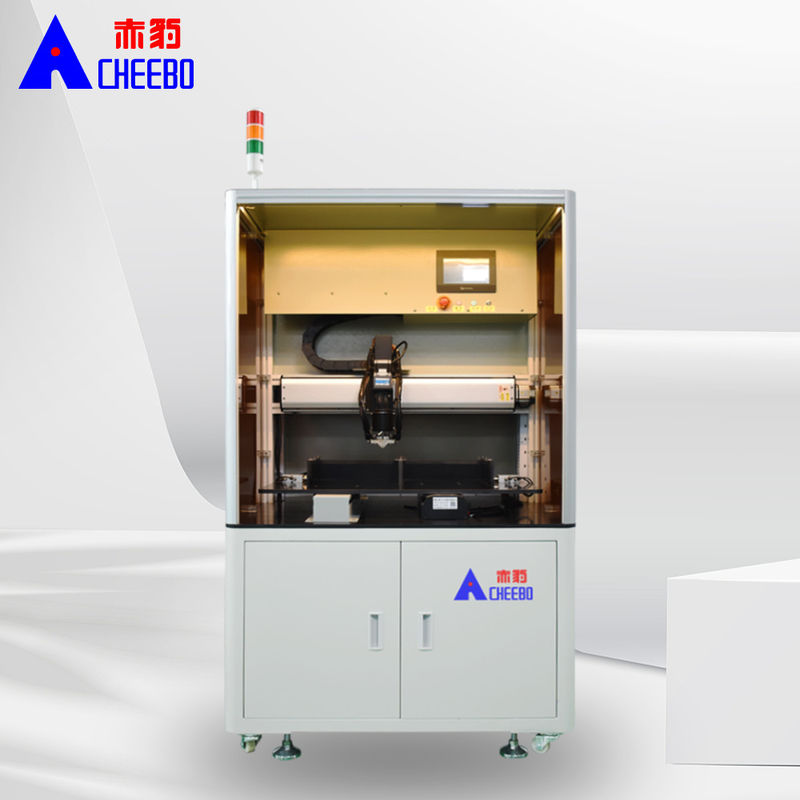

Equipment introduction

● Lithium battery pack spot welding machine, single sided automatic welding, modular design silent, stable, and efficient.


● Reinforced design, also suitable for automatic welding of protective plates in various battery pack schemes.


● Can achieve left and right platform operation, with no interference between the left and right platforms, or can only use a single platform.


● Automatic alarm for false welding and explosive welding equipment, manual adjustment for automatic zone repair welding and single point repair welding.


● Equipped with energy switching function, production counting function, welding needle compensation function, manual debugging function, etc.


● The welding direction can be adjusted according to the slot position of the battery pack nickel sheet, and the maximum rotation angle of the welding needle is 135 °, effectively avoiding welding errors caused by the inability to rotate the angle.


● Energy switching function, which can store 4 sets of energy modes, and automatically switch different welding energies for different materials.


● Production counting function, setting production quantity, completing automatic production shutdown welding needle compensation function, setting the number of welding needles, and automatically reminding for welding needle maintenance after reaching the number of times.


● Manual debugging function, which can fine tune the welding head and save the spot welding parameters for each point (for easy modification of the coordinates of the welding points), or use the one click calibration function for adjustment.


● Automatic batch spot welding has manual programming, CAD drawing, and spot welding path import functions, which can be quickly programmed. Easy to learn, ordinary workers are completely capable.


● The automatic battery pack spot welding machine adopts a 7-inch high-definition LCD touch screen, with a simple human-machine interface and convenient operation.


● The independently developed battery automatic spot welding system has multiple automated intelligent systems, making equipment setup and operation convenient, which helps to improve production efficiency.


● Adopting HIWIN module, with high accuracy, low noise, smooth sliding, and durability.


● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static.


● Imported acrylic protective plate, beautiful and generous, strong sense of science and technology, intuitive operation, improve production Factor of safety.



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding pressure 5KG/F Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding thickness 0.02-0.3MM
Electrode material Copper alumina Machine Dimensions 1680*1400*2000MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



Device action flow description



Cell/bracket/battery nickel piece loading fixture -- Place fixture to left platform induction position -- automatic spot welding of the



device is completed to send the fixture to the material retrieval position -- manual flip fixture -- Place the fixture to the right



platform induction position -- automatic spot welding of the device is completed to send the material retrieval position -- remove



the battery pack from the fixture -- for the next production cycle (the platform can be put in when the left platform is working) The



product, waiting for the platform welding to be completed, will automatically transfer to the right platform welding. When welding



the right platform, the left platform can replace the product, waiting for the right platform to complete the welding, will



automatically transfer to the left platform welding, in turn cycle)

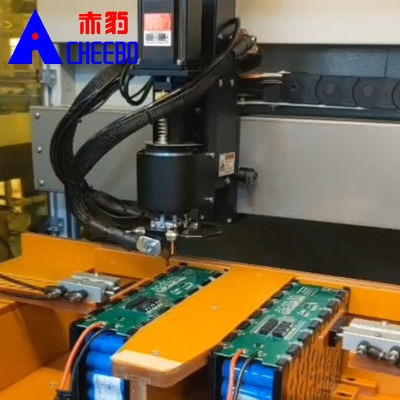

  1. Welding case





Continuous Mode Welding Battery Machine Battery Pack 18650 Nickel Plate Welding 0 Continuous Mode Welding Battery Machine Battery Pack 18650 Nickel Plate Welding 1 Continuous Mode Welding Battery Machine Battery Pack 18650 Nickel Plate Welding 2



  • Equipment details



 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Continuous Mode Welding Battery Machine Battery Pack 18650 Nickel Plate Welding 3

 2. Multi-function table

Worktable heightening design, can also be applied to a variety of pack scheme protection plate automatic welding, one machine dual-use, welding protection plate only need to replace the platform fixture. Dual platform design, left and right platform independent welding, non-interference, can also only use a single platform.

Continuous Mode Welding Battery Machine Battery Pack 18650 Nickel Plate Welding 4



 3. Cooling system:

Water circulation heat dissipation, instantaneous large current welding, welding head always maintain constant temperature, effectively reduce the loss of welding needle, improve the welding effect.



Continuous Mode Welding Battery Machine Battery Pack 18650 Nickel Plate Welding 5
