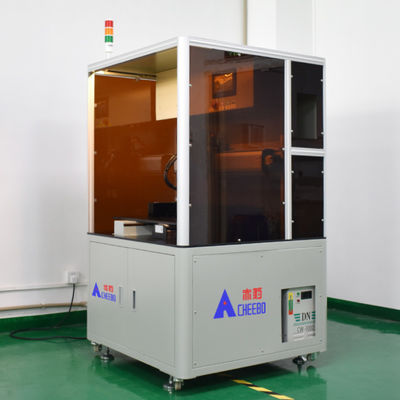

Auto Lithium Ion Battery Spot Welding Machine 4 Axis Precision Welding

Auto Lithium Ion Battery Spot Welding Machine 4 Axis Precision Welding

  • High Light

    Lithium Ion Battery Spot Welding Machine

    ,

    18650 Spot Welder With 4 Axis

    ,

    CNC 18650 Spot Welder

  • Product Name
    Standard Single Side Lithium Battery Spot Welding Machine
  • Dimensions
    1000*1400*1680mm
  • Usage
    Spot Welding
  • Control System
    PLC
  • Safety System
    Emergency Shutdown
  • Cooling System
    Water Circulation Cooling
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN5-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Month

Auto Lithium Ion Battery Spot Welding Machine 4 Axis Precision Welding

Auto Lithium Ion Battery Spot Welding Machine 4 Axis Precision Welding

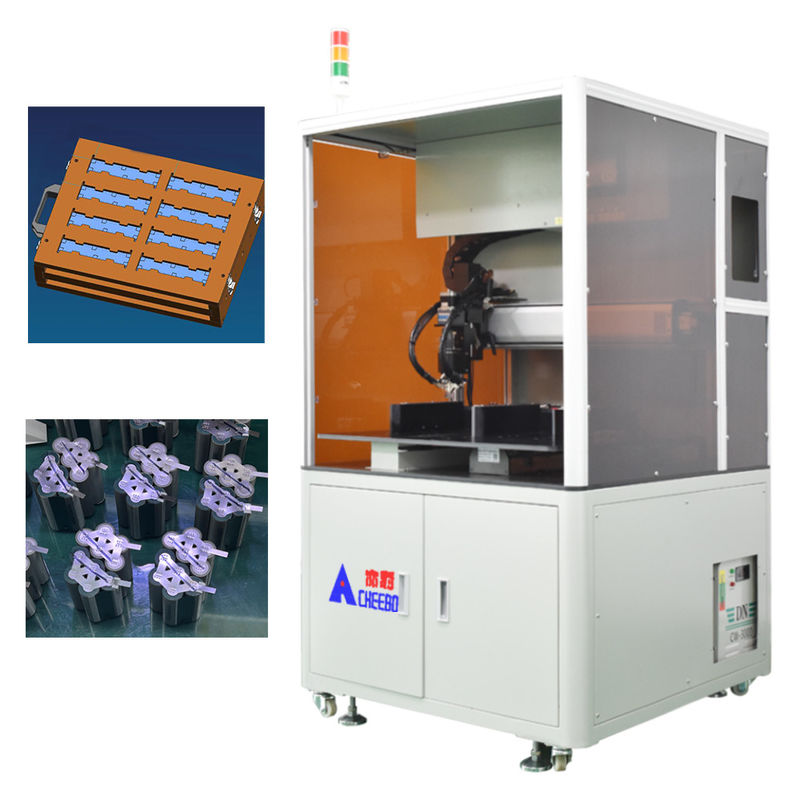

Equipment introduction



● Lithium battery pack spot welder, single side automatic welding, modular design is silent, stable and efficient.


● Strengthened design, also suitable for automatic welding of protection plates in various battery pack solutions.


● Left and right platform operation can be realized, and the left and right platforms do not interfere with each other, or only single platform can be used.


● Automatic alarm for false welding and fried welding equipment, manual adjustment for automatic area filler welding and single point filler welding.


● With energy switching function, production counting function, solder pin compensation function, manual debugging function, etc.


● The welding direction can be adjusted according to the slot of the nickel piece of the battery pack. The maximum rotation angle of the welding needle is 135°, effectively avoiding the welding error caused by the inability to rotate the angle.


● Energy switching function, 4 groups of energy modes can be stored, and different welding energy can be switched automatically for different materials.


● Production counting function, set the production quantity and automatically stop the needle compensation function when the production is finished, set the number of times to weld the needle, and automatically remind to maintain the needle after the number of times is reached.


● Manual debugging function can be used to fine tune the welding head and save the spot welding parameters for each spot (for easy modification of the coordinates of the welding spot), and can also be adjusted by using the one-kind correction function.


● Automatic batch spot welding has manual programming, CAD drawing, and spot welding path import functions for quick programming. Easy to learn and fully capable of ordinary workers.


● Automatic battery pack spot welder adopts 7-inch high-definition LCD touch screen, with simple human-machine interface and easy operation.


● Automatic battery spot welding developed independently with several automatic intelligent systems, easy to set up and run the equipment, which helps to improve production efficiency.


● Adopting HIWIN module with high precision, low noise, smooth sliding and durable.


● Aluminum alloy structure, electrostatic powder coating process, scratch-resistant, rust-proof and anti-static.


● Imported acrylic protection plate, beautiful and elegant, strong sense of technology, intuitive operation, improve the production safety factor.



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding pressure 5KG/F Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding thickness 0.02-0.3MM
Electrode material Copper alumina Machine Dimensions 1000*960*1580MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding




Device action flow description



Cell/bracket/battery nickel piece loading fixture -- Place fixture to left platform induction position -- automatic spot welding of the



device is completed to send the fixture to the material retrieval position -- manual flip fixture -- Place the fixture to the right



platform induction position -- automatic spot welding of the device is completed to send the material retrieval position -- remove



the battery pack from the fixture -- for the next production cycle (the platform can be put in when the left platform is working) The



product, waiting for the platform welding to be completed, will automatically transfer to the right platform welding. When welding



the right platform, the left platform can replace the product, waiting for the right platform to complete the welding, will



automatically transfer to the left platform welding, in turn cycle)



Function Introduction



 1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.



Auto Lithium Ion Battery Spot Welding Machine 4 Axis Precision Welding 0



 2. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.



Auto Lithium Ion Battery Spot Welding Machine 4 Axis Precision Welding 1



 3. Electric rotating welding head

The welding head can be welded by 135° rotation, suitable for special-shaped nickel sheet, and also has the function of anti-sticking needle.

The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.



Auto Lithium Ion Battery Spot Welding Machine 4 Axis Precision Welding 2



  1. Welding case



Auto Lithium Ion Battery Spot Welding Machine 4 Axis Precision Welding 3 Auto Lithium Ion Battery Spot Welding Machine 4 Axis Precision Welding 4 Auto Lithium Ion Battery Spot Welding Machine 4 Axis Precision Welding 5

FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
