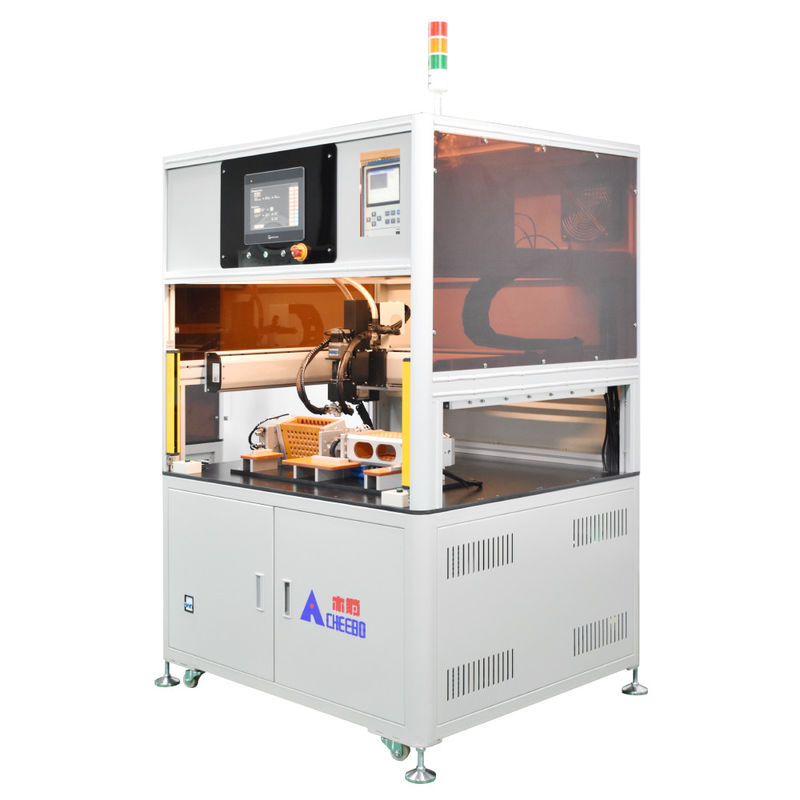

Single Automatic Battery Spot Welding Machine 1KW Power Nickel Plate Welding
● This lithium battery spot welder is a multi-axis control machine developed by modern automation experts, with precision transmission and motor control mechanism, self-propelled travel mechanism, and automatic production equipment for effective real-time control processing.
● It is suitable for fully automatic single-sided spot welding of 18650, 21700, 26650, 32700 and other cylindrical cell combinations.
● CBMO4-1710 Li-ion battery welding single-sided machine adopts the design of welding fixture which can be turned over automatically after the A side welding is finished, and it can be turned over to B side welding automatically without the need of turning over the fixture manually.

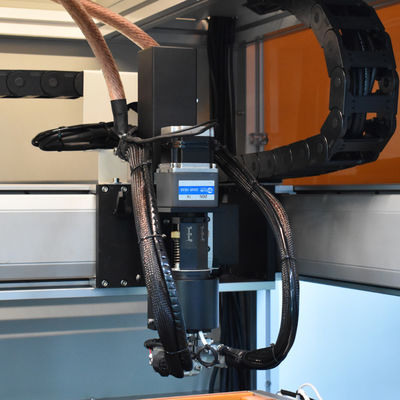

● CHEEBO battery core welding head automatic spot welder can rotate 135°, which is suitable for welding irregular shaped nickel pieces and effectively avoiding needle staining during welding.
● Grid protection device is installed on both sides to ensure the safe operation of the equipment.
● Fry welding and false welding equipment will automatically alarm, automatic area fill welding, single point fill welding manual adjustment.
● Using Taiwan silver wire guide module, high precision, low noise, smooth and durable sliding.
● Adopt Panasonic servo, fast welding speed and high precision.
● High-definition LCD touch screen, man-machine interaction interface, easy and convenient operation.
● Independent development of various automatic intelligent systems to facilitate equipment operation and help improve production efficiency.
● With energy switching function, production counting function, weld pin compensation function, manual debugging function, etc. It can assist in the intelligent operation of the equipment.
● Manual programming, CAD drawing, import of spot welding paths, and quick programming. Easy to learn and fully competent for production line workers.
● Aluminum alloy structure, electrostatic powder coating process, scratch resistant, rust proof and anti-static.
● Imported acrylic protection plate, beautiful and elegant, strong sense of technology, intuitive operation, improve production safety factor.
|
Comprehensive time limit
|
3200PCS/H
|
|
Equipment weight
|
350KG
|
|
Weld thickness
|
0.3mm(More than 0.2 nickel pieces need to be slotted and dotted)
|
|
Device power
|
220V50/60HZ
|
|
Equipment power
|
2KW (including power supply)
|
|
Equipment travel
|
170*100 (mm) about 45 18650 cells(One work station)
|
|
Power consumption
|
0.8KW in busy time, 0.2KW in idle time
|
|
Way of exercise
|
automatic continuous
|
|
Electrode material
|
Alumina copper
|
|
Cooling method
|
Forced water circulation cooling
|
|
Dimensions
|
1000*1200*1750(mm)
|
|
Application scenarios
|
Mass welding of cylindrical batteries, welding of special-shaped nickel sheets for power tools
|
1. Transistor welding power supply
Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.
2. Hd touch screen
Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.
3. Safety grating protection
Security grating protection is installed on both sides to prevent injury to personnel when the equipment is running. When the equipment is working, if there are items into the machine working area, the equipment will automatically stop.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Our products are sold all over the world, you can rest assured.
