● This lithium battery spot welder is a multi-axis control machine developed by modern automation experts, with precision transmission and motor control mechanism, self-propelled travel mechanism, and automatic production equipment for effective real-time control processing.
● It is suitable for fully automatic single-sided spot welding of 18650, 21700, 26650, 32700 and other cylindrical cell combinations.

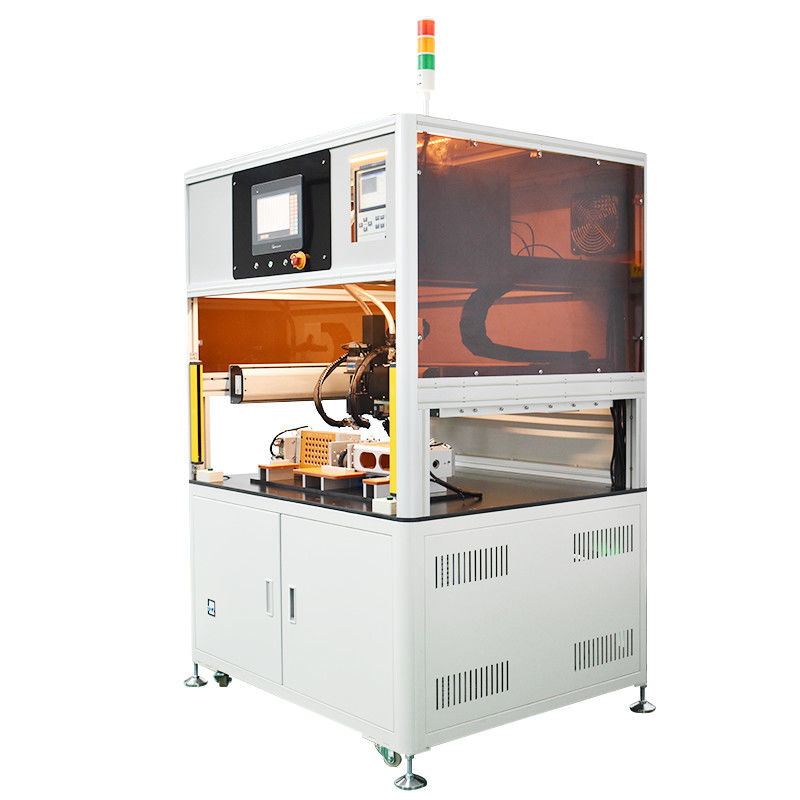

● CBMO4-1710 Li-ion battery welding single-sided machine adopts the design of welding fixture which can be turned over automatically after the A side welding is finished, and it can be turned over to B side welding automatically without the need of turning over the fixture manually.
● CHEEBO battery core welding head automatic spot welder can rotate 135°, which is suitable for welding irregular shaped nickel pieces and effectively avoiding needle staining during welding.
● Grid protection device is installed on both sides to ensure the safe operation of the equipment.
● Fry welding and false welding equipment will automatically alarm, automatic area fill welding, single point fill welding manual adjustment.
● Using Taiwan silver wire guide module, high precision, low noise, smooth and durable sliding.
● Adopt Panasonic servo, fast welding speed and high precision.
● High-definition LCD touch screen, man-machine interaction interface, easy and convenient operation.
● Independent development of various automatic intelligent systems to facilitate equipment operation and help improve production efficiency.
● With energy switching function, production counting function, weld pin compensation function, manual debugging function, etc. It can assist in the intelligent operation of the equipment.
● Manual programming, CAD drawing, import of spot welding paths, and quick programming. Easy to learn and fully competent for production line workers.
● Aluminum alloy structure, electrostatic powder coating process, scratch resistant, rust proof and anti-static.
● Imported acrylic protection plate, beautiful and elegant, strong sense of technology, intuitive operation, improve production safety factor.
|
Comprehensive time limit
|
3200PCS/H
|
|
Equipment weight
|
350KG
|
|
Weld thickness
|
0.3mm(More than 0.2 nickel pieces need to be slotted and dotted)
|
|
Device power
|
220V50/60HZ
|
|
Equipment power
|
2KW (including power supply)
|
|
Equipment travel
|
170*100 (mm) about 45 18650 cells(One work station)
|
|
Power consumption
|
0.8KW in busy time, 0.2KW in idle time
|
|
Way of exercise
|
automatic continuous
|
|
Electrode material
|
Alumina copper
|
|
Cooling method
|
Forced water circulation cooling
|
|
Dimensions
|
1000*1200*1750(mm)
|
|
Application scenarios
|
Mass welding of cylindrical batteries, welding of special-shaped nickel sheets for power tools
|
1. Precision servo welding head
The welding head can be rotated 135°. Suitable for all kinds of shaped nickel sheet, effectively prevent sticking needle and other bad welding phenomenon, welding head pressure can be adjusted.
2. Double station rotating platform

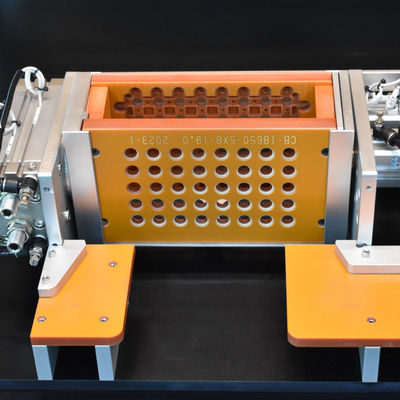

The fixture automatic rotating mechanism is adopted. After the welding of side A, it automatically rotates to welding of side B without manual turnover. Provide productivity.
3. Hd touch screen
Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.
