Lithium Automatic Battery Spot Welding Machine 26650 With Nickel Sheet

Lithium Automatic Battery Spot Welding Machine 26650 With Nickel Sheet

  • High Light

    Automatic Battery Spot Welding Machine 26650

    ,

    Spot Welding Machine With Nickel Sheet

    ,

    Lithium Spot Welding Machine 26650

  • Welding Pressure Control
    Pneumatic
  • Control System
    PLC
  • Welding Type
    Spot Welding
  • Welding Material
    Nickel Sheet
  • Product Name

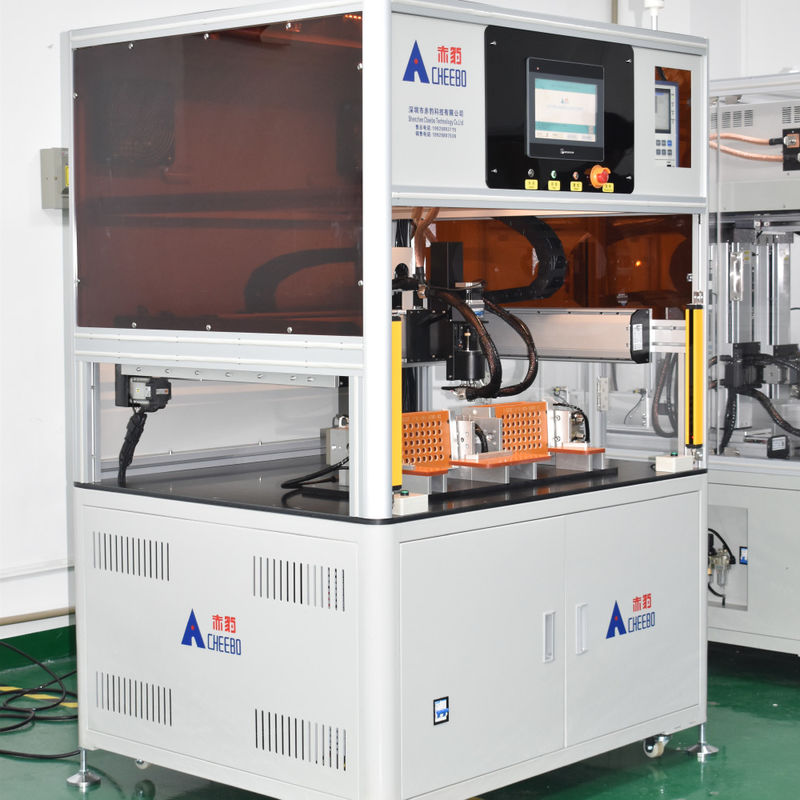

    Multi-function Single Side Double Station Spot Welding Machine
  • Usage
    Lithium Battery Pack Welding
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-1710
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Lithium Automatic Battery Spot Welding Machine 26650 With Nickel Sheet

Battery Pack Nickel Sheet Welding Automatic Lithium Battery Spot Welder


Application scope of the product



The equipment is suitable for fully automatic single-sided spot welding of 18650, 21700, 26650, 32700 and other kinds of cylindrical battery cell



combinations. It is suitable for the production of NB/Power Tool/Gardening Tool/High Power/Storage Power Station Battery/Electric



Motorcycle/Electric Vehicle and other modular lithium battery pack spot welding, and can be used with the lithium battery pack production line.


This equipment is a multi-axis control machine developed by modern automation expert technology, with precision transmission and motor control



mechanism, self-propelled travel mechanism, effective real-time control of the processing of automated production equipment.



Equipment introduction



● It adopts welding fixture design that can be automatically flipped. After the A-side welding is completed, it can be automatically flipped to the B-side welding without manually flipping the fixture.


● The welding head can be rotated 135°, which is suitable for welding irregularly shaped nickel sheets, effectively avoiding needle sticking phenomenon during welding.


● Install grille protection devices on both sides to ensure the safe operation of the equipment.


● The explosion welding and virtual welding equipment will automatically alarm, and the automatic area repair welding and single point repair welding will be manually adjusted.


● Using HIWIN module, high precision, low noise, smooth sliding and durable.


● Using Panasonic servo, fast welding speed and high precision.

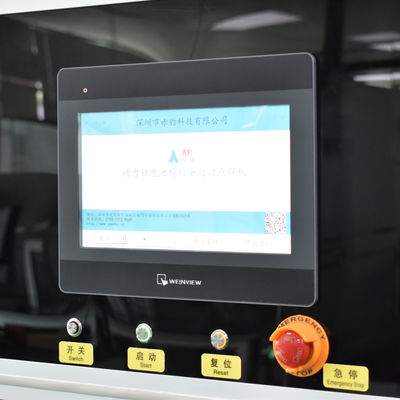

● High-definition LCD touch screen, man-computer interaction interface, simple and convenient operation.


● Independent development of various automatic intelligent systems, convenient equipment operation, help improve production efficiency.


● With energy switching function, production counting function, welding pin compensation function, manual debugging function, etc. It can assist in the intelligent operation of the equipment.


● Energy switching function, can store 4 groups of energy modes, different materials automatically switch different welding energy.


● Production counting function, set the production quantity, complete the output automatic shutdown of the welding pin compensation function, set the number of welding pins, and automatically remind the welding pin maintenance after the number of times.


● Manual debugging function, you can fine-tune the welding head for each point and save the spot welding parameters (it is convenient to modify the coordinates of the welding joint), or you can use the one-key correction function to adjust.


● Manual programming, CAD drawing, import spot welding path, and fast realization of programming. Easy to learn, production line workers are fully competent.


● Aluminum alloy structure, electrostatic powder spraying process, anti-scratch, anti-rust, anti-static.


● Imported acrylic protective plate, beautiful and generous, strong sense of science and technology, intuitive operation, improve production safety factor.



Debuggable item



1. Y axis, X axis, A axis, U axis coordinate parameters
2. Spot welding power supply parameter setting
3. Spot welding pressure, stroke adjustment
4. Spot welding times set
5. Needle service life setting
6. Spot welding spacing setting
7. Spot welding mode setting





Technical specification
Comprehensive time limit
3200PCS/H
Equipment weight
350KG
Weld thickness
0.3mm(More than 0.2 nickel pieces need to be slotted and dotted)
Device power
220V50/60HZ
Equipment power
2KW (including power supply)
Equipment travel
170*100 (mm) about 45 18650 cells(One work station)
Power consumption
0.8KW in busy time, 0.2KW in idle time
Way of exercise
automatic continuous
Electrode material
Alumina copper
Cooling method
Forced water circulation cooling
Dimensions
1000*1200*1750(mm)
Application scenarios
Mass welding of cylindrical batteries, welding of special-shaped nickel sheets for power tools



    1. Welding case



Lithium Automatic Battery Spot Welding Machine 26650 With Nickel Sheet 0 Lithium Automatic Battery Spot Welding Machine 26650 With Nickel Sheet 1 Lithium Automatic Battery Spot Welding Machine 26650 With Nickel Sheet 2

  •

Function Introduction



 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Lithium Automatic Battery Spot Welding Machine 26650 With Nickel Sheet 3

 2. Safety grating protection

Security grating protection is installed on both sides to prevent injury to personnel when the equipment is running. When the equipment is working, if there are items into the machine working area, the equipment will automatically stop.



Lithium Automatic Battery Spot Welding Machine 26650 With Nickel Sheet 4



 3. Welding head constant temperature cooling system

Water cooling cycle heat dissipation, instantaneous high current welding, always maintain a constant temperature, effectively reduce the loss of welding needle, reduce the impact on welding quality, improve the welding effect



Lithium Automatic Battery Spot Welding Machine 26650 With Nickel Sheet 5

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
